This StarTech 2 port triple monitor DisplayPort KVM switch is perfect for professionals and power users who need multi-computer control with advanced display capabilities. Our solution delivers:
-
Triple monitor support that enables seamless multi-display workflows
-
4K 60Hz UHD HDR resolution for exceptional visual quality and detail
-
DisplayPort connectivity optimization ensuring professional-grade performance
-
USB 3.0 high-speed data transfer for modern peripheral compatibility
Key Features
-
2-port KVM functionality to control two computers from one workstation
-
Triple DisplayPort outputs supporting up to 3 monitors simultaneously
-
4K 60Hz UHD resolution with HDR support for stunning visuals
-

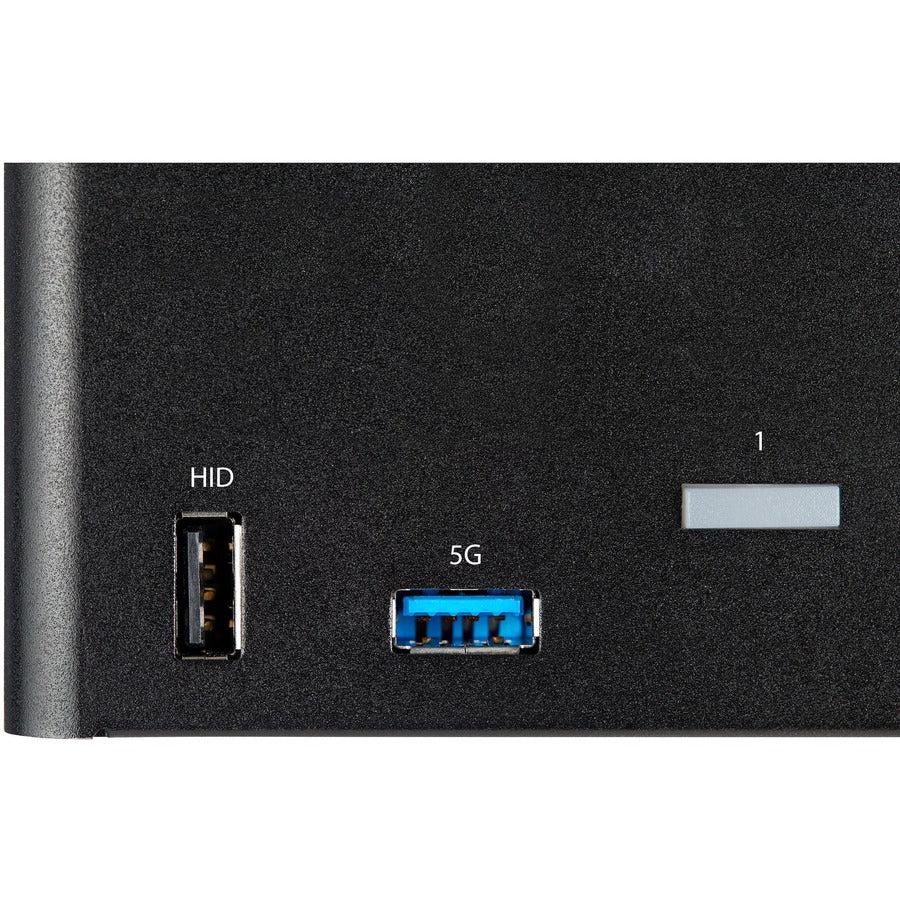

USB 3.0 hub for high-speed peripheral connectivity
-

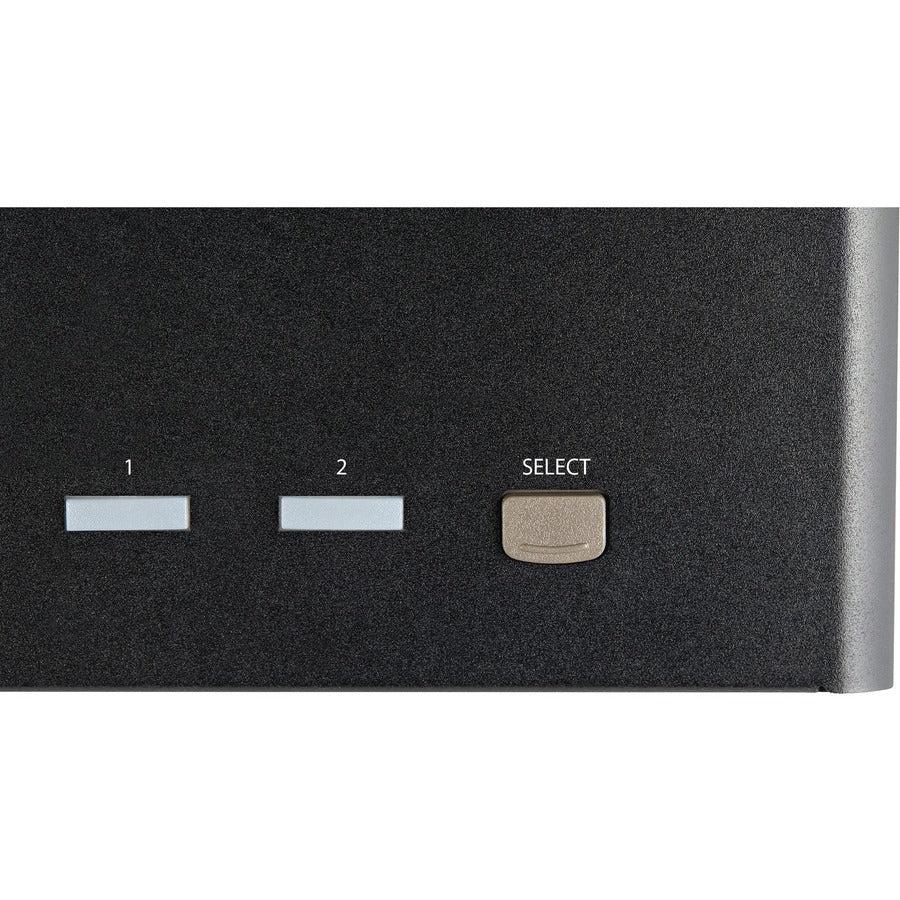

Hotkey switching for instant computer selection
-
Audio switching with microphone and speaker support
-
EDID emulation for seamless display recognition
-
Wide compatibility with Windows, macOS, and Linux systems

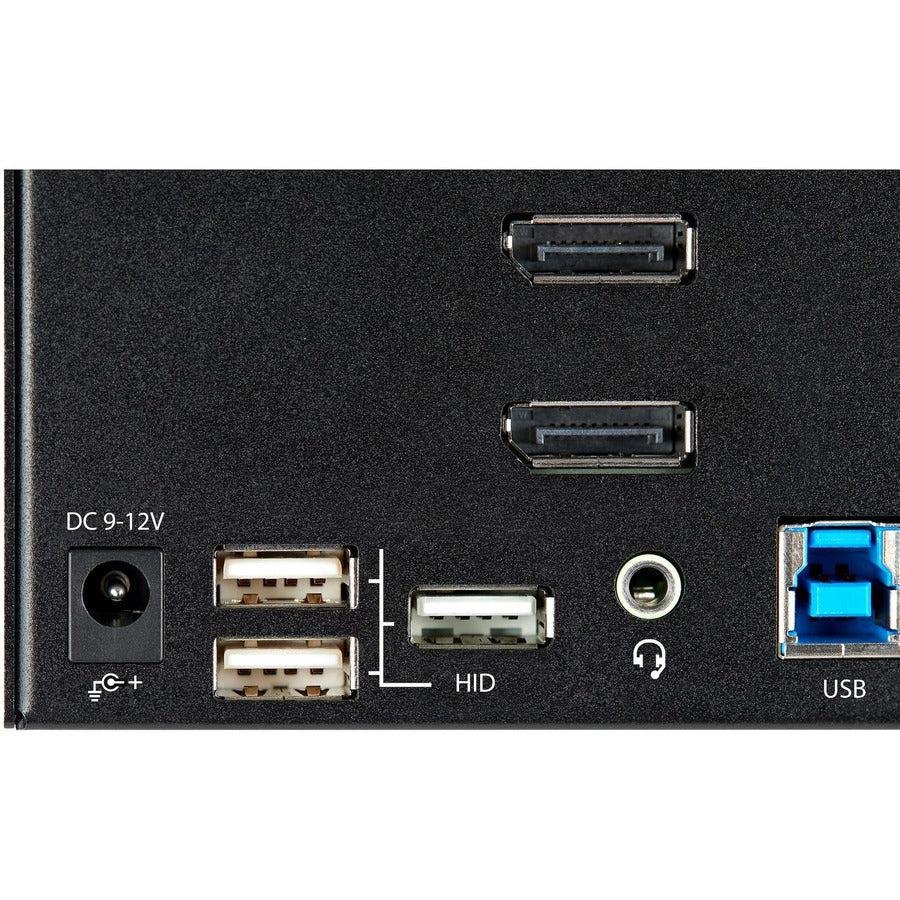

Technical Specifications
| Manufacturer |
StarTech.com |
| Model Number |
2 Port Triple Monitor DisplayPort KVM |
| Type |
2 Port Triple Monitor DisplayPort KVM Switch |
| Computer Ports |
2 systems (DisplayPort + USB) |
| Monitor Support |
Up to 3 monitors per system |
| Video Resolution |
4K 60Hz (3840 x 2160) UHD |
| HDR Support |
Yes (HDR10) |

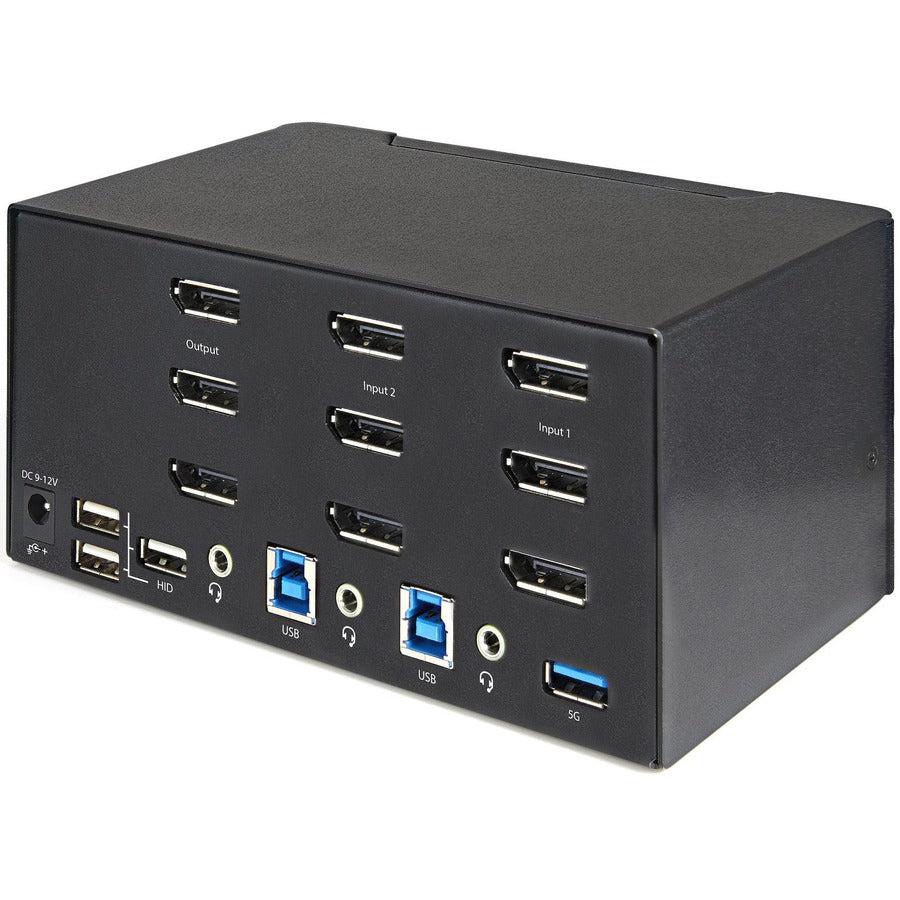

| Display Outputs |
3 x DisplayPort 1.4 |
| Display Inputs |
6 x DisplayPort (3 per computer) |
| USB Ports |
4 x USB 3.0 Type-A |
| USB Data Rate |
5 Gbps (USB 3.0 SuperSpeed) |
| Audio Support |
3.5mm microphone and speaker |
| Switching Method |
Push button, hotkey, IR remote |
| EDID Learning |
Yes, for each monitor |
| Power Requirements |
External 12V DC adapter (included) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Dimensions |
13.4" x 7.9" x 1.8" (340 x 200 x 45 mm) |
| Weight |
4.4 lbs (2 kg) |
| Compatible Systems |
Professional workstations, trading desks, design studios, control rooms |
Frequently Asked Questions
Q: What makes this KVM switch ideal for professional multi-monitor setups?
A: The StarTech triple monitor DisplayPort KVM supports up to 3 monitors per system at 4K 60Hz UHD HDR resolution, making it perfect for financial trading, CAD design, video editing, and other professional applications requiring extensive screen real estate and exceptional visual quality.
Q: How does the 4K 60Hz UHD HDR support benefit users?
A: The 4K 60Hz UHD resolution with HDR10 support delivers crisp, detailed images with enhanced color accuracy and contrast, essential for professional graphics work, medical imaging, and applications where visual precision is critical.
Q: What are the advantages of USB 3.0 connectivity?
A: The USB 3.0 hub functionality provides 5 Gbps data transfer speeds, enabling fast file transfers and supporting high-bandwidth peripherals like external drives, cameras, and other professional equipment without performance degradation.
Q: How flexible is the switching between computers?
A: This 2 port KVM switch offers multiple switching methods including push-button, hotkey commands, and IR remote control, allowing users to seamlessly switch between systems without interrupting workflow or requiring physical cable changes.
Q: Does this KVM support different operating systems?
A: Yes, the DisplayPort KVM switch provides broad compatibility with Windows, macOS, and Linux systems, making it ideal for mixed computing environments and cross-platform development workflows.
Q: What is EDID emulation and why is it important?
A: EDID emulation ensures that each computer maintains proper display settings and recognition even when switched away, preventing resolution changes, desktop rearrangement, and ensuring consistent multi-monitor KVM performance across all connected displays.
StarTech 2-port triple monitor DisplayPort KVM switch with 4K 60Hz UHD HDR, USB 3.0 connectivity, and professional multi-computer control capabilities.
