StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps
StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext. Host interface: PCIe, Output interface: SATA. Certification: CE, FCC, REACH. Chipset: ASMedia - ASM1061, Logical block addressing (LBA) support: 48 bit. Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 92 mm, Depth: 121 mm, Height: 20 mm
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot

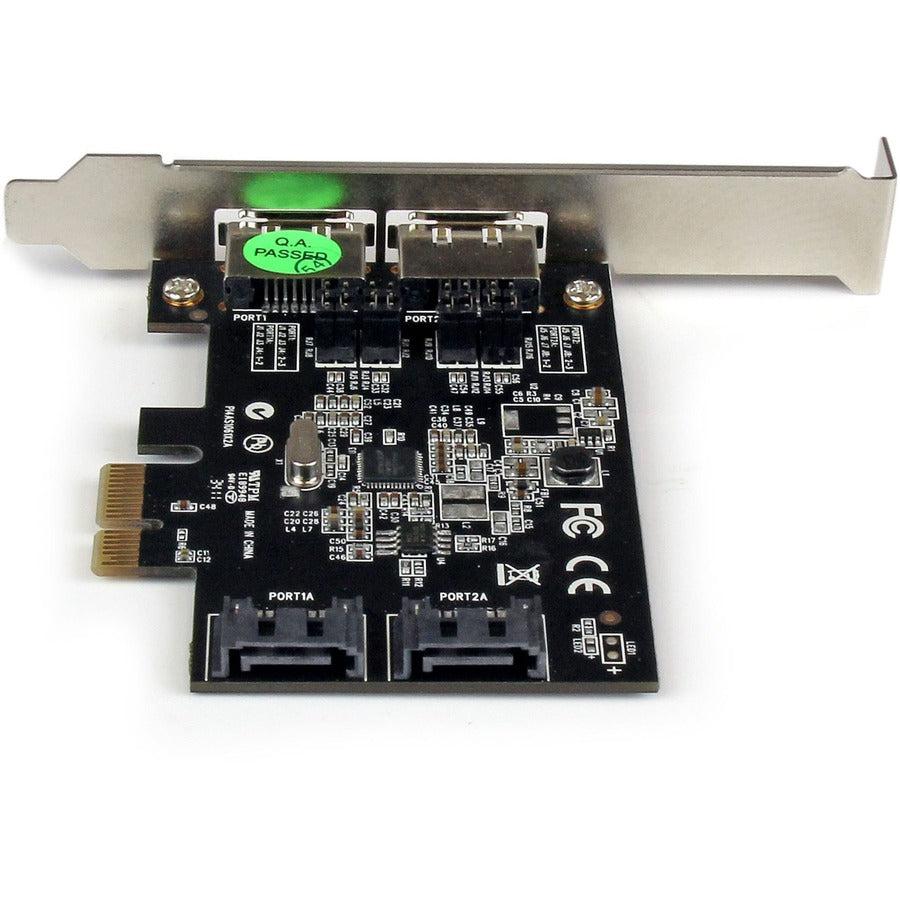

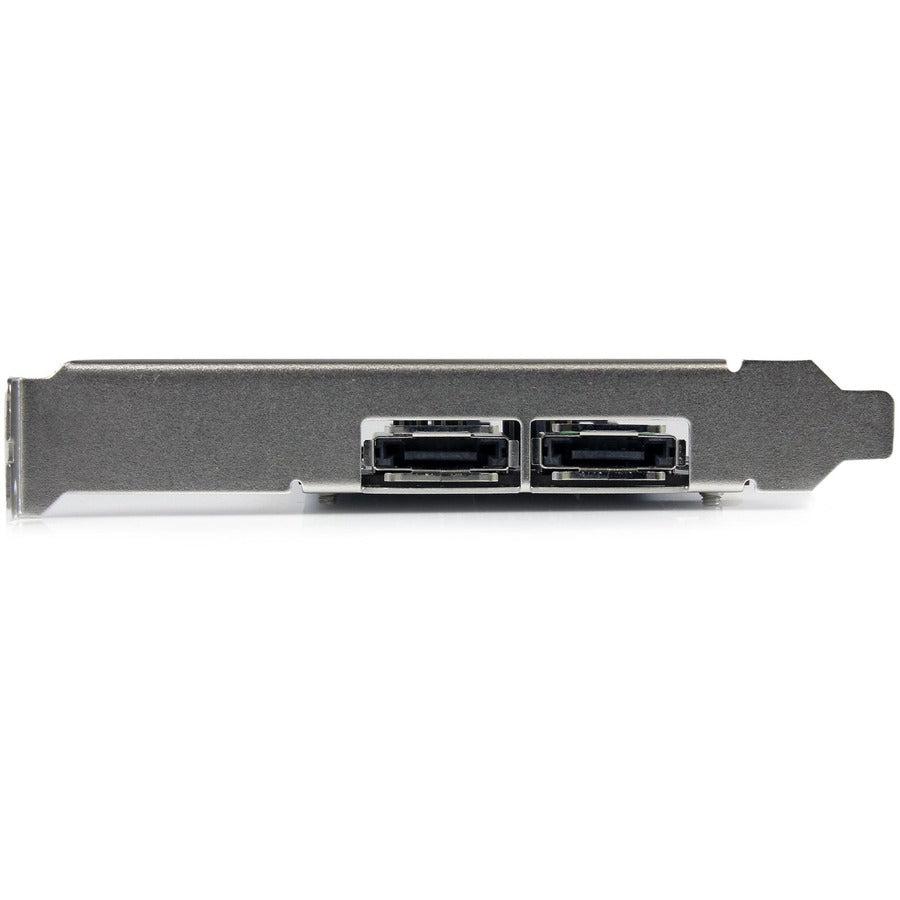

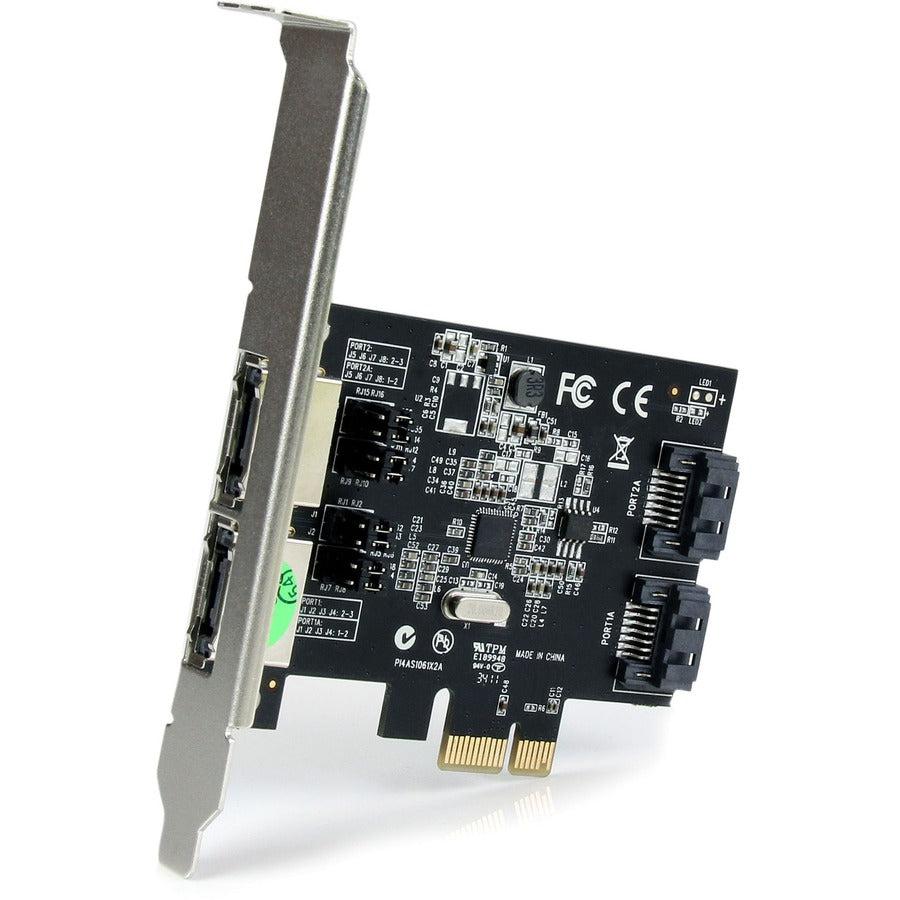

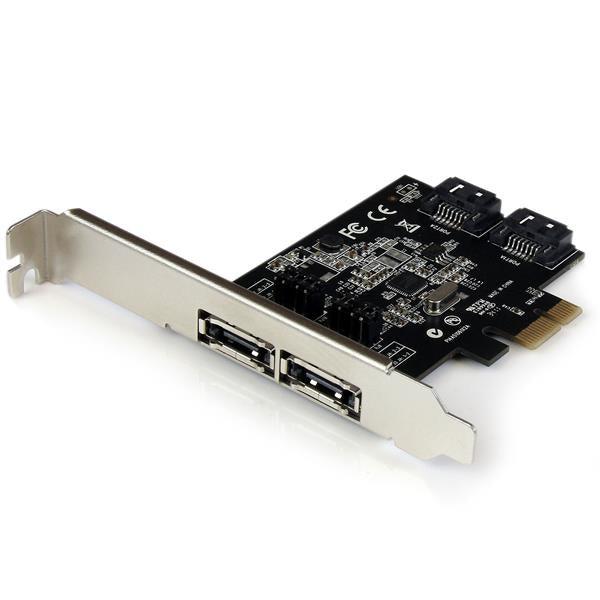

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
The StarTech.com Advantage
- This PCIe SATA controller card has two SATA channels that can be independently switched between the internal or external (eSATA) ports as needed - This versatile add-in card offers SATA III connectivity (6Gbps), while remaining backward compatible with SATA I (1.5Gbps) and II (3Gbps) device connections, which helps eliminate the expense of having to upgrade drives - Includes both a full and low profile/half-height bracket for installation into any size of desktop computer
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
PEXESAT322I
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
PCIe SATA Controller
Product Type
SATA Controller
UPC
065030848428
Height
0.8"
Width
3.6"
Weight (Approximate)
1.70 oz
Miscellaneous
Package Contents
PCIe SATA Controller
SATA Cable
Low Profile Bracket
Driver CD
Instruction Manual
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
2 Year
