Startech.Com 2-Port Pci Express 2.0 Sata Iii 6Gbps Raid Controller Card With 2 Msata Slots And Hyperduo Ssd Tiering

StarTech.com 2 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card w/ 2 mSATA Slots & HyperDuo SSD Tiering - PCIe SATA 3 Controller

StarTech.com 2-Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with 2 mSATA Slots and HyperDuo SSD Tiering. Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III, Host interface: PCI Express x4. RAID levels: 0,1,JBOD, Data transfer rate: 6 Gbit/s, Chipset: Marvell - 88SE9230. Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise..., Mac operating systems supported: Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012. Width: 20 mm, Depth: 125 mm, Height: 120 mm. PCI Card form factor: Full-height (low-profile), Maximum supported storage capacity: 4 TB

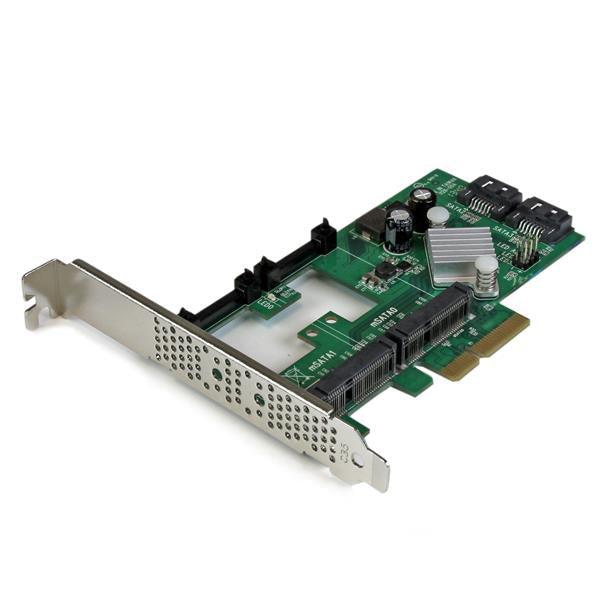

The PEXMSATA3422 PCI Express SATA Card helps you improve the overall speed and storage capacity of your computer by giving you multiple 6 Gbps SATA connections for connecting high-performance SSDs (Solid State Drives) and hard drives in a HyperDuo RAID array. Now, you can easily add two mSATA slots and two SATA III ports to your computer through a single PCIe x4 slot.

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)

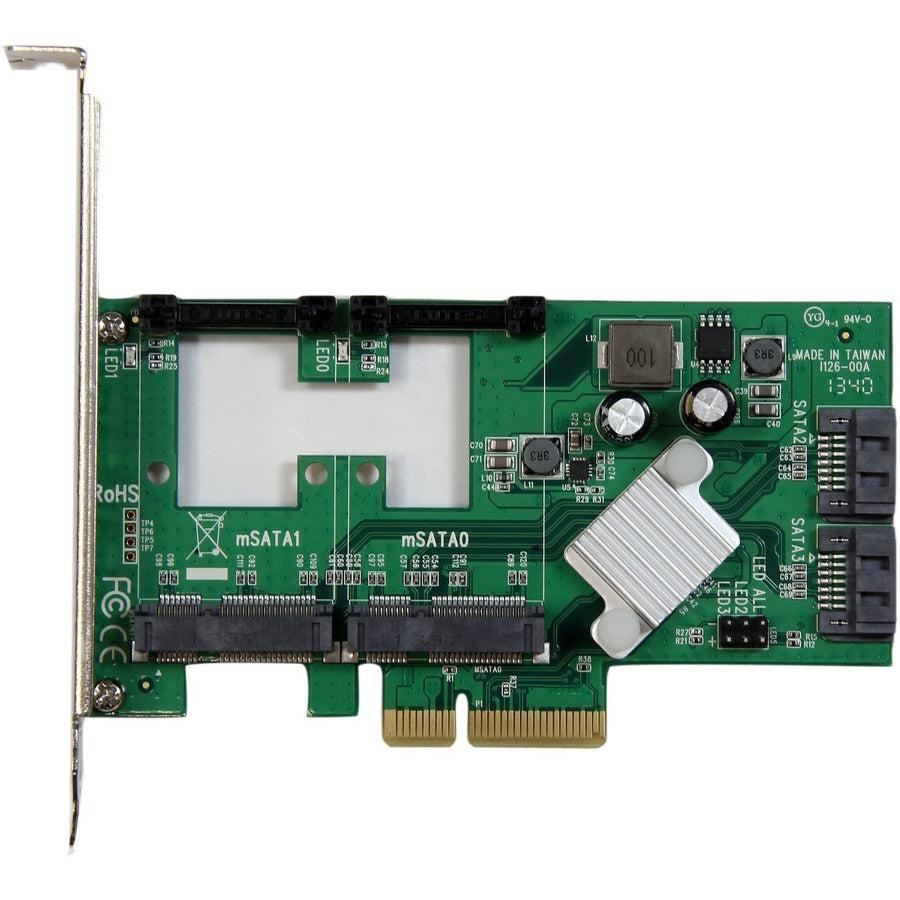

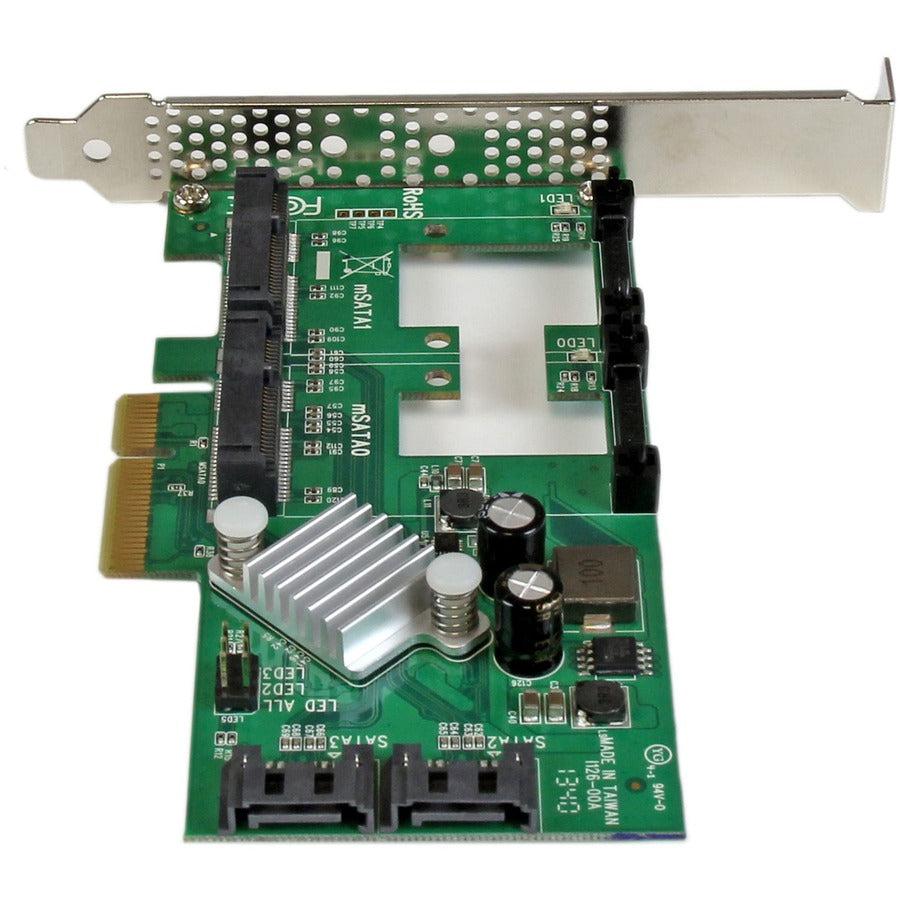

This versatile RAID controller card helps to relieve the internal space constraints often associated with multi-drive configurations by letting you install two mSATA SSDs directly to the card via convenient, latching slots. With dual mSATA slots, as well as two internal SATA ports, the card offers an effective hardware RAID solution, with native RAID (0, 1) support.

The PCIe SATA controller also offers Port Multiplier (PM) support, so you can connect multiple SATA drives to just one port, for a total of 7 drives (up to 4 drives through PM on one port, plus a single drive to the other SATA port and two mSATA slots).

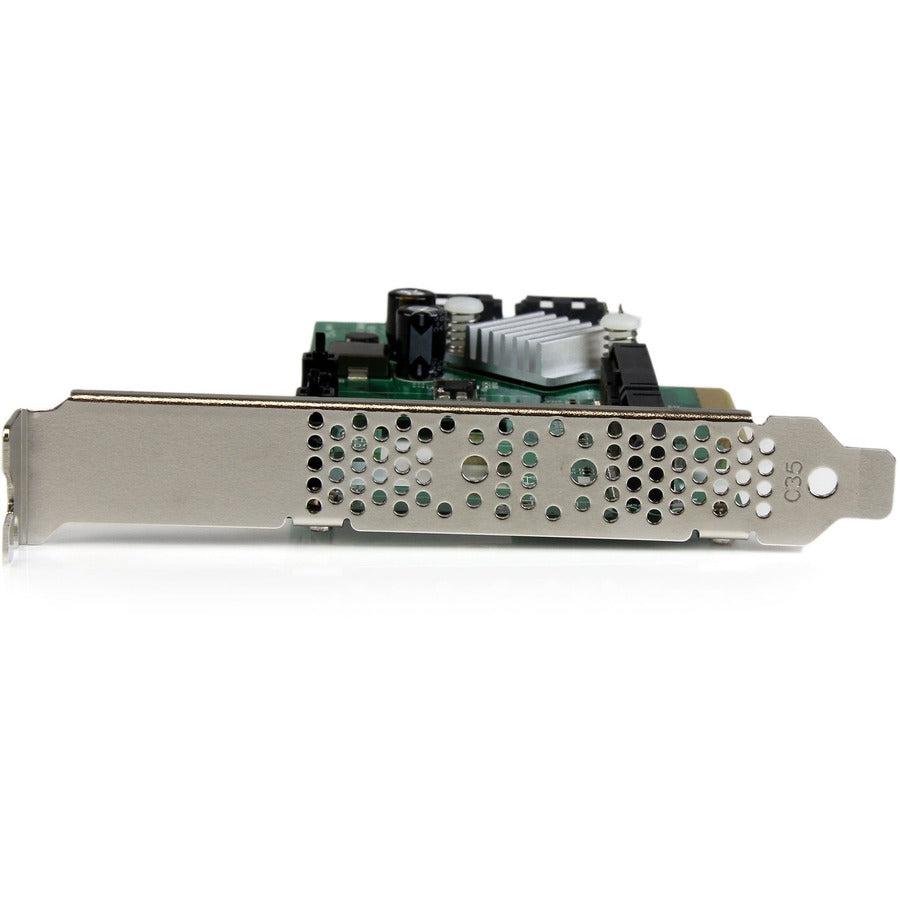

For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Get the best of both worlds by combining SSD performance with standard HDD capacity, through HyperDuo technology
- Maximize your system capabilities with 2 internal mSATA SSD slots and SATA III connection speeds
- Increase your storage capacity and connect up to 7 hard drives through Port Multiplier
