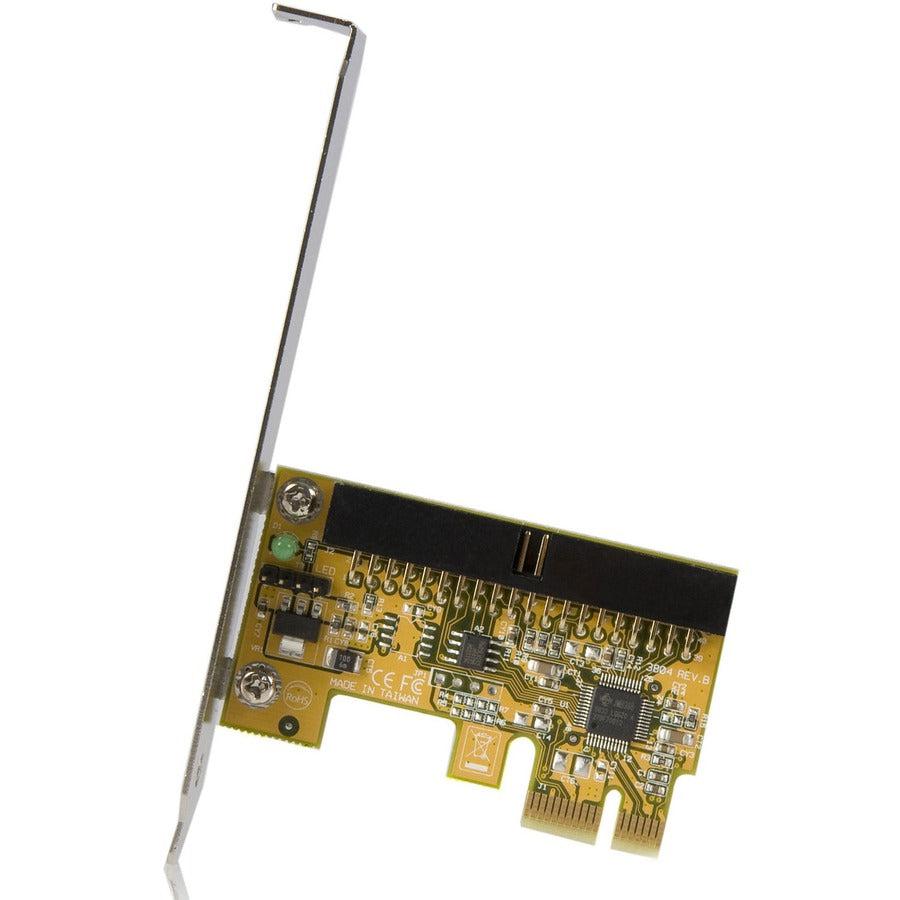

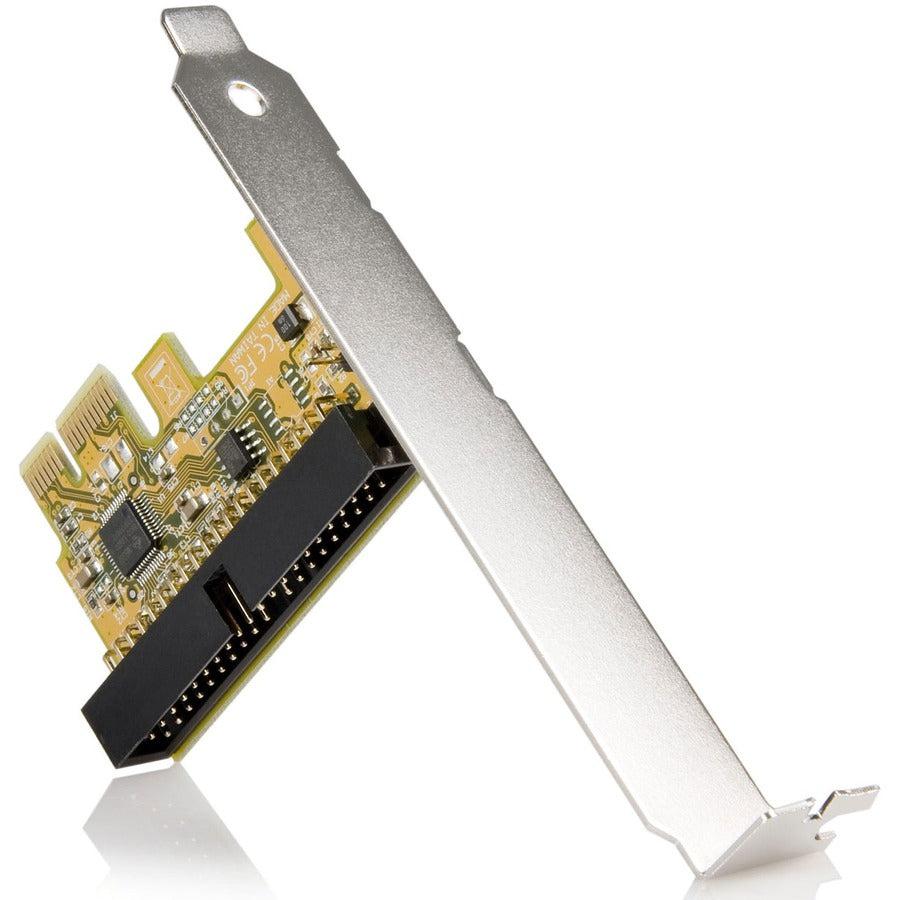

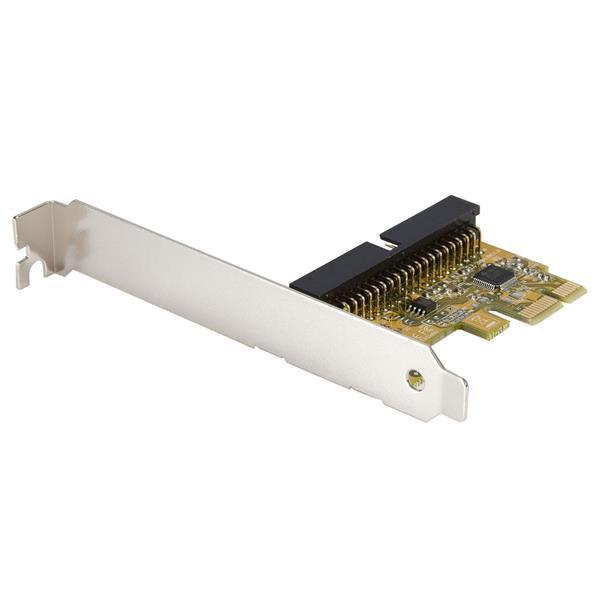

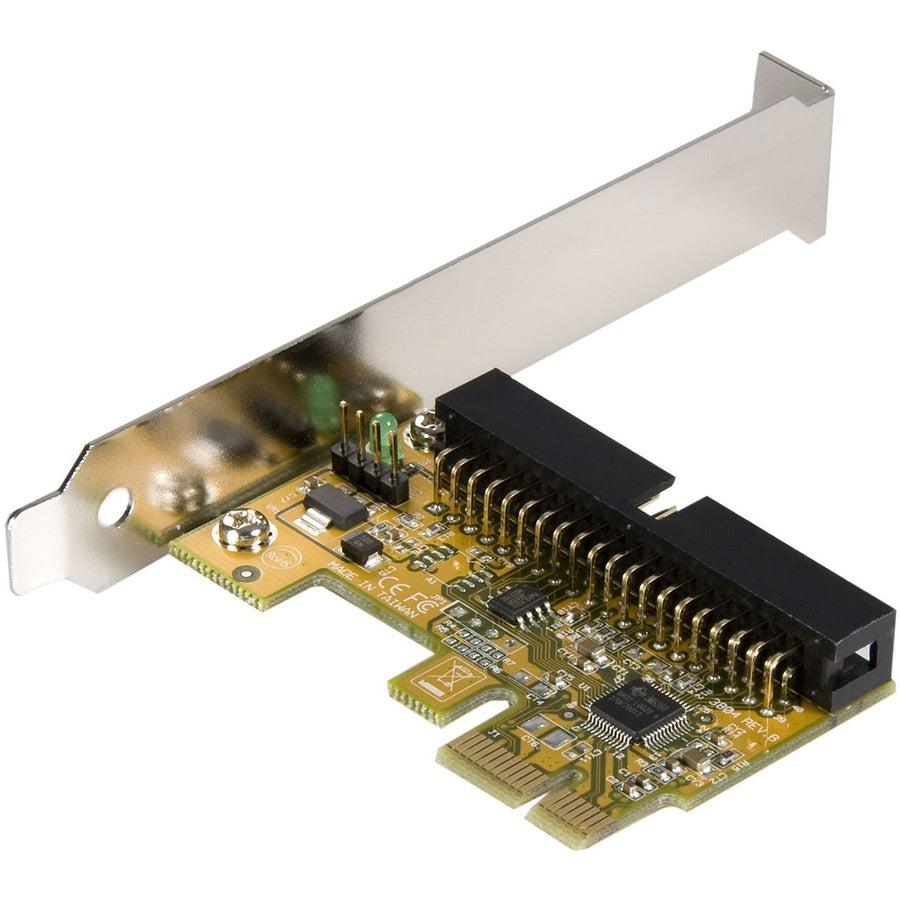

StarTech.com 1 Port PCI Express IDE Controller Adapter Card

StarTech.com 1 Port PCI Express IDE Controller Adapter Card. Host interface: PCIe, Output interface: IDE/ATA. Logical block addressing (LBA) support: 48 bit. Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise..., Server operating systems supported: Windows Server 2008 R2,Windows Server 2012. Package width: 165 mm, Package depth: 230 mm, Package height: 42 mm

Add a 2-channel IDE port to a computer through a PCI Express slot

This PCI Express IDE Controller Adapter Card provides a cost-effective way to use legacy drives with modern computers, by converting a PCI Express port into an IDE port.

Providing data burst transfer rates of up to 133MBps and support for PIO 0/1/2/3/4 and UDMA 33/66/100/133 operating modes, the IDE controller card offers an efficient way to add an IDE channel with support for two IDE drives on the same channel.

A complete dual profile solution, the PCI Express IDE controller card provides both standard and low profile brackets for adapting to slimline or small form factor system applications.

The StarTech.com Advantage

- 2-channels support two IDE drives simultaneously with support for UDMA 6 transfer mode
- Support for 48-bit LBA for compatibility with high capacity hard drives over 137 GB
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
