StarTech.com 1-Port Parallel PCIe Card - PCI Express to Parallel DB25 Adapter Card - Desktop Expansion LPT Controller for Printers, Scanners & Plotters - SPP/ECP - Standard/Low Profile. Host interface: PCIe, Output interface: Parallel, Expansion card standard: PCIe 1.0a. Product colour: Black, Steel, Mean time between failures (MTBF): 26297 h. Chipset: PLX/Oxford - OXPCIe952. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 110 mm, Depth: 210 mm, Height: 120 mm

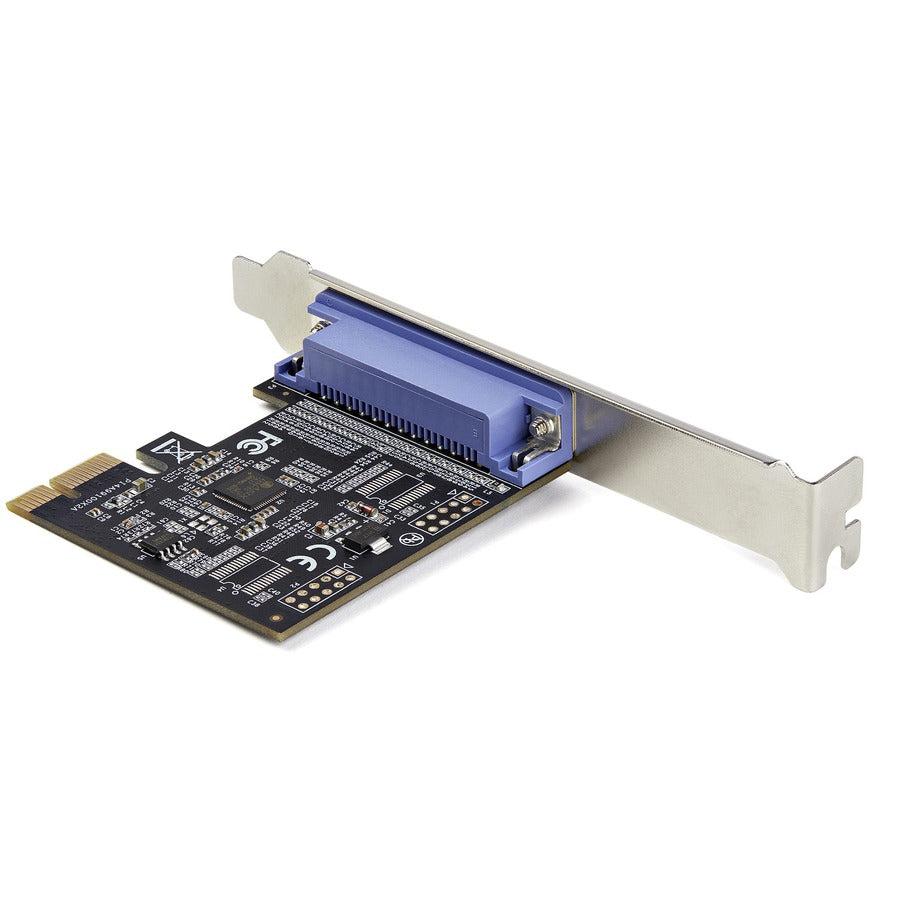

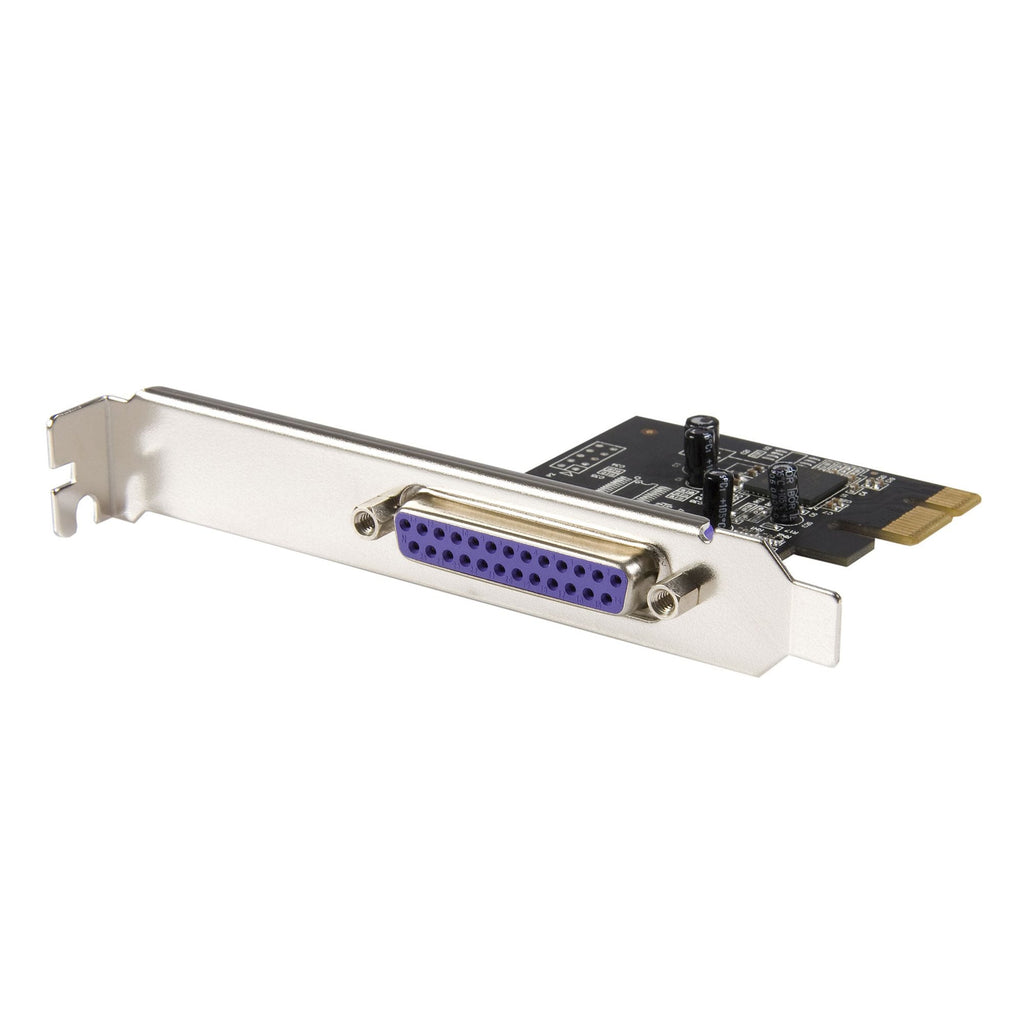

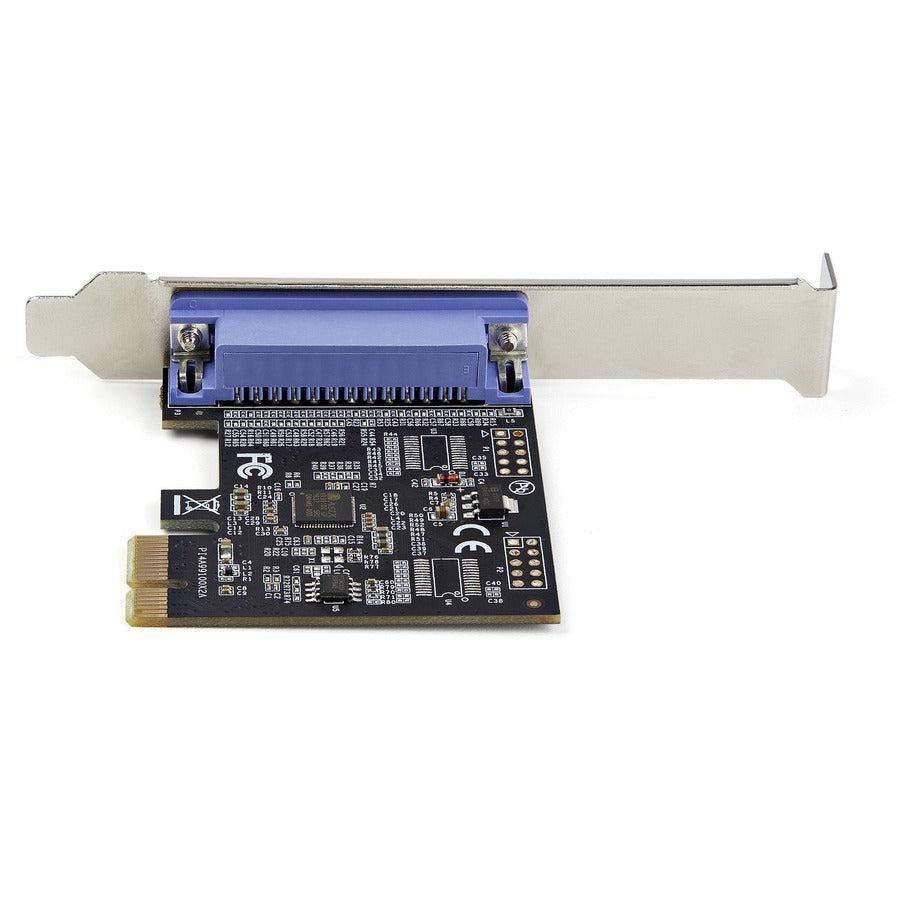

This PCIe Parallel controller card installs into an available PCI-Express x1 slot in your computer and enables you to add DB25 parallel communication port to your system.
Adds a Parallel Port to Your Desktop Computer
The controller card features an Asix AX99100 chip and enables you to connect a DB25 device to your desktop computer. The parallel port port is ideal for connecting printers, scanners, plotters, point-of-sale terminals, PLCs, scientific sensors, medical equipment or oscilloscopes. The card can also be used in factories, to control or automate equipment. The parallel (LPT) port supports SPP/Byte/Nibble/ECP modes and is compatible with PCI Power Management 1.2 and IEEE 1284 for speeds up to 2.5Mbps.
Wide Installation Compatibility

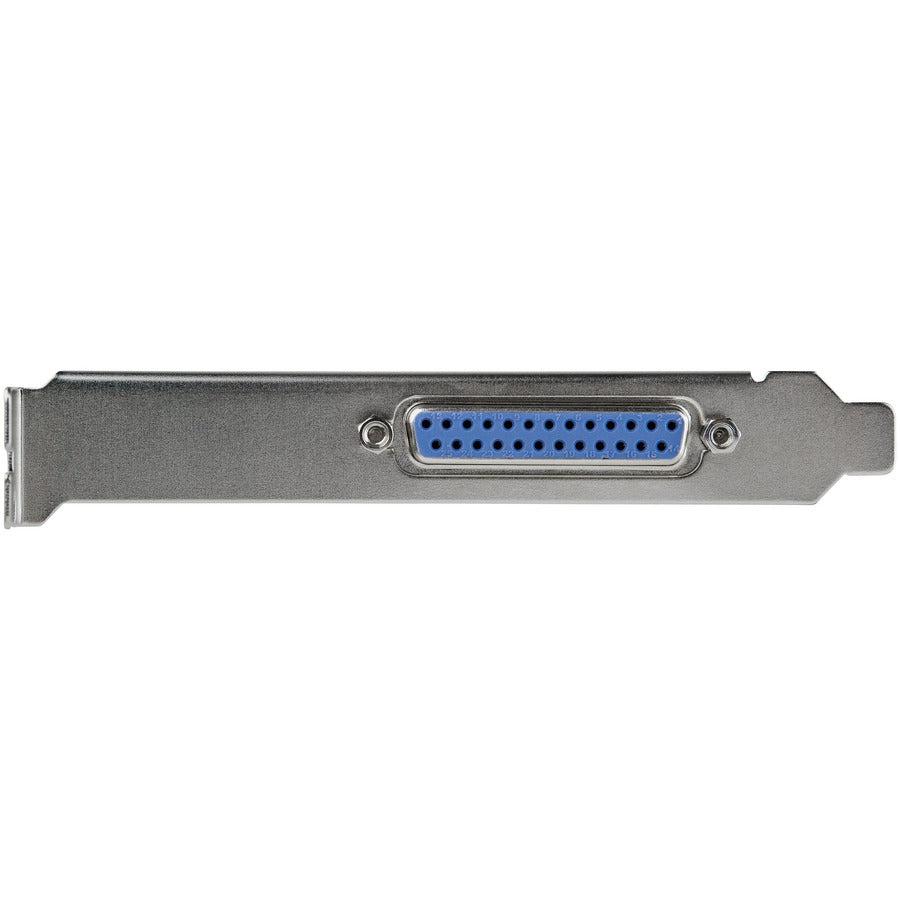

This add-on card includes both full-profile and low-profile installation brackets (full-profile bracket pre-installed) ensuring you can install it into either a full or low-profile PCIe 2.0 x1 slot (backward compatible with PCIe 1.1). For wide platform support the card is compatible with Windows (XP or higher), Windows Server (2003 or higher), and Linux (2.6.X or higher).
PEX1P2 is backed by a StarTech.com lifetime warranty with free 24/5 multi-lingual North American based technical support. StarTech.com has been the IT professionals' choice for over 30 years.
The StarTech.com Advantage
- 1-PORT PARALLEL PCIe CARD: Using a 1x PCI Express 2.0 Gen 1 slot, add a DB25 parallel communications port to your computer; Installs in full/standard or low profile PCIe cards slots (brackets incl.); Latest version of our popular parallel card PEX1P - TECH SPECS: Parallel port LPT controller card supports SPP/Byte/Nibble/ECP modes - Compatible with IEEE 1284
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
PEX1P2
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
1-Port Parallel PCIe Card
Product Type
Parallel Adapter
UPC
065030891400
Height
0.7"
Width
2.9"
Weight (Approximate)
1.59 oz
Miscellaneous
Package Contents
1-Port Parallel PCIe Card
Full Profile Bracket
Low Profile Bracket
Quick Start Guidel
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
