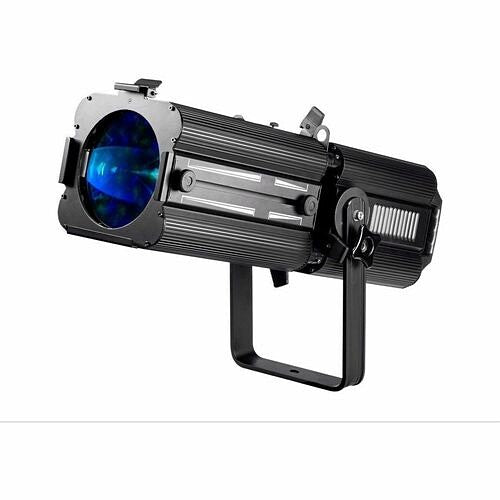

Stage Right by Monoprice 180W RGBW COB LED DMX Ellipsoidal Stage Light
The Stage Right 180W RGBW COB LED DMX ellipsoidal delivers professional-grade theatrical lighting with precision beam control and dynamic color mixing. Featuring a powerful 180W RGBW COB LED engine and an adjustable 17–50-degree beam angle, this DMX ellipsoidal spotlight is engineered for theaters, concert venues, studios, and live event productions. With manual zoom adjustment, four independently controlled shutters, and 9-channel DMX512 integration, you get both manual precision and automated lighting control in one compact fixture. Built-in strobe, fade, and auto programs provide creative flexibility, while slave mode configuration enables seamless multi-light synchronization.
Key Features
- 180W RGBW COB LED with full-spectrum color mixing and smooth dimming
- Adjustable 17–50-degree beam angle for variable throw distances and coverage
- Manual zoom and focus control for precise beam shaping
- Four independently adjustable shutters for custom beam masking
- 9-channel DMX512 control with dimming and color control
- Built-in strobe, fade, and auto programs for dynamic effects
- DMX slave configuration for synchronized multi-fixture setups
- Compact ellipsoidal design for theater, concert, and event applications
- Professional-grade construction for touring and permanent installations
Technical Specifications
| Specification |
Details |
| Manufacturer |
Monoprice |
| Part Number |
612754 |
| Light Source |
180W RGBW COB LED |
| Beam Angle |
17–50 degrees (adjustable) |
| Beam Control |
Manual zoom, focus, and four independent shutters |
| DMX Channels |
9-channel DMX512 |
| Control Modes |
DMX master, DMX slave, built-in programs |
| Built-in Programs |
Strobe, fade, auto |
| Color Output |
Full RGBW spectrum with smooth dimming |
| Fixture Type |
Ellipsoidal stage light |
Frequently Asked Questions
What is a DMX ellipsoidal stage light used for?
A DMX ellipsoidal is a precision theatrical lighting fixture designed for spotlighting actors, highlighting set elements, and creating dramatic lighting effects. The adjustable beam angle and shutter control allow operators to shape light precisely, making it essential for theater productions, concerts, and professional events.
Can I use this 180W RGBW COB LED ellipsoidal without DMX control?
Yes. The Stage Right ellipsoidal features built-in programs including strobe, fade, and auto modes that operate independently of DMX. You can use manual controls for zoom and shutter adjustment, or enable the built-in programs for automated lighting effects without external DMX equipment.
What does adjustable 17–50 degree beam angle mean?
The adjustable beam angle allows you to control the spread of light from a narrow 17-degree spot (concentrated, long-throw) to a wider 50-degree flood (dispersed, short-throw). This flexibility lets you adapt the fixture to different venue sizes and lighting positions without repositioning the light.
How do the four independent shutters improve beam control?
The four independently adjustable shutters let you mask and shape the beam edges precisely, creating custom beam patterns, sharp edges, or gradual falloff. This is critical for theatrical applications where you need to isolate light on specific stage areas without spill.
