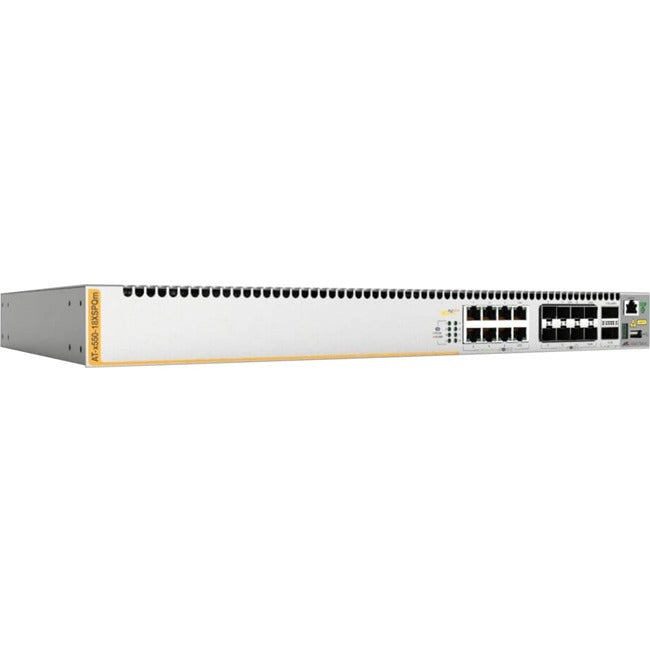

Allied Telesis x550-18XSPQm Layer 3 Switch
Allied Telesis x550 switches are high performing and feature-rich, making them the ideal choice for today's networks. They offer a range of versatile solutions for many different Enterprise applications.
With a variety of models-featuring 16 x 1G/10G copper ports or 16 x 1G/10G SFP+ slots, or a mix of both, alongside two 40G uplinks and the power of Allied Telesis Virtual Chassis Stacking (VCStack™)-the x550 Series is ideal for the network core, and demanding distribution applications.
Powerful network management
Allied Telesis Autonomous Management FrameworkTM (AMF) automates many everyday tasks including configuration management, to ease the workload of modern converged networks. The entire network can be managed as a single virtual device with powerful centralized features.
Network expansion is effortless with plug-and-play simplicity, and network node recovery is fully zero-touch. AMF Guestnode allows third party devices, such as IP phones and security cameras, to be part of an AMF network.
Resiliency
Converging network services means increasing demand for highly available networks with minimal downtime. VCStack, in conjunction with link aggregation, provides a network with no single point of failure, and provides access application resiliency.
Ethernet Protection Switched Ring (EPSRing™), and the standards-based G.8032 Ethernet Ring Protection, ensure distributed networks have highspeed access to online resources and applications.
The x550 Series can form a VCStack of up to four units for enhanced resiliency and simplified device management. Stacking links can use either the 10G or 40G ports, so the stack can be configured to suit specific needs. Stack without the need for special cables using the 10G RJ-45 copper ports-a simple patch cable is all that's required.
Long distance stacking (VCStack LD), which enables stacks to be created over long distance fiber links, combines with full EPSRing support to make the x550 Series the perfect choice for distributed environments too.
High-speed wireless
The spread of high-speed wireless (802.11ac or "Wave2") is problematic for network infrastructure. Unless the infrastructure is upgraded to cope with increased speeds, it creates a bottleneck which negatively impacts the effectiveness of the wireless network. But increasing speeds from 1 Gigabit has traditionally meant moving to 10 Gigabit. This requires new cabling, which is expensive and time consuming to install.
The x550-18XSPQm solves these issues because it provides support for 2.5 Gigabit. At this speed, the wireless network runs at full capacity, and there is no need to replace existing Cat5E and Cat6 cables.
Secure
A secure network environment is guaranteed. The x550 Series offers powerful control over network traffic types, secure management options, loop guard to protect against cabling mistakes, and tri-authentication for comprehensive access control.
Future-proof
The x550 Series ensures a future-proof network, with superior flexibility coupled with the ability to stack multiple units. All x550 Series models feature 40 Gigabit uplinks ports, and support OpenFlow and a comprehensive IPv6 feature set, to ensure they are ready for SDN and future network traffic demands.
Environmentally friendly
The x550 Series supports Energy Efficient Ethernet (EEE), automatically reducing the power consumed by the switch whenever there is no traffic on a port. This sophisticated feature can significantly reduce operating costs by reducing the power requirements of the switch and any associated cooling equipment.
- Autonomous Management Framework (AMF) Master
- Continuous PoE
- 40G uplinks
- Stack using 10G or 40G ports
- 4 x 10G breakout cables for 40G ports
- 2.5G for high-speed wireless applications
- OpenFlow v1.3
- G.8032 Ethernet Ring Protection
- Precision Time Protocol (PTP) Transparent Mode
Product Type: Layer 3 Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Indonesia
Product Series: x550
Brand Name: Allied Telesis
Form Factor: Rack-mountable
Manufacturer: Allied Telesis, Inc
Product Model: x550-18XSPQm
Product Name: x550-18XSPQm Layer 3 Switch
Manufacturer Part Number: AT-X550-18XSPQM-10
Manufacturer Website Address: http://www.alliedtelesis.com
Package Contents:
- x550-18XSPQm Layer 3 Switch
- US Power Cord
Weight (Approximate): 9.15 lb
