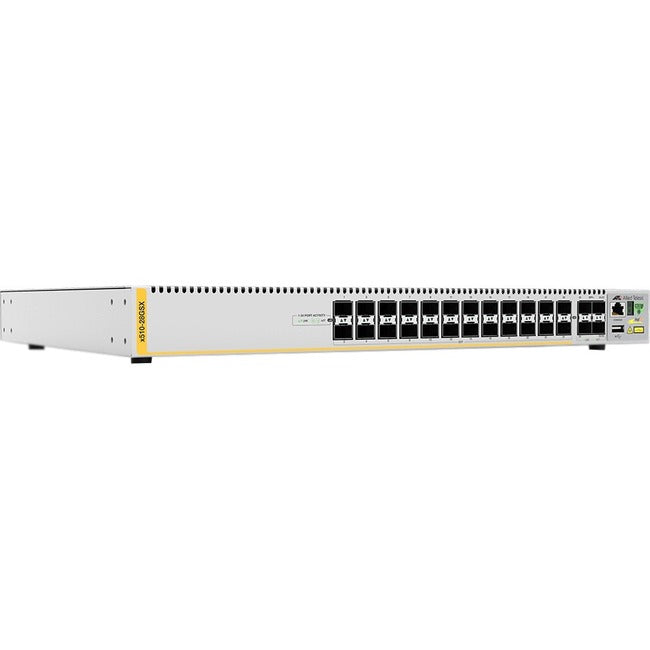

Allied Telesis Stackable Gigabit Switch
Allied Telesis x510 Series switches are a high-performing and feature-rich choice for today's networks. They offer a versatile solution for Enterprise applications. With a choice of 24- and 48-port models with 1/10Gigabit uplink ports, plus the power of Allied Telesis Virtual Chassis Stacking (VCStack™), the x510 Series can connect anything from a small workgroup to a large business.
Powerful network management
Meeting the increased management requirements of modern converged networks, Allied Telesis Autonomous Management FrameworkTM (AMF) automates many everyday tasks including configuration management. The complete network can be managed as a single virtual device with powerful centralized management features. Growing the network can be accomplished with plug-and-play simplicity, and network node recovery is fully zero-touch.
AMF secure mode increases network security with management traffic encryption, authorization, and monitoring. AMF Guestnode allows third party devices, such as IP phones and security cameras, to be part of an AMF network.
Network resiliency
The convergence of network services in the enterprise has led to increasing demand for highly available networks with minimal downtime. VCStack, in conjunction with link aggregation, provides a network with no single point of failure and an easy, resilient solution for high availability applications. The x510 Series can form a VCStack of up to four units for enhanced resiliency and simplified device management.
Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based G.8032 Ethernet Ring Protection, ensure that distributed network segments have high-speed, resilient access to online resources and applications.
Ring Protection and VCStack LongDistance (VCStack-LD), which enables stacks to be created over long distance fiber links, make the x510 Series the perfect choice for distributed environments.
Reliable
The x510 Series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime.
The x510DP features dual hotswappable load-sharing power supplies for maximum uptime. With front-to-back or back-to-front cooling options, the x510DP is ideal for data center applications.
The x510L Series switches enable highvalue solutions at the network edge.
Secure
Advanced security features protect the network. Unprecedented control over user access is provided with Network Access Control (NAC), mitigating threats to network infrastructure. This ensures the network is accessed only by known users and devices - all users' adherence to network security policies is checked, and then either access is granted or remediation is offered. Secure access can also be provided for guests.
Future-proof
The x510 Series ensures a future-proof network, with superior flexibility coupled with the ability to stack multiple units. All x510 Series models feature 1/10 Gigabit uplinks ports and a comprehensive IPv6 feature set, to ensure they are ready for future network traffic demands. All x510 24-port models are Software Defined Networking (SDN) ready and are able to support OpenFlow v1.3.
- G.8032 Ethernet Ring Protection
- Active Fiber Monitoring of fiber data and stacking links
- OpenFlow for SDN
- VLAN Mirroring (RSPAN)
- VLAN ACLs
- Border Gateway Protocol (BGP4)
- Upstream Forwarding Only (UFO)
- VLAN Translation
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: ECO
Country Of Origin: Singapore
Product Series: x510
Brand Name: Allied Telesis
Form Factor: Rack-mountable
Manufacturer: Allied Telesis, Inc
Product Model: x510-28GSX
Product Name: Stackable Gigabit Switch
Manufacturer Part Number: ATX510-28GSX-JITC-90
Manufacturer Website Address: http://www.alliedtelesis.com
Weight (Approximate): 10.58 lb
