Name: Ssupd Meshlicious Mini-Itx Small Form Factor (Sff) Case - Full Mesh Side Panel
Brand: SSUPD
SKU: SSU-MESHLI-BK-FM
Price: 526.00 CAD
Availability: InStock

Ssupd Meshlicious Mini-Itx Small Form Factor (Sff) Case - Full Mesh Side Panel

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email sales@tecisoft.com

The full mesh version include two fine mesh side panels for unrestricted airflow.
Compact 14.67 liter volume allows full-size GPU, ATX PSU, and 280 AIO cooler compatibility.
PCI 3.0 riser card included for a stylish vertical mount full length GPU up to 332mm long on 3 slots mode and up to 336mm long on 4 slots mode.
Fits CPU coolers up to 73mm height and supports front cooler up to 280 AIO (max 320mm length radiator).
High quality powder coated SGCC steel

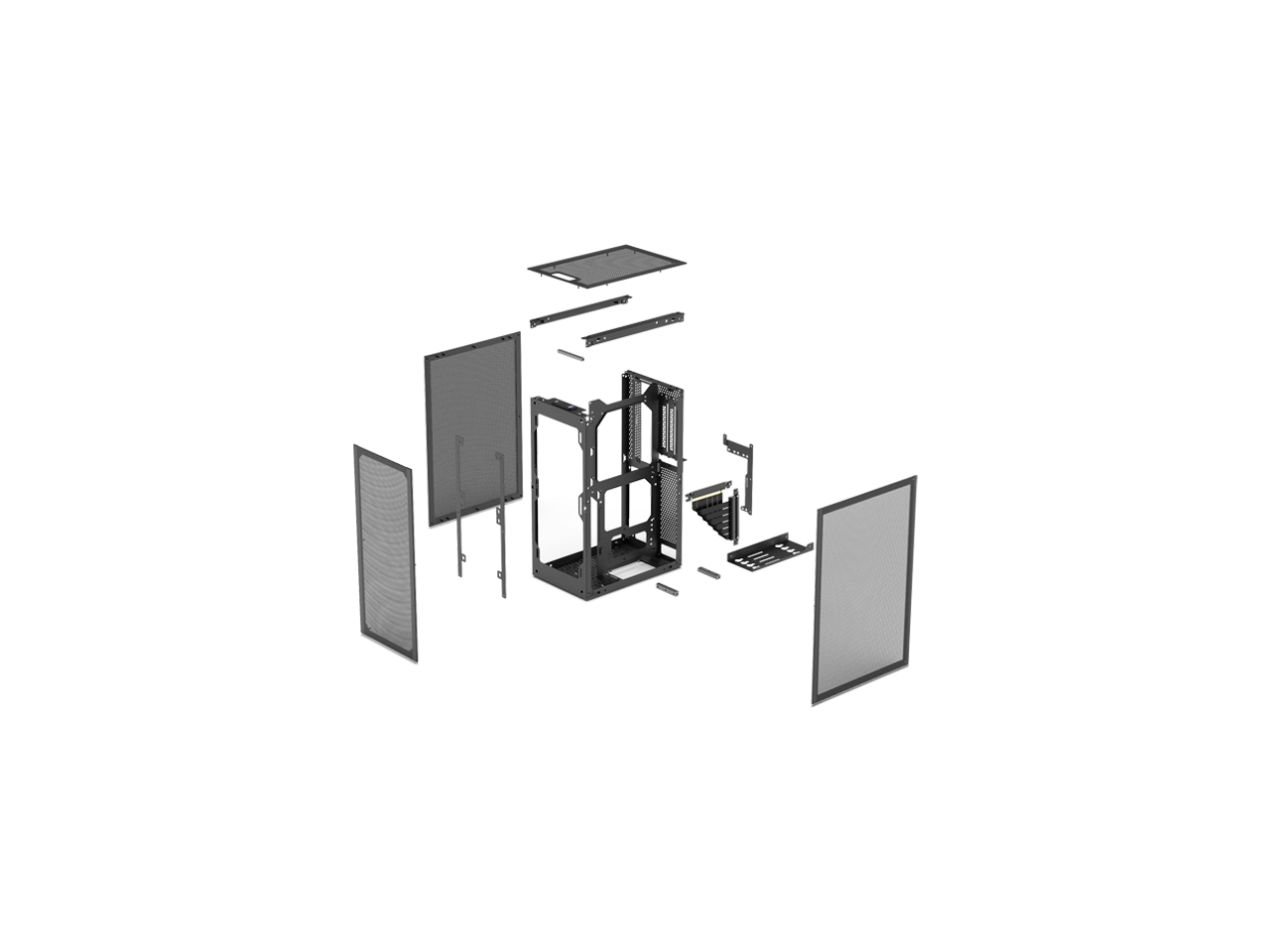

Tool-less external fine mesh panels and easy to assemble
6.6ft Up right angle HDMI 2.0 cable (4K@60Hz) is included in the package.

**Model**
Brand	SSUPD
Series	Meshlicious
Model	Meshlicious FM Black

**Details**
Type	Mini-ITX
Color	Black
Case Material	Steel, Fine Mesh Panel
Power Supply	ATX (Up to 170mm without radiator); ATX (Up to 150mm with radiator), SFX, SFX-L
Power Supply Mounted	Bottom
Motherboard Compatibility	Mini-ITX, Mini-DTX (Require extra 20cm PCIe riser card)
Dust Filters	No

**Expansion**
Internal 3.5" Drive Bays	With SFF GPU: 2 x 3.5" drives max
Internal 2.5" Drive Bays	With Full Length GPU & SFX PSU: 3 x 2.5"drives max; With Full Length GPU & ATX PSU: 2 x 2.5"drives max; With SFF GPU: 7 x 2.5" drives max
Expansion Slots	Full Length GPU: Up to 4 slots; SFF GPU: Up to 3 slots

**Front Panel Ports**
Front Ports	1x USB Type-C 3.1 Gen2, 1x USB 3.0, Power LED

**Cooling System**
Radiator Options	120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans)
120mm Fans	Front: 2 x 120mm fan
140mm Fans	Front: 2 x 140mm fan

**Dimensions & Weight**
Max GPU Length	Full Length GPU at 3 slots mode: Up to 332mm length and 155mm tall; Full Length GPU at 4 slots mode: Up to 336mm length and 155 mm tall; Small Form Factor GPU: Up to 211mm length (without radiator)
Max CPU Cooler Height	73mm height in 3 slots mode; 53mm height in 4 slots mode
Max PSU Length	170mm (without radiator); Recommend PSU below 150mm length
Dimensions (H x W x D)	14.17" x 6.55" x 9.65"
Weight	8.05 lbs.

**Additional Info**
Features	Aesthetic look with excellent ventilation of fine mesh panels
Package Content	Meshlicious FM Version Case, Install Kit, Manual, PCIe 3.0 riser card, Right Angle HDMI 2.0 Cable (6.6ft)

General Information

UPC	840353040922

Canada: Prices in CAD. Ships nationwide in 2–5 business days. GST/HST/PST calculated at checkout. Shipping policy.

Ssupd Meshlicious Mini-Itx Small Form Factor (Sff) Case - Full Mesh Side Panel

Description

Ssupd Meshlicious Mini-Itx Small Form Factor (Sff) Case - Full Mesh Side Panel
