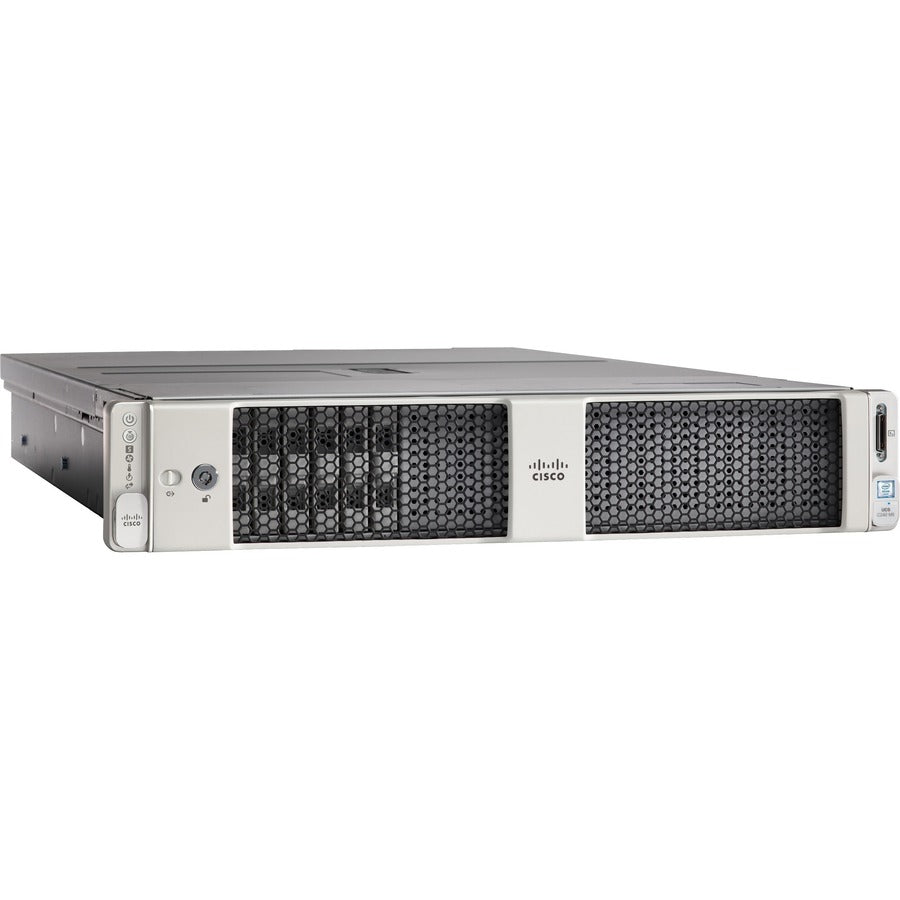

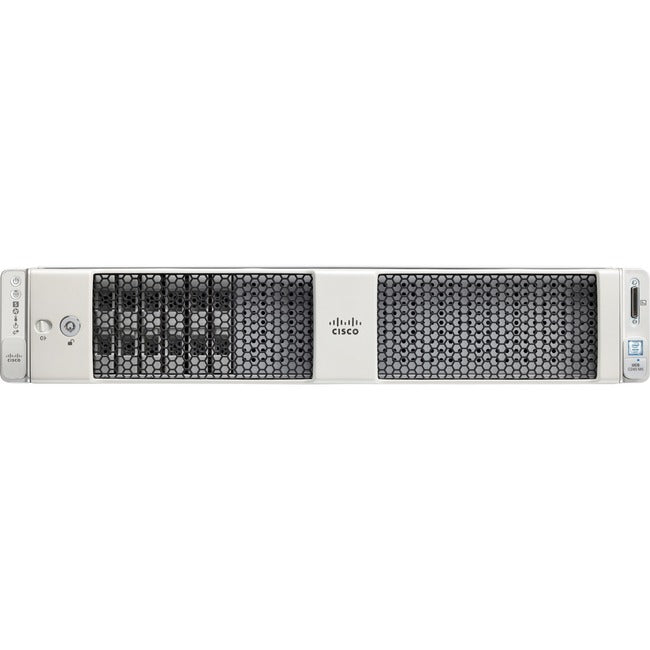

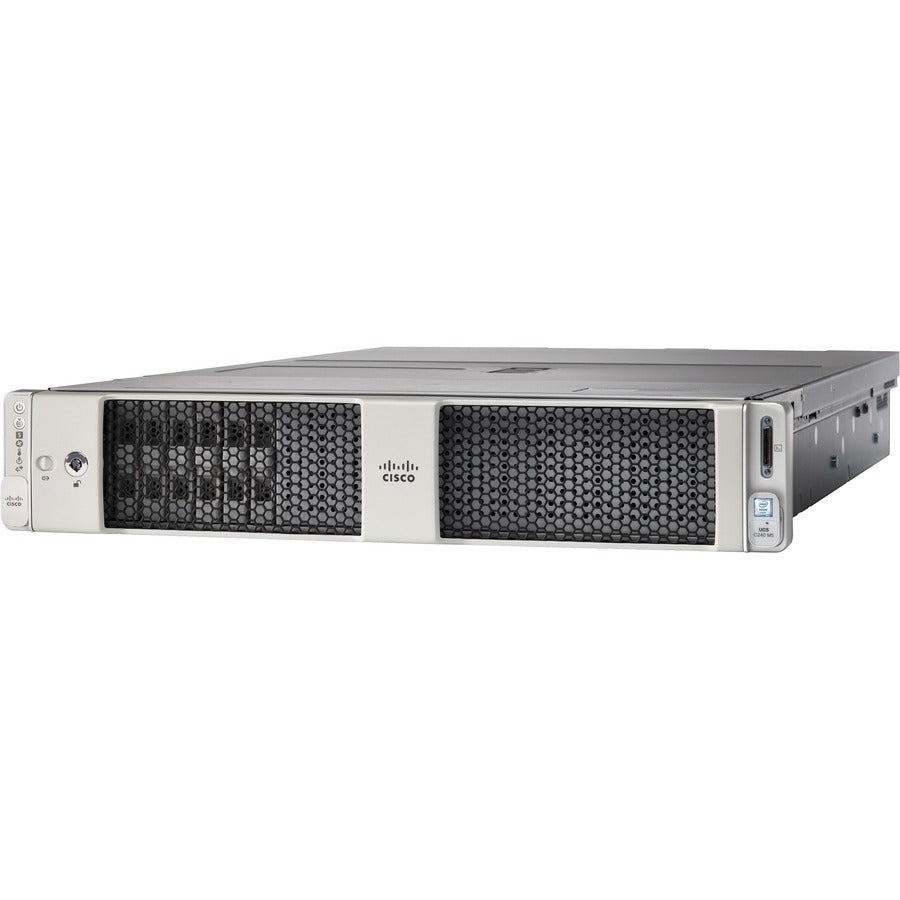

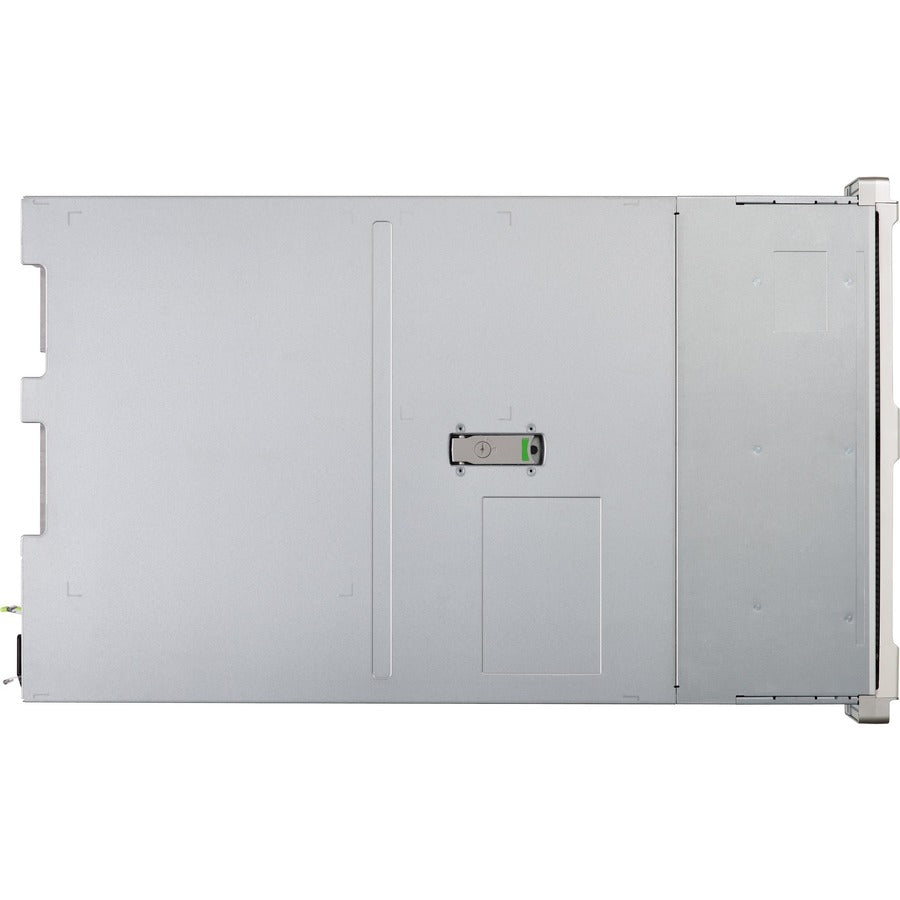

Cisco C240 M5 2U Rack-mountable Server - 2 x Intel Xeon Gold 5122 2.10 GHz - 192 GB RAM - 12Gb/s SAS Controller

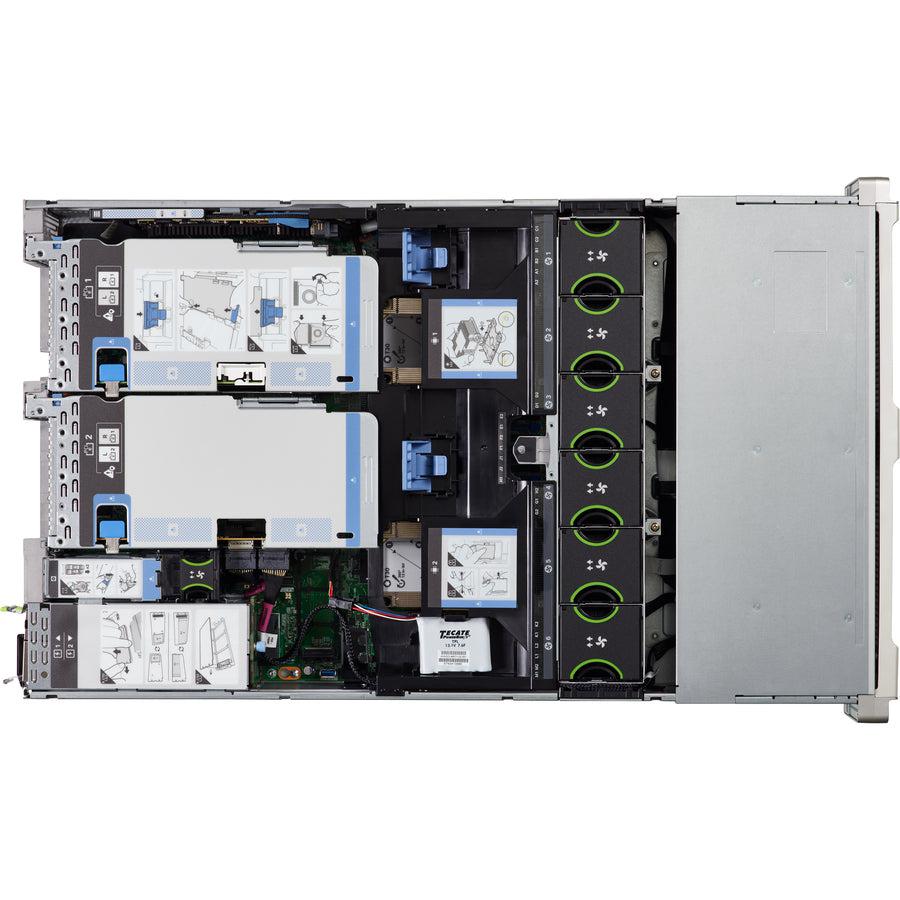

UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and capacity points up to 128GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2933 MHz DDR4 memory that is used with the latest 2nd Generation Intel® Xeon® Processor. With this combination and the new 512GB Intel® OptaneTM DC Persistent Memory (DCPMM - Data Center Persistent Memory Module), up to 9 TB of memory is possible (12x256GB DDR4 DIMMs1 and 12x512GB DCPMMs).
The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- With 192 GB memory, users can run multiple programs simultaneously without losing performance
- 2 x 1600 W power supply unit (PSU) for your system's power requirements
Product Type: Server
Product Series: C240 M5
Rack Height: 2U
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Name: UCS C240 M5 Server
Manufacturer Part Number: UCS-SP-C240M5-F1
Manufacturer Website Address: http://www.cisco.com
Limited Warranty: 3 Year
Weight (Approximate): 57.50 lb
