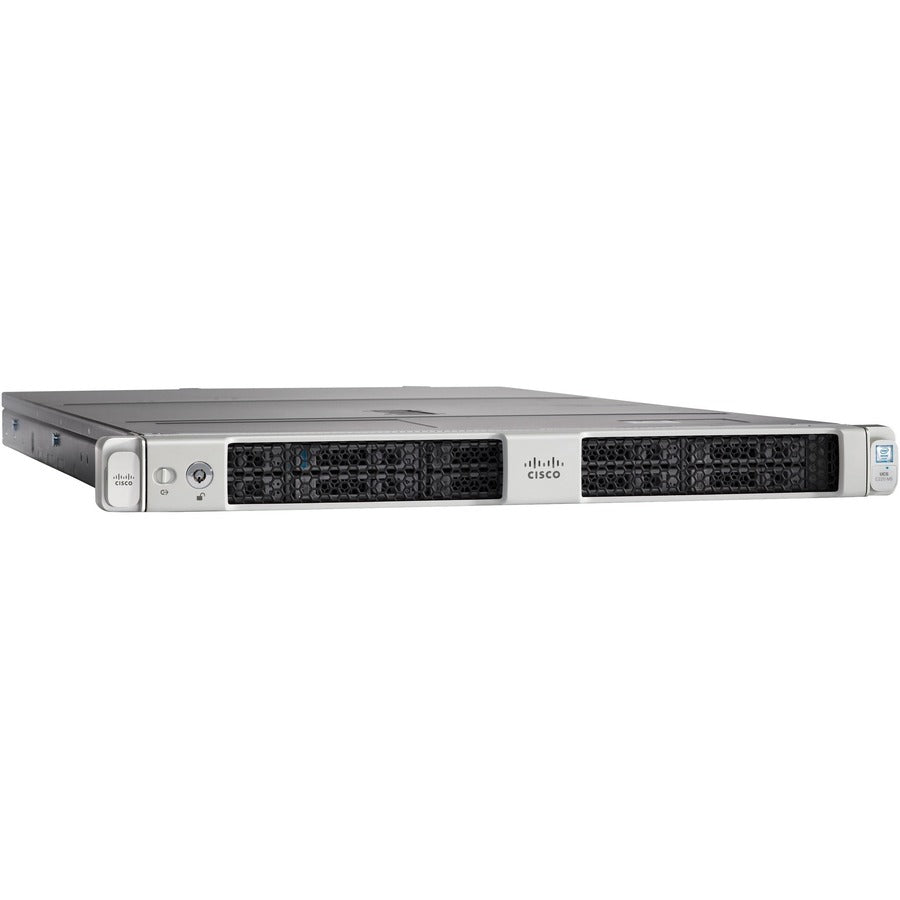

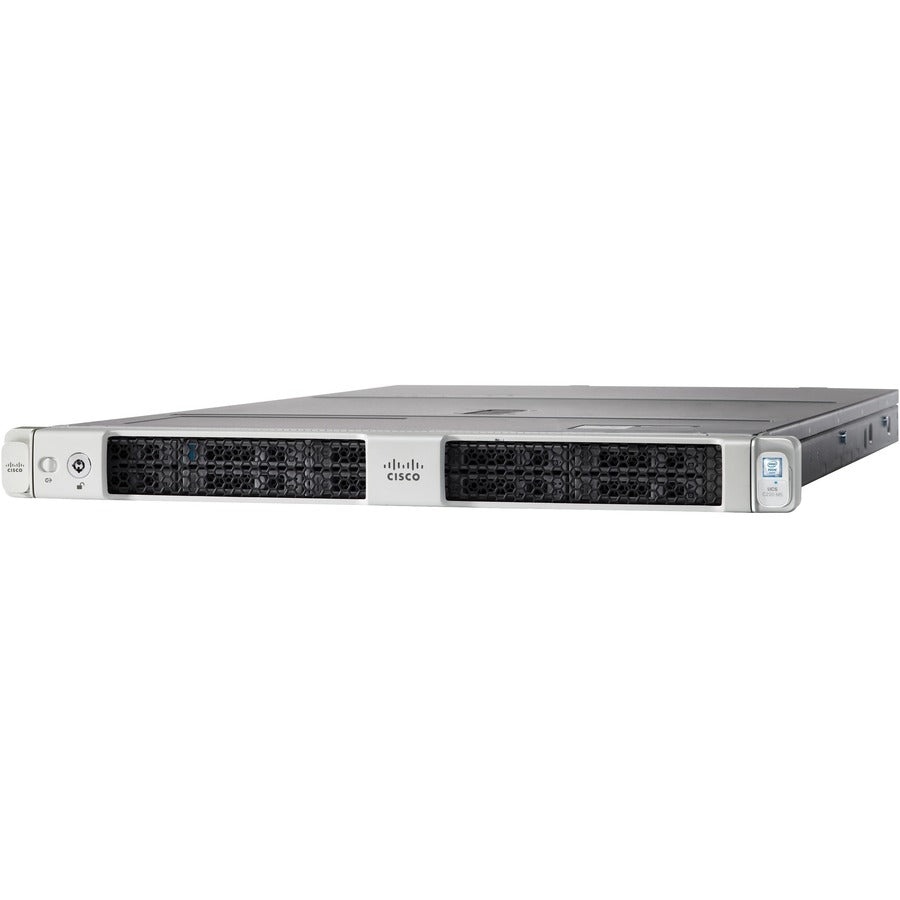

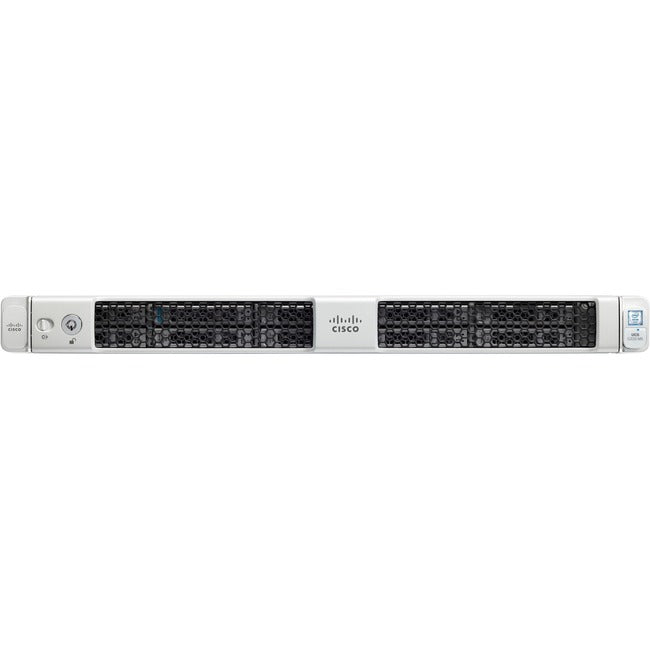

Cisco C220 M5 1U Rack Server - 2 x Intel Xeon Gold 5218R 2.10 GHz - 384 GB RAM - 480 GB SSD - (2 x 240GB) SSD Configuration - 12Gb/s SAS, Serial ATA/600 Controller

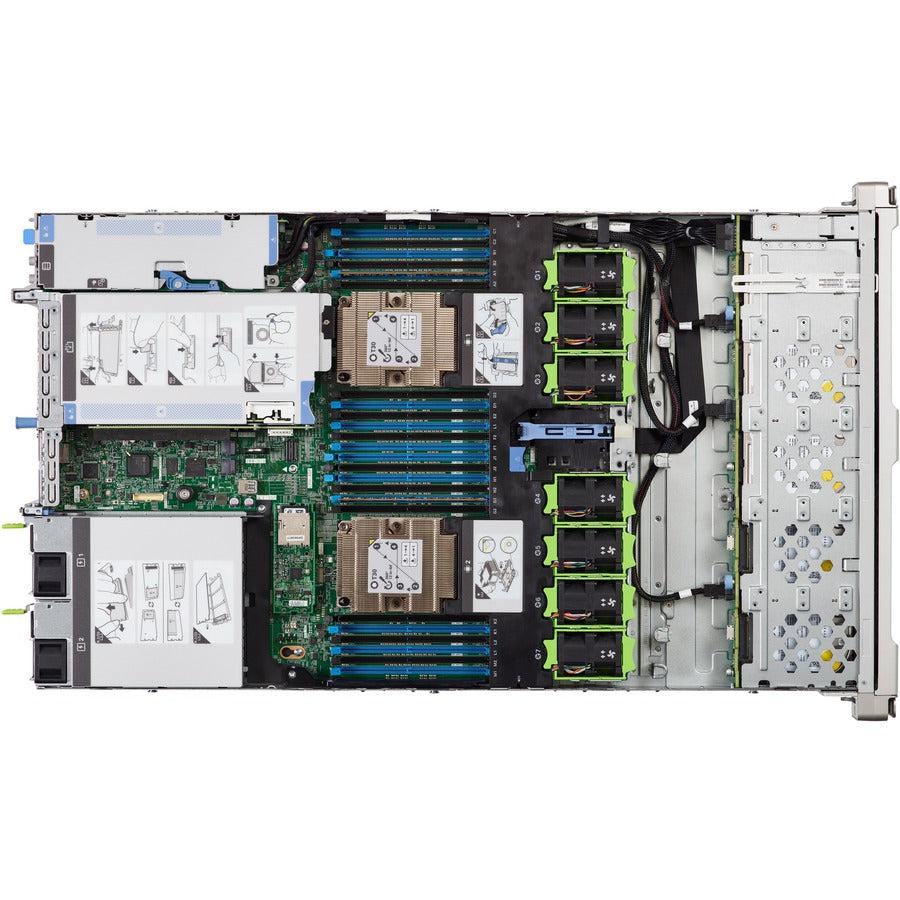

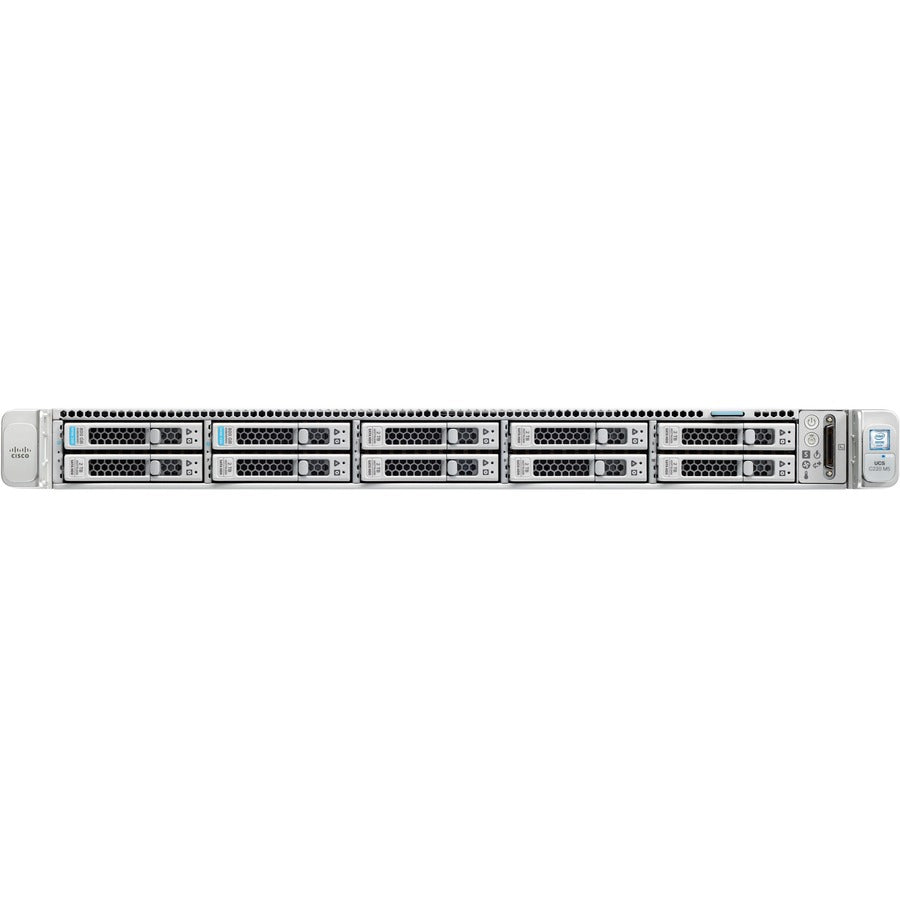

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz PMEMs with capacity points up to 512 GB, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® Persistent Memory Modules (PMEMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMEMs).
The C220 M5 server includes one dedicated internal modular LAN on motherboard (mLOM) connector for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- 480 GB SSD provides you with enough space to store large files, digital content, documents and other data
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- 384 GB memory enables you to do multitasking and run intensive applications lag-free
Product Type: Server
Country Of Origin: United States
Product Series: C220 M5
Rack Height: 1U
Brand Name: Cisco
Form Factor: Rack
Manufacturer: Cisco Systems, Inc
Product Name: UCS C220 M5 Server
Manufacturer Part Number: UCS-SP-C220M5C-S
Manufacturer Website Address: http://www.cisco.com
Limited Warranty: 3 Year
Weight (Approximate): 26.70 lb
