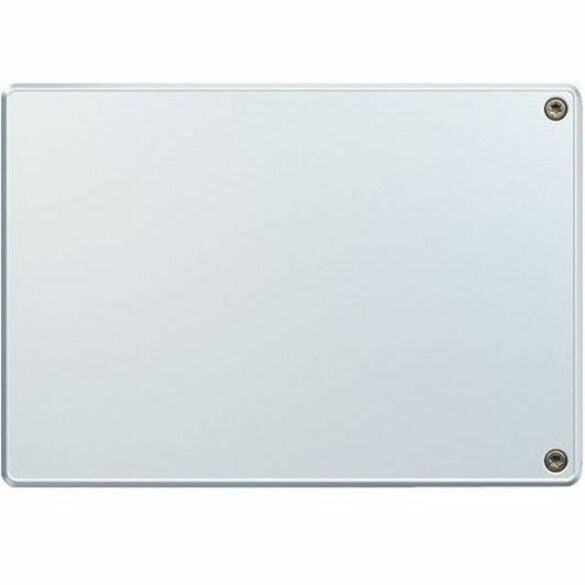

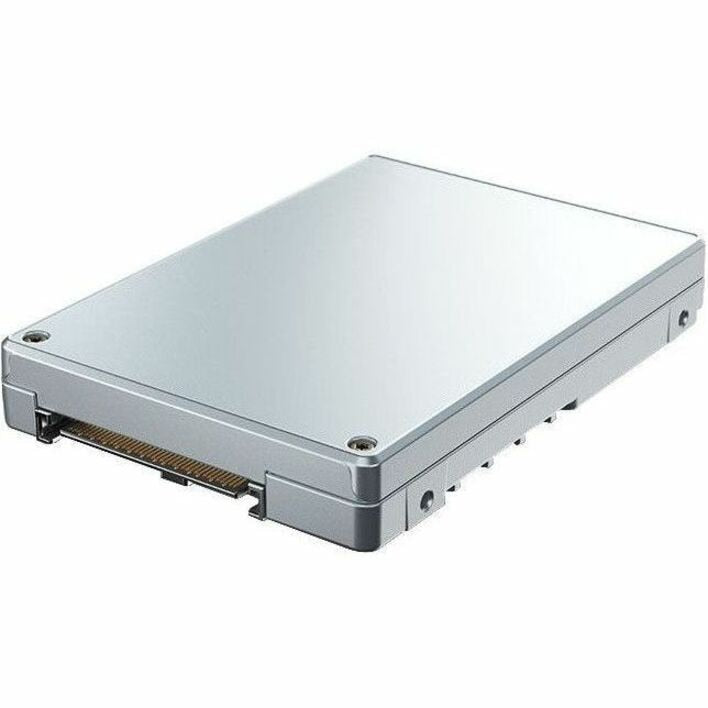

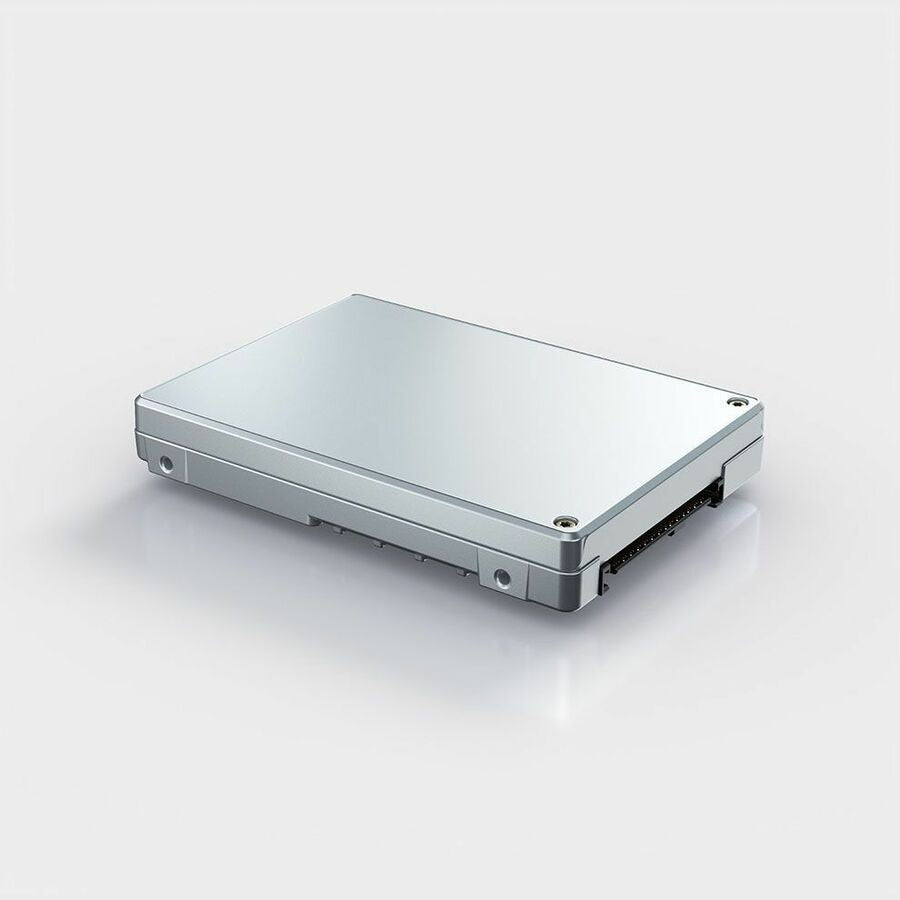

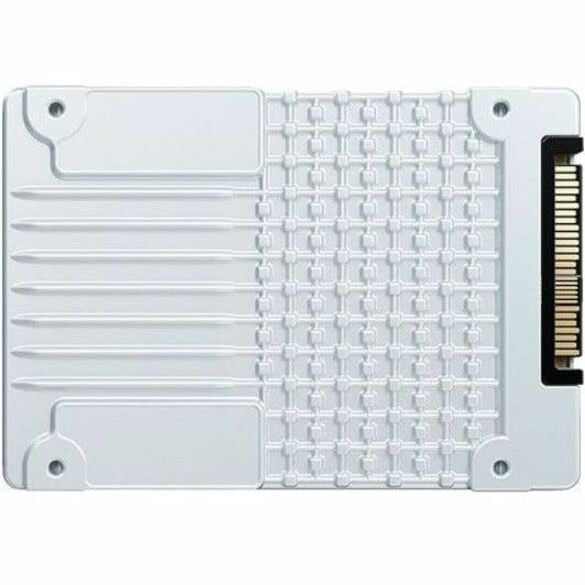

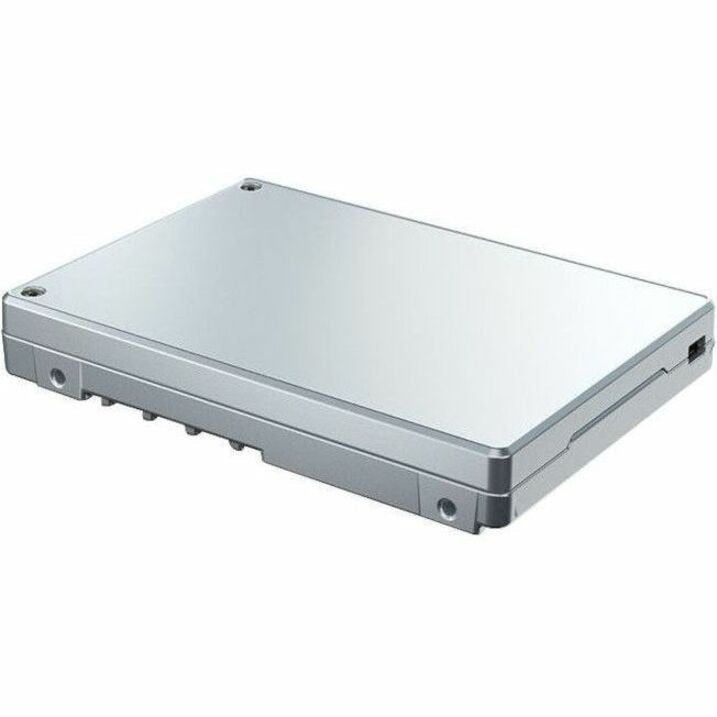

Solidigm D7-P5520 7.68TB U.2 SSD
The Solidigm D7-P5520 Series is a high-performance data center SSD engineered for enterprise servers and cloud infrastructure demanding reliable, read-intensive workloads. With 7.68TB capacity in a compact 2.5-inch U.2 15mm form factor, this PCIe 4.0 x4 NVMe drive delivers sequential read speeds up to 7100 MB/s and write speeds up to 4200 MB/s. Built on 144-layer 3D TLC NAND technology with OPAL security support, the D7-P5520 provides advanced data protection, power loss safeguards, and end-to-end error correction—ideal for mission-critical data center environments requiring maximum uptime and performance consistency.
Key Features
- 7.68TB capacity for large-scale data center deployments
- PCIe 4.0 x4 NVMe interface for ultra-fast sequential performance
- U.2 15mm 2.5-inch form factor compatible with standard server slots
- 144-layer 3D TLC NAND for reliable, cost-effective storage
- Sequential read speeds up to 7100 MB/s
- Sequential write speeds up to 4200 MB/s
- OPAL encryption and security support for data protection
- Advanced power loss protection and end-to-end data integrity
- Enterprise-grade reliability for read-intensive workloads
Technical Specifications
| Specification |
Details |
| Manufacturer |
Solidigm |
| Part Number |
SSDPF2KX076T1OZ |
| Model Series |
D7-P5520 |
| Capacity |
7.68TB |
| Form Factor |
2.5-inch U.2 15mm |
| Interface |
PCIe 4.0 x4 NVMe |
| NAND Type |
144-layer 3D TLC |
| Max Sequential Read |
7100 MB/s |
| Max Sequential Write |
4200 MB/s |
| Security |
OPAL Support |
| Data Protection |
Power Loss Protection, End-to-End Error Correction |
Frequently Asked Questions
What is the Solidigm D7-P5520 best used for?
The D7-P5520 is optimized for data center and server environments requiring high-capacity, read-intensive storage with enterprise-grade reliability. It excels in cloud infrastructure, virtualization platforms, and large-scale database applications where consistent performance and data integrity are critical.
Is the D7-P5520 compatible with my server?
Yes, the U.2 15mm form factor is widely supported in modern enterprise servers with NVMe U.2 slots. Verify your server's specifications support PCIe 4.0 x4 NVMe drives for optimal performance and compatibility.
What security features does the D7-P5520 offer?
The drive includes OPAL encryption support for secure data protection, advanced power loss protection to prevent data corruption during unexpected shutdowns, and end-to-end error correction for maximum data integrity in mission-critical environments.
How does the 7.68TB capacity compare to other enterprise SSDs?
The 7.68TB capacity provides substantial storage density in a single drive, reducing the number of physical drives required and lowering power consumption, cooling costs, and server slot utilization compared to smaller-capacity alternatives.
