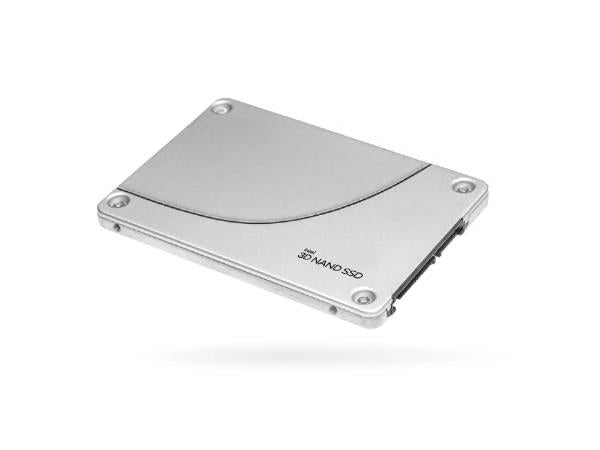

The Solidigm D3-S4520 SSDSC2KB240GZ1Z is a 240GB enterprise-class 2.5-inch SATA solid-state drive designed for servers, data centers, and business-critical storage environments. Built with 144-layer TLC 3D NAND, the D3-S4520 provides reliable, power-efficient storage performance while maintaining compatibility with existing SATA infrastructure.
With sequential read speeds of up to 470 MB/s and write speeds of up to 233 MB/s, the 240GB D3-S4520 is well suited for read-intensive enterprise applications, server boot drives, operating systems, logging, virtualization, and general-purpose data-center workloads. It delivers up to 44,000 random read IOPS and 15,500 random write IOPS for responsive application and storage performance.
The drive includes enterprise reliability features such as Enhanced Power Loss Data Protection, end-to-end data protection, temperature monitoring, and 256-bit AES hardware encryption. Its 2.5-inch, 7mm form factor and SATA 6 Gb/s interface allow it to integrate easily into compatible servers and storage systems.
Key Features
- 240GB storage capacity
- 2.5-inch, 7mm form factor
- SATA III 6 Gb/s interface
- 144-layer TLC 3D NAND
-
Sequential read speeds up to 470 MB/s
-
Sequential write speeds up to 233 MB/s
-
Up to 44,000 random read IOPS
-
Up to 15,500 random write IOPS
- Enterprise/server-class design
- Enhanced Power Loss Data Protection
- End-to-end data protection
- AES 256-bit hardware encryption
- SSD temperature monitoring
-
Up to 1 PBW endurance
-
Approximately 1 DWPD
- 2 million-hour MTBF
-
Operating temperature: 0°C to 70°C
- Designed for read-intensive and general enterprise workloads
Manufacturer: Solidigm
Product Family: D3-S4520
Part Number: SSDSC2KB240GZ1Z
Capacity: 240GB
Interface: SATA 6 Gb/s
Form Factor: 2.5-inch
Product Type: Enterprise / Data Center Internal SSD
