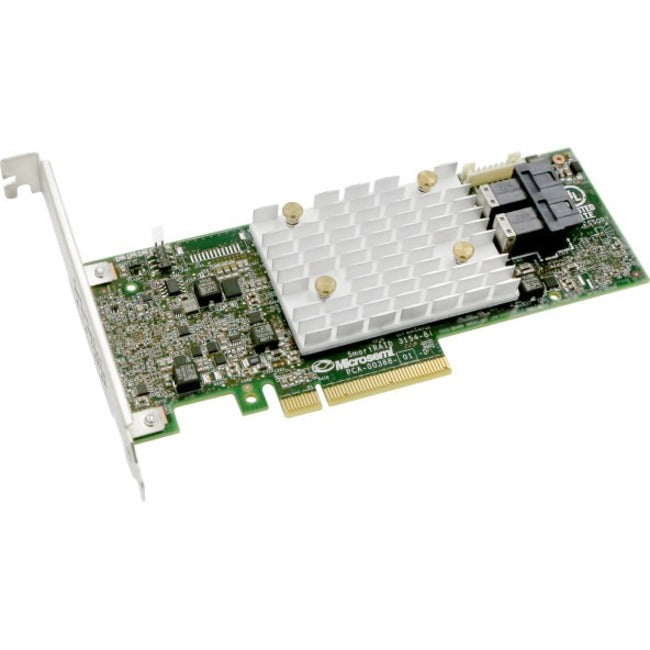

Microchip Adaptec SmartRAID 3102E-8i Single
The SmartRAID 3102E-8i 12 Gbps PCIe Gen 3 SAS/SATA RAID adapter delivers an entry-level solution with the robustness and performance of hardware RAID and the industry leading power of the SmartRAID 3100 series. This solution provides significant performance acceleration over other entry-level adapter card solutions through a built-in 2 GB DRAM cache , thus delivering a performant hardware RAID solution for cost-sensitive platforms that don't require the full capabilities of our full featured SmartRAID adapters. The SmartRAID 3102E-8i supports RAID levels: RAID 0, 1, 1 ADM, 10, and 10 ADM.
With broad operating system support and ecosystem compatibility, SmartRAID adapters are easy to implement and scale, and the unified maxView management tools and drivers across the Adaptec HBA, RAID, and expander solutions enable easy manageability across the entire product line.
SmartRAID 3102E-8i RAID adapters are ideal solutions for of industrial PC workstations or entry-level servers that require connectivity to 6G SATA or SAS-3 drives for redundant boot support and I/O intensive applications such as databases or video editing.
- Accelerates storage with 2 GB of high-speed DRAM cache
- RAID levels: 0, 1, 10, 1 ADM and 10 ADM
- Up to 8 native SAS/SATA ports in a LP/MD2 design
- 1.6M random read 4 KB IOPS2
- Industry's lowest-power 28 nm SmartROC SAS/SATA protocol controller
- Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30M servers
Product Type: SAS Controller
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: Singapore
Product Series: 3100
Brand Name: Microchip Adaptec
Form Factor: Plug-in Card
Manufacturer: Microchip Technology Inc.
Product Model: 3102E-8i
Product Name: SmartRAID 3102E-8i Single
Product Line: SmartRAID
Manufacturer Part Number: 2304200-R
Manufacturer Website Address: http://www.microchip.com
Platform Supported: Linux
Limited Warranty: 3 Year
Weight (Approximate): 1.10 lb
