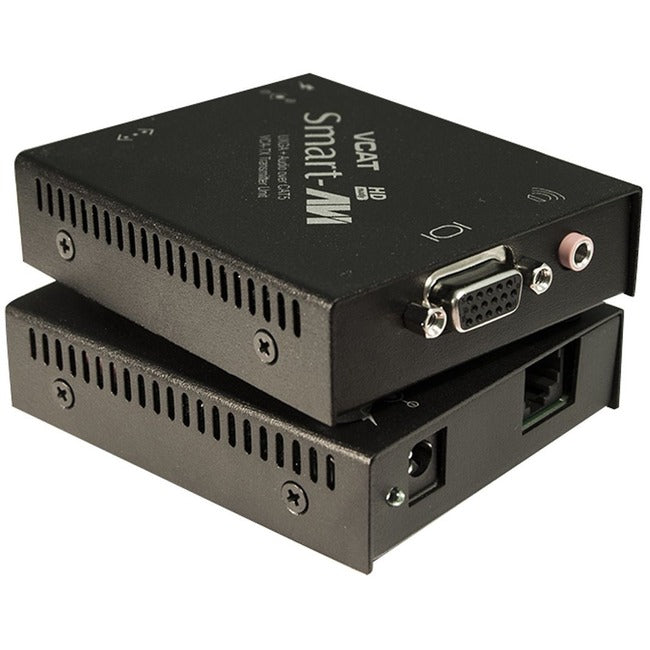

SmartAVI VCA-100S Video Console/Extender
SmartAVI's VCA-100 uses a single CAT5 cable to extend high-resolution VGA video and stereo audio up to 1,000 feet away from signal source devices. Powerful, Cost-Effective VGA Extension Solution The VCA-100 is SmartAVI's most economical and easy-to-use VGA extension model. Offering up to 1000 feet worth of signal extension between transmitter (TX) and receiver (RX) units, VCA-100 systems ensure high quality playback via a cost-efficient CAT5 cable. VGA Extension in Any AV Environment A great fit in a vast array of environments, VCA-100 systems excel in airports, schools, retail spaces, medical facilities, and media-centric environments of all kinds. Cost-conscious users will swoon for VCA-100's economical CAT5 cabling, and AV integrators of any technical level can install VCA-100 easily, thanks to its plug-and-play design.
Features:
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
- Output reaches up to 1,000 feet (300m).
- Supports high resolution clear video up to 1920x1200.
- HDTV compatible (720p, 1080i,1080p).
- 300 MHz Bandwidth.
- Sends high-resolution XVGA and Stereo Audio signals.
- Compatible with VGA, XGA, Sun, MAC and SGI Signals.
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in lightning, power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact metal case enclosure.
- Optional power supply for remote unit.
- Remote Units come with Buffered Outputs.
- High ground loop immunity.
- Compatible with Line Level Stereo Audio Signals.
- Compatible with VGA, XGA, Sun, MAC and SGI signals.
- Sync Format / Polarity Preservation.
- 300 MHz Bandwidth.
- Sends high-resolution XVGA and Stereo Audio signals.
- Supports high resolution clear video up to 1900 x1200.
- HDTV compatible (720p, 1080i,1080p).
- Output reaches up to 1,000 feet (300 m).
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
Product Type: Video Extender Transmitter/Receiver
Country Of Origin: United States
Brand Name: SmartAVI
Manufacturer: Smart Audio Video Innovation
Product Model: VCA-100S
Product Name: UXGA/Audio Point-to-Point CAT5 Extender
Manufacturer Part Number: VCA-100S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- 1 x VCA-100-TX Transmitter Unit
- 1 x VCA-100-RX Receiver Unit
- 2 x PS5VDC2A Power Supplies
- CCVGAMM06 Cable
- 1 x Quick Start and Installation Guide
Limited Warranty: 1 Year
