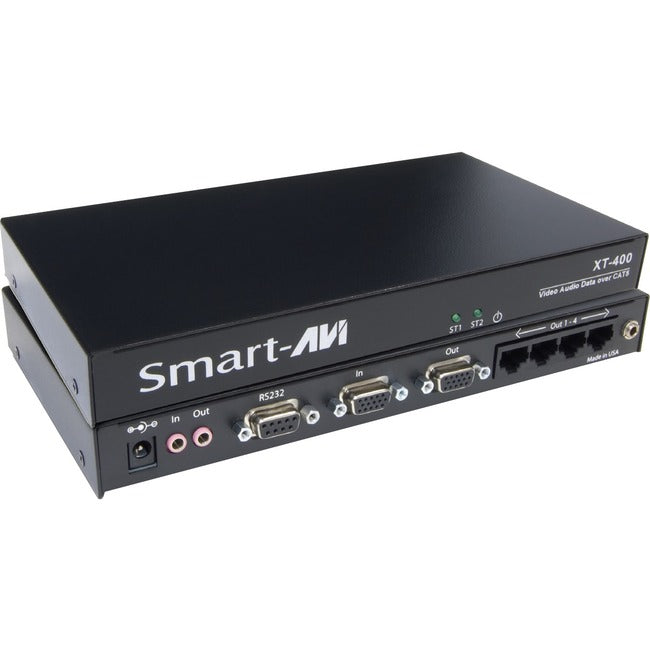

SmartAVI UXGA/Audio/IR/RS-232 Point-to-Multi- Point CAT5 Extender, 4-Port Transmitter
The XT400 range of products allows the extension of a wide range of video and audio formats and RS232 up to 4 locations using Category 5 Unshielded Twisted Pair (UTP) cables. With RS232 communication support the XT400 allows users to send commands to single or multiple devices. This allows the user to change the volume, channel or turn on/off the display panel remotely.
- Supports Local Screen.
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
- Each output reaches up to 1,000 feet (300 m).
- Supports high resolution video up to 1920x1200
- HDTV Compatible (720p, 1080i,1080p)
- 300 MHz Bandwidth.
- Sends high-resolution VGA, Stereo Audio signals, RS232 or IR from one source to 4 locations.
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in power surge and transient protection.
- Designated trimmer in the remote unit to compensate for cable length.
- Compact Metal Case Enclosure.
- External power supply.
- RS-232c Communication support to single or multiple Displays.
- IR command to single or multiple Displays
- EDID Emulator.
- Sync Format / Polarity Preservation.
- Compatible with VGA, XGA, Sun, MAC and SGI
- Sends high-resolution VGA, Stereo Audio signals, RS232 or IR from one source to 4 locations.
- 300 MHz Bandwidth.
- HDTV Compatible (720p, 1080i,1080p)
- Supports high resolution video up to 1920x1200.
- Compatible with Line Level Stereo Audio Signals.
- Each output reaches up to 1,000 feet (300 m).
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
- Supports Local Screens.
Product Type: Video Extender Transmitter
Transmitter Weight (Approximate): 12.80 oz
Country Of Origin: United States
Brand Name: SmartAVI
Manufacturer: Smart Audio Video Innovation
Product Model: XT-TX400
Product Name: UXGA/Audio/IR/RS-232 Point-to-Multi- Point CAT5 Extender, 4-Port Transmitter
Manufacturer Part Number: XT-TX400S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- UXGA/Audio/IR/RS-232 Point-to-Multi- Point CAT5 Extender, 4-Port Transmitter
- 1 x PS5VD2A Power Supply
- CCVGAMM06 Cable
Limited Warranty: 1 Year
