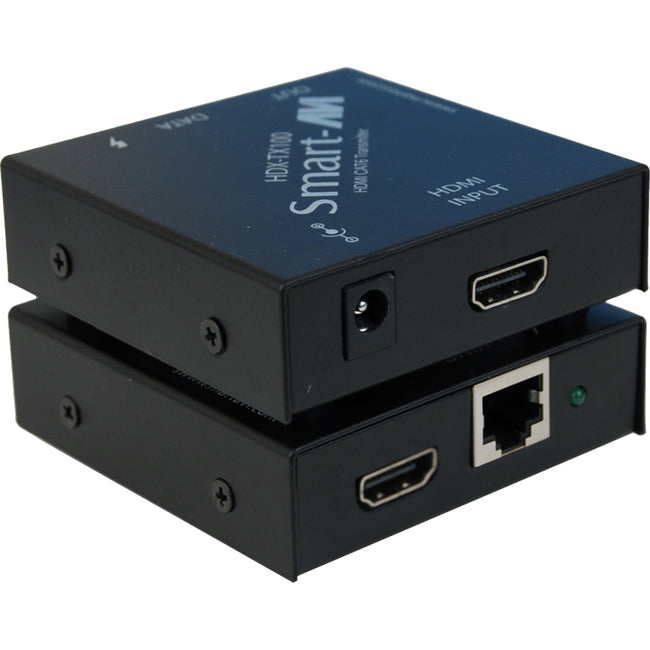

SmartAVI Transmitter for HDMI over a single CAT6 Cable
What is the HDX-100?
The HDX-100 is an extender that boosts HDMI signals up to 150 feet from source devices.
Reliable, HD Digital Signal Extension:
Capable of 1080p (1920x1080) Full HD video and stereo audio output from a single HDMI digital connector, the HDX-100 delivers stunning media content to end-point displays easily. Taking digital signals from source devices like BluRay players, gaming consoles, cable boxes, and personal computers, the HDX-100 then sends signals to output devices like HDTVs up to 150 feet away.
Affordable HDMI Extension in Any Application:
The HDX-100 is a great addition to retail spaces, restaurants, classrooms, and home entertainment setups. Its high quality video signal boosting abilities are terrific for connecting distant devices to projectors, HDTVs, and digital displays of any kind. Better yet, the HDX-100 uses shielded twisted-pair (STP) CAT5/6 cables to boost a signal's range, a cost-effective and very popular method of extending AV set-ups.
Features:
- Compact Transmitter/Receiver Units
- Local HDMI Output
- Perfect Image Quality at all Resolutions (1920 x 1200, 480p, 720i, 720p, 1080i, 1080p)
- Video Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz) on all Distances to the Maximum Limit
- Bandwidth to 1.64Gps
- Automatic DDC Learning from Local Monitor
- Unit Operates Regardless of Local Monitor Connectivity
- Distances up to 150 Feet using Cat6 STP Cabling
- Compatible with all Operating Systems
- Plug-and-Play - No Software Required
- No Loss of Signal Quality up to Maximum Distance
- LED Status Lights
- Plug-and-Play Ready
- Supports HDMI Resolutions of 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Supports Audio Formats of DTS-HD/DolbyTrueHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Local HDM1 Output for Easy Monitoring
- Maximum Signal Extension up to 180 feet
- Supports 3D Signals
- Distribute and Extend one HDMI Source to Displays via Three Cat5e/Cat6/Cat6 STP Cables
Product Type: Video Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1"
Transmitter Width: 2.75"
Transmitter Depth: 3.88"
Transmitter Weight (Approximate): 9.60 oz
Country Of Origin: United States
Brand Name: SmartAVI
Manufacturer: Smart Audio Video Innovation
Product Model: HDX-TX100S
Product Name: Transmitter for HDMI over a single CAT6 Cable
Manufacturer Part Number: HDX-TX100S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- Transmitter for HDMI over a single CAT6 Cable
- PS5VD2A Power Supply
- 1 x Quick Start and Installation Guide
Limited Warranty: 1 Year
