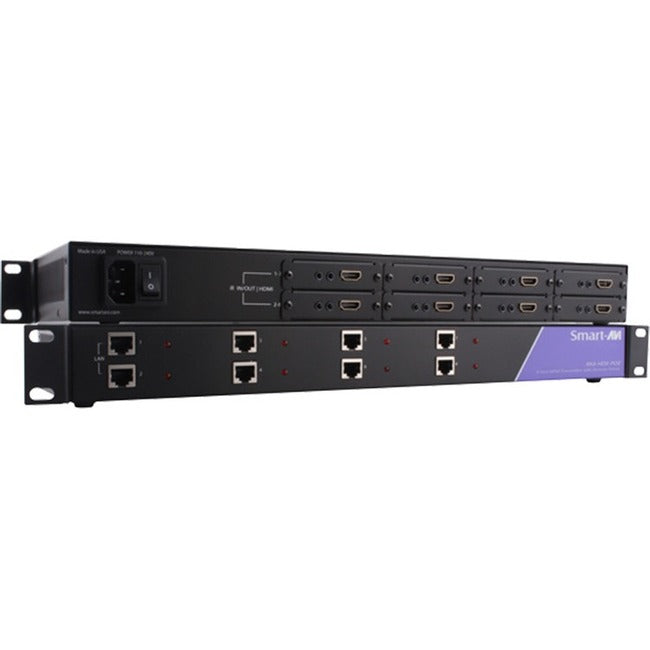

SmartAVI Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable
The RK8-HDX-POE is the perfect solution for extending HDMI signals to a remote location up to 250 feet away. It is the ideal way to consolidate up to eight workstation computers into one location. It is fully compatible with MAC, PC and LINUX HDMI standards. Up to eight displays can be extended easily from a rack without the mess or expense of multiple extenders. Rather than buy multiple extenders for rack components, and having to find power strips or numerous power outlets for the adapters, the SmartAVI rack series of extenders allows for up to eight inputs and eight outputs with only one power supply.
APPLICATIONS
MEDICAL FIELD - In the medical field where sensitive electronic devices are used, isolating workstation computers can be a matter of safety. The RK8-HDX-POE allows the workstation computers to be housed in a central location, away from sensitive devices.
INDUSTRIAL WORK AREAS - In industrial work areas that may be too harsh for a workstation computer, the RK8-HDXPOE can consolidate the computers into a safe location.
DIGITAL SIGNAGE - When it comes to digital signage, the RK8-HDX-POE is an excellent deployment option. With the RK8-HDX-POE, up to eight digital signage devices can be centralized and secured from public access.
INFORMATION KIOSKS/DISPLAYS - As with most information booths and kiosks, there is a risk of damage or theft. The RK8-HDX-POE is the best way to secure computer hardware, by consolidating it to a secure location away from public access.
- Transmits 1080p Resolution Video up to 250 ft
- Transmits Dolby TrueHD, DTS-HD MA Audio Signals
- Power receiver from transmitter
- Data Signals up to 3.4Gbps
- HDMI 1.4 and HDCP Compliance
- 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit
- Full HD support: 1080p@60Hz@48 bit/pixels,
- Extends HDMI, IR, and Power Output over Cat5e/6
- Extends IR Control Signals for Remote Control
- Supports resolutions up to 4K Ultra HD (@30Hz)
Product Type: Video Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 17"
Transmitter Width: 6"
Transmitter Depth: 1.70"
Transmitter Weight (Approximate): 3.26 lb
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Rack-mountable
Manufacturer: Smart Audio Video Innovation
Product Model: RK8-HDXPOE-TX
Product Name: Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable
Manufacturer Part Number: RK8-HDX-POE-S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- Rack for 8 HDMI & IR Extenders over a Single Cat5e/6 Cable
- CCWPWR
Limited Warranty: 1 Year
