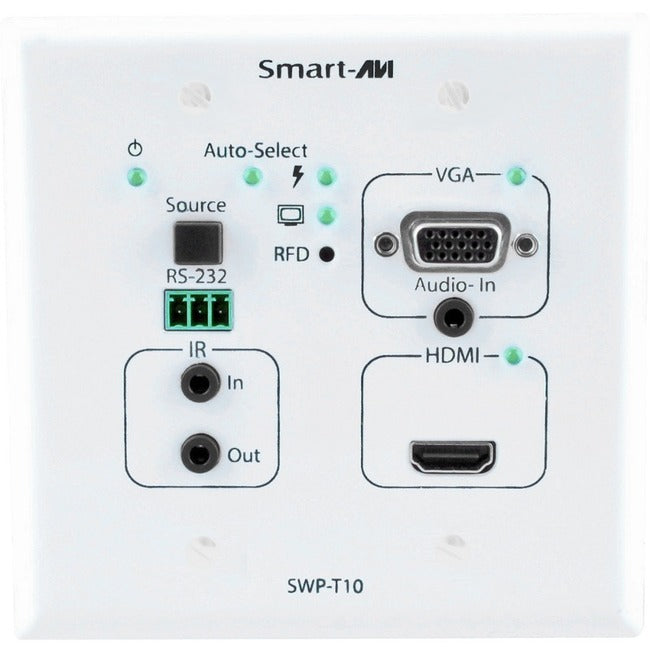

SmartAVI HDMI, VGA, Stereo Audio, IR POE Extender with Integrated Scaler and Converter
The SWP-T10 is SmartAVI's most comprehensive all-in-one wall plate extender to date. Featuring HDMI, VGA, stereo audio, and IR extension with CAT5e/6 enhancements at lengths up to 70 meters (230 ft), SWP-T10 is a powerful extension solution ideal in a vast array of environments. Powerful, Space-saving Extension The SWP-T10's compact wall plate design ensures users save valuable workspace by concealing CAT5 extension cables within walls. CAT5 cables are amongst the most popular and reliable means of extending AV systems, boosting signal ranges by hundreds of feet at high speeds. Built into walls, these CAT5 connections keep networked systems within a user's reach without taking up room with bulky hardware. Scaler, Converter, and Extender: An All-in-One Solution! Integrated with an automatic scaler and converter, the SWP-T10 bumps standard-definition picture resolution up to full 1080p (1920 x 1080 @ 60Hz) HD, and automatically recognizes signal types for optimized output. Conveniently powered by either the transmitting or receiving unit, the SWP-T10 blends SmartAVI's signature ease-of-use with quality, highly-adaptable configurations right for any set-up. Keep your environment connected and smart with the Smart Wall Plate T10!
Features:
- Supports POE: powered by either SWP-T10-TX or compatible HDX receiver units
- HDMI 1.4 and DVI compliant (with adaptor)
- Automatic, integrated resolution scaler up to 1080p (1920 x 1080 @ 60Hz)
- Extends CAT5e/6 signals up to 70m
- CEC pass-through
- LED status indicators
- Automatic & manual input recognition and selection
- Extends IR remote control
- Optional RS-232 support
Product Type: Video Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 4.60"
Transmitter Width: 4.60"
Transmitter Depth: 1.45"
Transmitter Weight (Approximate): 12 oz
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Wall Plate
Manufacturer: Smart Audio Video Innovation
Product Model: SWP-T10
Product Name: HDMI, VGA, Stereo Audio, IR POE Extender with Integrated Scaler and Converter
Manufacturer Part Number: SWP-T10
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- HDMI, VGA, Stereo Audio, IR POE Extender with Integrated Scaler and Converter
- Power Supply
Limited Warranty: 1 Year
