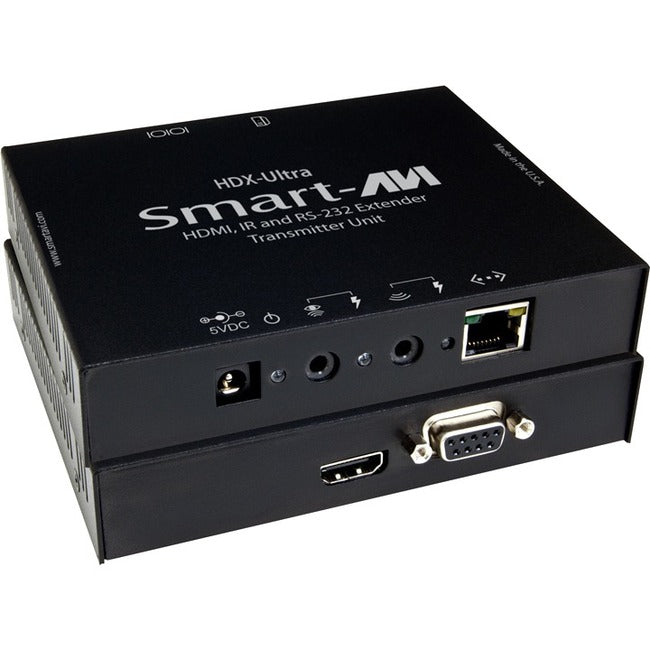

SmartAVI HDMI, IR, RS-232, Point to Point Cat5 Extender
The HDX-Ultra uses only one CAT5e/6 UTP cable to extend HDMI signals such as HDTV output over 400 ft from the source. Utilizing HDBaseT technology, the unit is capable of transmitting high-resolution HD video up to 4K resolution. Controlling a video source is easy with the HDX-Ultra's bi-directional IR and RS-232 extension. Whether it's for a home entertainment system or a commercial installation, the HDX-Ultra delivers flexibility and control.
- Transmits 1080p resolution over 330 feet (100 meters) from the source
- Transmits high quality Dolby TrueHD, DTS-HD MA audio signals
- HDMI 1.3 and HDCP compliance
- IR and RS-232 communication are bi-directional
- Data signals up to 3.4 Gbps
- Delivers uncompressed HD video up to 1080p @ 60Hz @ 48 bits and 3D
- Extends IR and RS-232 control signals for remote control
- Supports resolutions up to 4K Ultra HD (@30Hz)
- Extends HDMI output over one Cat5/5e/6 UTP cable
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1.13"
Transmitter Width: 5"
Transmitter Depth: 4.13"
Receiver Height: 1.13"
Receiver Width: 5"
Receiver Depth: 4.13"
Transmitter Weight (Approximate): 9.60 oz
Receiver Weight (Approximate): 9.60 oz
Country Of Origin: United States
Brand Name: SmartAVI
Manufacturer: Smart Audio Video Innovation
Product Model: HDX-Ultra
Product Name: HDMI, IR, RS-232, Point to Point Cat5 Extender
Manufacturer Part Number: HDX-ULTRA-S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- HDXT-TX Transmitter
- HDXT-RX Receiver
- 2 x PS5VD2A Power Supply
Limited Warranty: 1 Year
