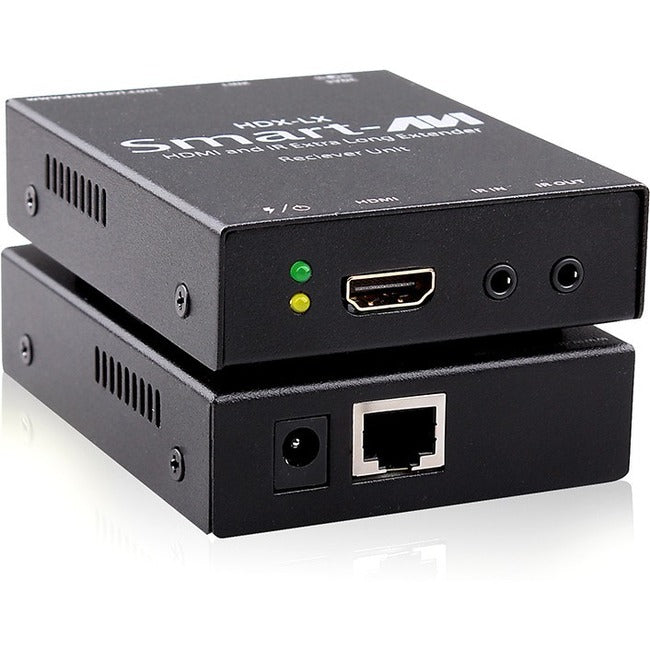

SmartAVI HDMI + IR Over a Single CAT5 UTP Cable Extender
The HDX-LX uses a single CAT5 UTP cable to extend HDMI signals - including high-definition TV - over 250ft (75m) from the source. It is capable of transmitting high-resolution HD video up to 1080p. Controlling a video source is easy with the devices bi-directional IR extension. Whether it's for a home entertainment system or a commercial installation, the HDX-LX delivers flexibility and control.
- Supports resolutions up to 4K Ultra HD (@30Hz)
- Extends HDMI output over one CAT5 UTP cable
- Extends IR control signals for remote control
- Delivers uncompressed HD video up to
- 1080p@60Hz@48bits and 3D
- Data signals up to 3.4Gbps
- HDMI 1.3 and HDCP compliance
- IR support for IR-W100-EYE and IR-W100-LED
- Transmits high-quality Dolby TrueHD, DTS-HD MA audio signals
- Technology
IR Accessories Supported
- IR-W100-EYE External Infrared Receiver (IR range of 10-30 feet)
- IR-W100-LED IR Emitter (6 foot single LED)
- Transmits High-Quality Dolby TrueHD, DTS-HDMA Audio Signals
- Transmits 4K Resolution Video up to 250 ft
- HDMI 1.3 and HDCP Compliance
- Uses Bi-Directional IR Communication
- Data Signals up to 3.4Gbps
- Uses HDBaseT Technology
- Delivers Uncompressed HD Video up to 1080p/60Hz and 4K/30Hz 3D
- Extends IR Control Signals for Remote Control
- Extends HDMI Output over one Cat5e/6 Cable
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.90"
Transmitter Width: 2.90"
Transmitter Depth: 3.70"
Receiver Height: 0.90"
Receiver Width: 2.90"
Receiver Depth: 3.70"
Transmitter Weight (Approximate): 4.23 oz
Receiver Weight (Approximate): 4.23 oz
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Wall Plate
Manufacturer: Smart Audio Video Innovation
Product Model: HDX-LX
Product Name: HDMI + IR Over a Single CAT5 UTP Cable Extender
Manufacturer Part Number: HDX-LXS
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- HDX-LX-TX Transmitter
- HDX-LX-RX Receiver
- 2 x PS5VD2A Power Supplies
Limited Warranty: 1 Year
