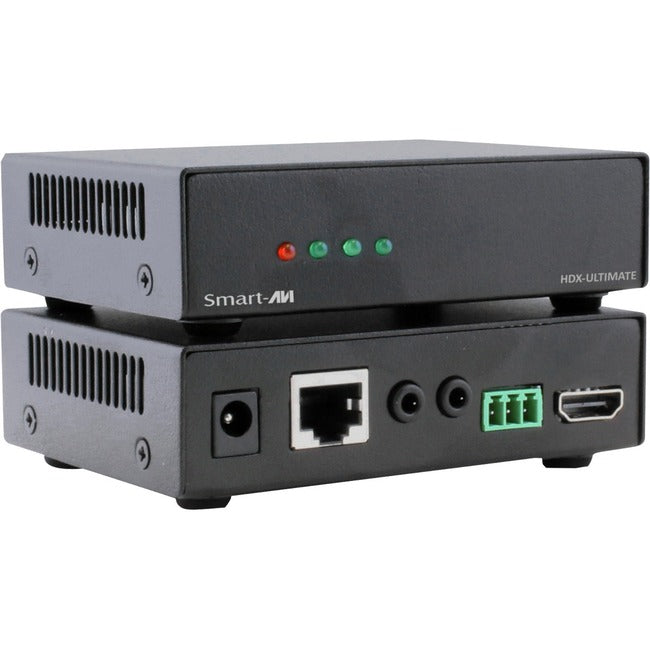

SmartAVI HDMI, IR, and RS-232 PoE Extender over a Single CAT5e/6 Cable
The HDX-Ultimate uses only one CAT5e cable to extend 4K HDMI signals hundreds of feet from their source. The Ultimate's HDBaseT technology is HDTV-ready and PoE, ensuring peak performance even when transmitting ultra-high quality picture resolution. The HDX-Ultimate is a crucial extender for any system, and works in tandem with SmartAVI matrixes for robust routing configurations. Control and extend setups up to 300 ft per side, and 450 ft when both are powered. Plus, with RS-232 and IR remote control, taking command is convenient and easy every time!
Whether it's for a home entertainment system or a commercial installation, the HDX-Ultimate delivers flexibility and control. Don't let the distance bring your system down: let the HDX-Ultimate extend your reach today!
- Rack optional
- LED status indicators
- Bi-directional IR and RS-232 control
- HDCP compliant; EDID learning
- Up to 10.2 Gbps ultra-high bandwidth
- (1) HDMI output for HDTV support
- Supports 1080p/60fps and 4K/30Hz resolution
- Powered over Ethernet (PoE)
- CAT6 extends signals over 450ft
- Supports POE: Can be powered by TX or RX
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1.13"
Transmitter Width: 5"
Transmitter Depth: 4.13"
Receiver Height: 1.13"
Receiver Width: 5"
Receiver Depth: 4.13"
Transmitter Weight (Approximate): 9.60 oz
Receiver Weight (Approximate): 9.60 oz
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Wall Mountable
Manufacturer: Smart Audio Video Innovation
Product Model: HDX-ULT
Product Name: HDMI, IR, and RS-232 PoE Extender over a Single CAT5e/6 Cable
Product Line: HDX-Ultimate
Manufacturer Part Number: HDX-ULT-S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- HDX-ULT-RX Receiver
- HDX-ULT-TX Transmitter
- Power Supply
Limited Warranty: 1 Year
