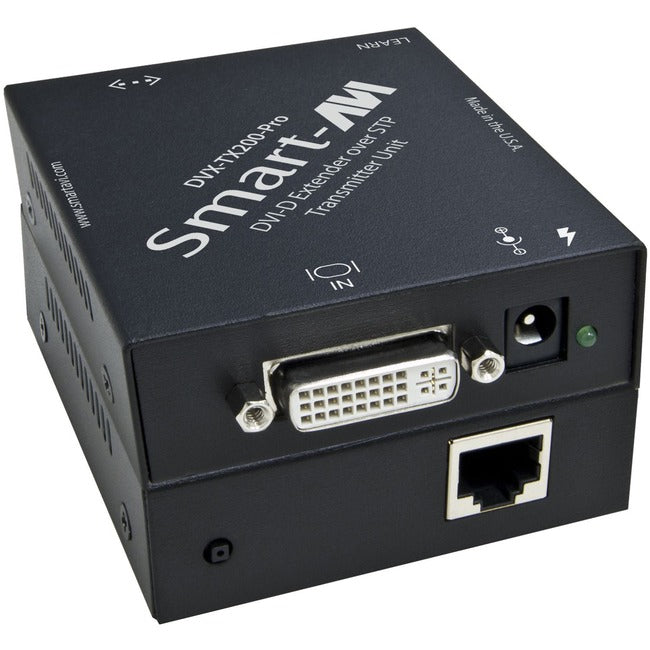

Smartavi Dvi-D Cat6 Stp Extender With Reclocking

SmartAVI DVI-D CAT6 STP Extender with Reclocking

The DVX-200-Pro a single-link DVI-D extender that boosts DVI-D HD video signal ranges up to 250 feet via twisted-pair (UTP) CAT5 cables. High Definition DVI-D Extension Featuring impressive signal extension up to 250 feet from a DVI-D video source, the DVX-200-Pro support uninterrupted 1080p (1920x1080) Full HD resolution picture delivered at high speeds with zero pixel loss. The DVX-200-Pro also offers fully functional DDC display learning for optimized output, as well as a plug-and-play design which makes it easy to install for users of all technical proficiencies. Cost-Efficient Cabling, Top-Notch Extension The DVX-200-Pro uses popular and reliable UTP CAT5 cabling to extend the range of DVI-D video signals. UTP CAT5 cables are inexpensive and feature stronger signal protection than single chord CAT5 extension cables. Better yet, the DVX-200-Pro excels at extending HD video content in environments like restaurants, entertainment venues, retail stores, schools, and home entertainment systems: for cost-conscious, powerful DVI-D extension, choose the DVX-200-Pro by SmartAVI!

Features

• Supports DVI-D single-link sources
• Supports High Resolution 1920x1200 60Hz WUXGA
• Dedicated switch to learn any DDC
• Full reclocking for the receiver regenerates digital signal producing top signal quality
• Extends up to 250ft (275ft with high quality CAT6 STP)
• Supports Mac, PC, and Linux DVI
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• Compatible with all major KVM switches
• Data recovery for digital video
• Plug-and-play

• Compatible with all major KVM switches


• Compatible with all operating systems


• DDC from internal table for Mac/PC


• Uses universal DVI Single Link connectors


• Zero pixel loss with TMDS signal correction


• Dedicated switch to learn any DDC


• Supports Mac, PC, and Linux DVI


• Supports High Resolution 1920x1200 60Hz WUXGA


• Supports DVI-D single-link sources

Product Type: Video Extender Transmitter/Receiver
Transmitter Height: 1"
Transmitter Width: 2.90"
Transmitter Depth: 3.40"
Receiver Height: 1"
Receiver Width: 3.70"
Receiver Depth: 3"
Transmitter Weight (Approximate): 3.20 oz
Receiver Weight (Approximate): 6.40 oz
Country Of Origin: United States
Brand Name: SmartAVI
Manufacturer: Smart Audio Video Innovation
Product Model: DVX-200-PRO
Product Name: DVI-D CAT6 STP Extender with Reclocking
Manufacturer Part Number: DVX-200-PROS
Manufacturer Website Address: http://www.smartavi.com
Package Contents:

• 1 x DVX-TX200-Pro Transmitter
• 1 x DVX-RX200-Pro Receiver
• CCDVIMM06 Cable
• 2 x PS5VDC2A Power Supply
• 1 x Quick Start and Installation Guide
