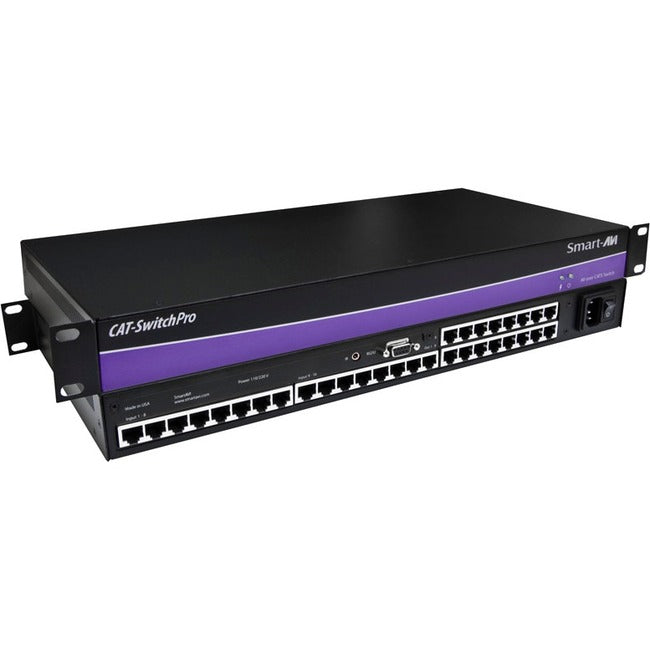

SmartAVI CAT5 Audio/Video and IR/RS232 16IN X 16OUT Matrix with RS-232 Control
For WUXGA, Component Video, Composite Video and S-Video with full stereo
audio support and full IR/RS232 non-blocking matrix switching. Also supports pass-through IR and RS-232 for remote control of compliant devices.
Switch up to 16 remote devices to 16 remote displays located up to 1,000 feet away.
- Supports high resolution video up to 19201200.
- High quality audio switching.
- Infrared, RS232 and TCP/IP control.
- Pass-through IR and RS-232 for remote device control.
- PC Windows software control.
- Integral UTP distribution.
- 1U rackmounted chassis.
- Uses easy to install, inexpensive CAT-5/5e/6/7/8.
- Maximum extension of 1,500 feet (500m) between the local and remote units.
- HDTV compatible. (720p, 1080i,1080p)
- 300 MHz bandwidth.
- Compatible with VGA, XGA, Sun, MAC and SGI.
- Sync Format / Polarity Preservation.
- Compatible with Line Level Stereo Audio Signals.
- High ground loop immunity.
- Built-in power surge and transient protection.
- Designated trimmer in the remote unit to compensate for length
- Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
- Quickly and easily connect with the display
- Up to 1920 x 1200 video resolution
Product Type: Audio/Video Switchbox
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Rack-mountable
Manufacturer: Smart Audio Video Innovation
Product Model: CSWP16X16S
Product Name: CAT5 Audio/Video and IR/RS232 16IN X 16OUT Matrix with RS-232 Control
Product Line: CATSwitchPro
Manufacturer Part Number: CSWP16X16S
Manufacturer Website Address: http://www.smartavi.com
Limited Warranty: 1 Year
Weight (Approximate): 22 lb
