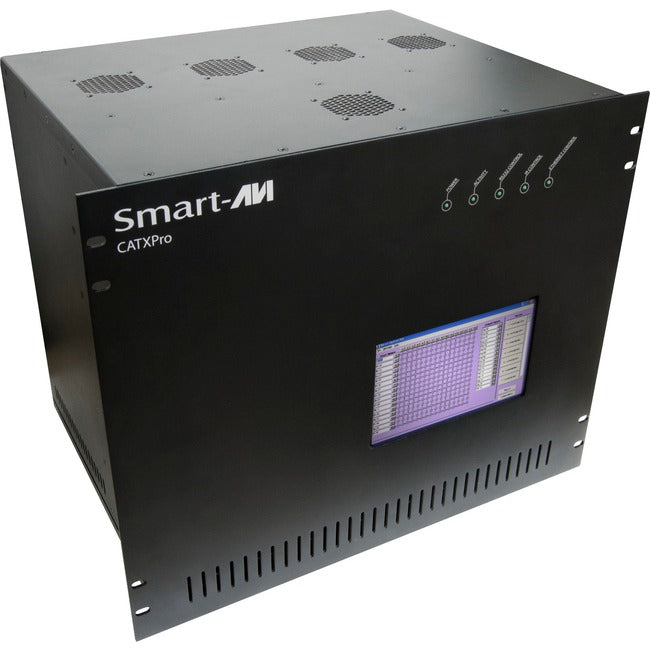

SmartAVI CAT5 Audio/Video and IR/RS232 16 IN X 64 OUT Matrix with RS-232 Control
CATXPro routes audio, video, IR and RS/232 signals from several different video sources out to multiple displays (projectors, monitors, etc.) and speakers via inexpensive Cat5/6 UTP cable.
CATXPro is capable of connecting to as many as 16 video sources via transmitters and 16 video displays via receivers with a maximum extension of 1,000 feet between the transmitter and receiver units.
A single audio/video output can be routed to one or multiple destinations. Video is transmitted at a resolution of 1920 x 1200 to insure high resolution images. Buffered video outputs and analog delivery of stereo audio maintains optimum integrity throughout the system. Special remote boxes offer compatibility with Video Composite , UXGA, Component Video and S-Video.
- Quickly switches both video and audio between sources without physical access
- Trouble free connection with display
- Up to 1920 x 1200 video resolution
Product Type: Audio/Video Switchbox
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Rack-mountable
Manufacturer: Smart Audio Video Innovation
Product Model: CSWX16X64S
Product Name: CAT5 Audio/Video and IR/RS232 16 IN X 64 OUT Matrix with RS-232 Control
Product Line: CATXPro
Manufacturer Part Number: CSWX16X64S
Manufacturer Website Address: http://www.smartavi.com
Package Contents:
- CAT5 Audio/Video and IR/RS232 16 IN X 64 OUT Matrix with RS-232 Control
- Software CD
- CCPWR06US Cable
Limited Warranty: 1 Year
Weight (Approximate): 20 lb
