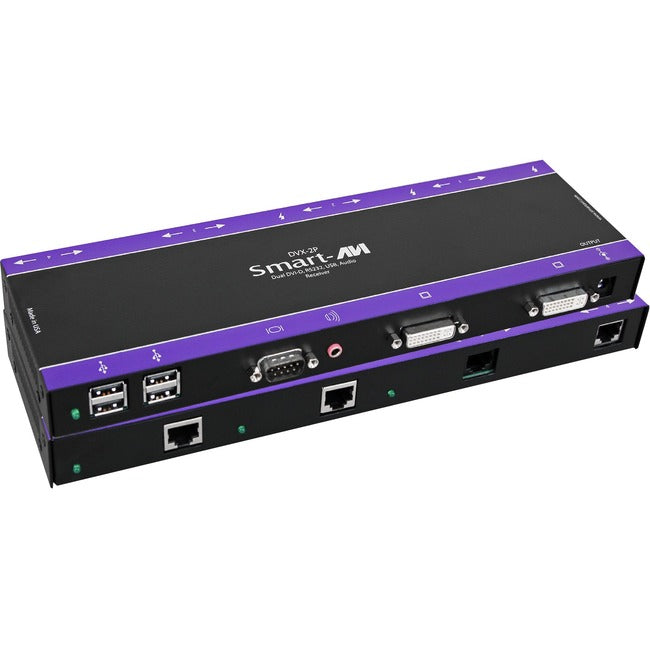

SmartAVI 2 DVI-D, USB, Audio and RS-232 over CAT6 STP Extender

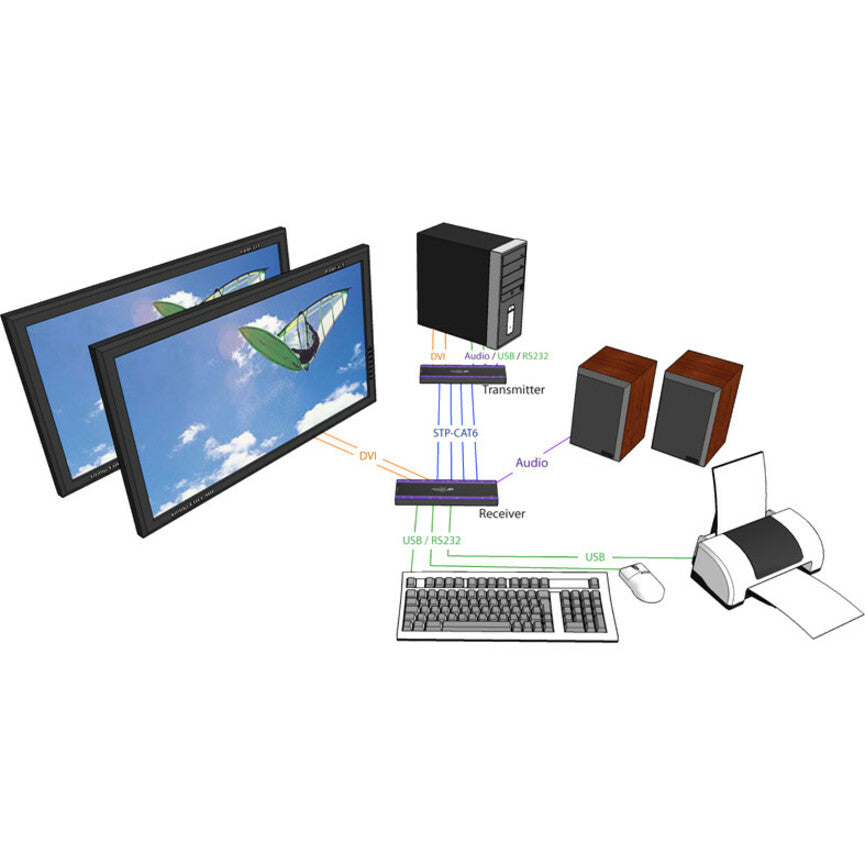

The Dvx-2P can extend two DVI-D, USB 1.1, stereo audio and RS-232 signals up to 275 feet using CAT6 cables.
Cost-Effective, Powerful Extension in Any Environment
A wallet-friendly, robust extension solution, the DVX-2P offers double the stunning video signal extension with two DVI-D ports that broadcast HD content at 1080p (19201080 @ 60Hz). This Full HD extension solution is made even better by cost-efficient and reliable CAT5 cabling, which is one of the most affordable and popular methods of boosting signal ranges on the market. The DVX-2P excels in environments like restaurants, retail stores, entertianment complexes, office buildings, schools, and home entertainment set-ups.
KVM Functionality
The DVX-2P doesn't stop there! In fact, the DVX-2P doubles as a KVM extender, as well, sending USB keyboard-mouse command signals to remote systems for expanded control of digital workflow. KVM functionality is terrific in industrial and data-based applications, and works exceedingly well with one of SmartAVI's KVM switch solutions.
- Uses easy-to-install, inexpensive pair cable
- Supports up to 2 DVI-D sources
- Supports USB 1.1 keyboard and mouse
- Compatible with all major KVM switches
- Rack mount options (19)
- Distance: 275 feet with a CAT6 STP cable
- Compatible with all operating systems
- Internal DCC cables
- Video resolutions up to 1900 x 1200 at 60Hz (1280 x 1024 at 75Hz) up to 225 feet
- Top image quality at all resolutions
Product Type: KVM Console/Extender
Transmitter Height: 1.06"
Transmitter Width: 3.38"
Transmitter Depth: 10.81"
Receiver Height: 1.06"
Receiver Width: 3.38"
Receiver Depth: 10.81"
Country Of Origin: United States
Brand Name: SmartAVI
Form Factor: Rack-mountable
Manufacturer: Smart Audio Video Innovation
Product Model: DVX-2PS
Product Name: 2 DVI-D, USB, Audio and RS-232 over CAT6 STP Extender
Manufacturer Part Number: DVX-2PS
Manufacturer Website Address: http://www.smartavi.com
Platform Supported: PC
Package Contents:
- 1 x DVX-2P-TX Transmitter Unit
- 1 x DVX-2P-RX Receiver Unit
- 2 x Extender Unit Power Supplies
- 1 x Quick Start and Installation Guide
Limited Warranty: 1 Year
