This Smart-AVI SM-HDMV16X-PLUS 16 port HDMI KVM switch is perfect for broadcast facilities, security operations centers, command and control rooms, and digital signage environments requiring simultaneous monitoring and control of multiple HD sources. Our professional HDMI multiviewer and KVM switch delivers:
-
Advanced 16-port HDMI switching with multiviewer display capabilities for comprehensive monitoring
-
Integrated USB 2.0 control enabling keyboard and mouse switching between connected devices
-
Professional audio support with embedded HDMI audio extraction and routing
-
Real-time HD video monitoring with customizable multiviewer layouts and OSD controls
Key Features
-
Comprehensive 16-port HDMI connectivity supporting up to 1080p Full HD resolution
-
Advanced multiviewer functionality with quad, 9-way, and 16-way display modes
- Professional USB 2.0 KVM switching for seamless keyboard and mouse control
-
Embedded audio extraction with analog and digital audio output options
-
Remote control capability with RS-232 and front panel controls
Technical Specifications
| Manufacturer |
Smart Audio Video Innovation |
| Model Number |
SM-HDMV16X-PLUS |
| Type |
16-Port HDMI Multiviewer and KVM Switch |
| HDMI Inputs |
16 x HDMI 1.3 inputs supporting up to 1080p |
| Video Output |
1 x HDMI output, 1 x DVI output |
| USB Control |
USB 2.0 KVM switching with keyboard/mouse support |
| Audio Support |
Embedded HDMI audio extraction and routing |
| Control Methods |
Front panel buttons, IR remote, RS-232 |
| Target Applications |
Broadcast, Security, Control Rooms, Digital Signage |
Frequently Asked Questions
Q: How does the multiviewer functionality work with this KVM switch?
A: This HDMI multiviewer KVM switch can display multiple video sources simultaneously in quad, 9-way, or 16-way layouts on a single monitor, while the integrated KVM functionality allows you to switch keyboard and mouse control between any connected device.
Q: What video resolutions and formats are supported?
A: This 16 port HDMI switch supports resolutions up to 1080p Full HD with HDMI 1.3 compliance, ensuring compatibility with HD cameras, computers, media players, and other professional video sources commonly used in broadcast and control room environments.
Q: Can I extract and route audio from the HDMI sources?
A: Yes, the multiviewer with audio support features embedded HDMI audio extraction, allowing you to route audio from any selected source to analog or digital audio outputs independently of the video switching and multiviewer display.
Q: What control options are available for switching between sources?
A: This professional KVM switch offers multiple control methods including front panel push buttons, IR remote control, and RS-232 serial commands, providing flexible integration options for automated control systems and manual operation in professional environments.

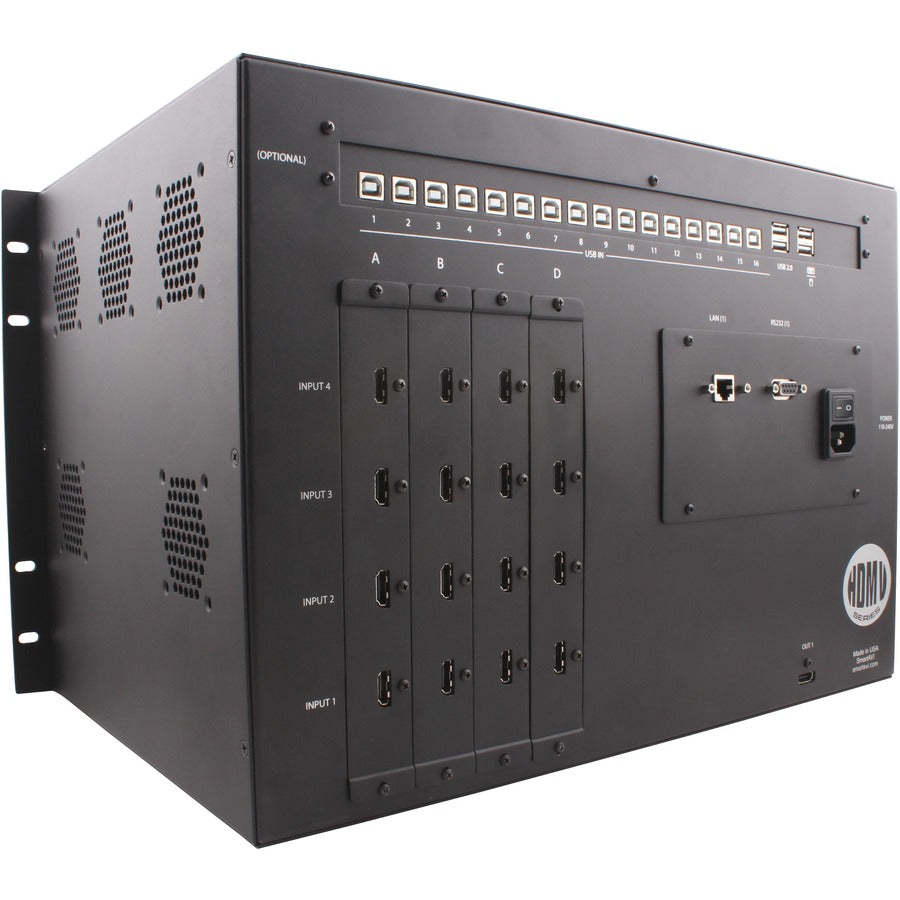

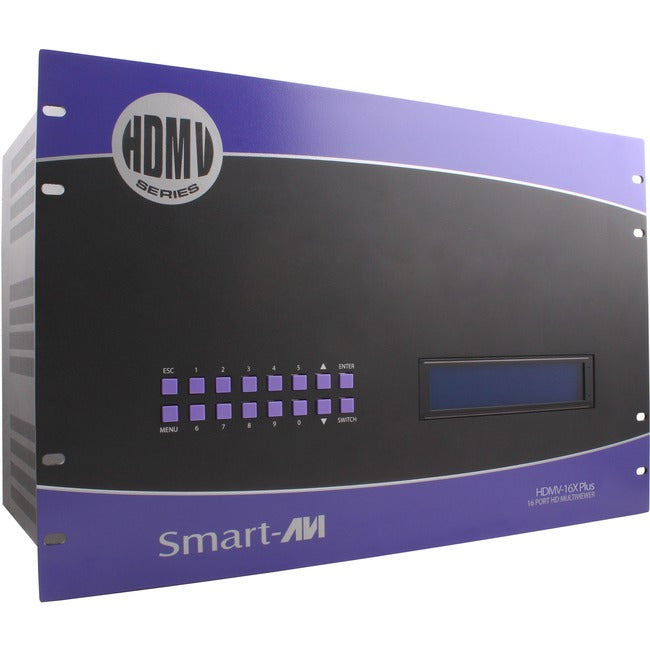

Smart-AVI SM-HDMV16X-PLUS 16-port HDMI multiviewer and KVM switch with USB 2.0 control and audio support for professional applications.
