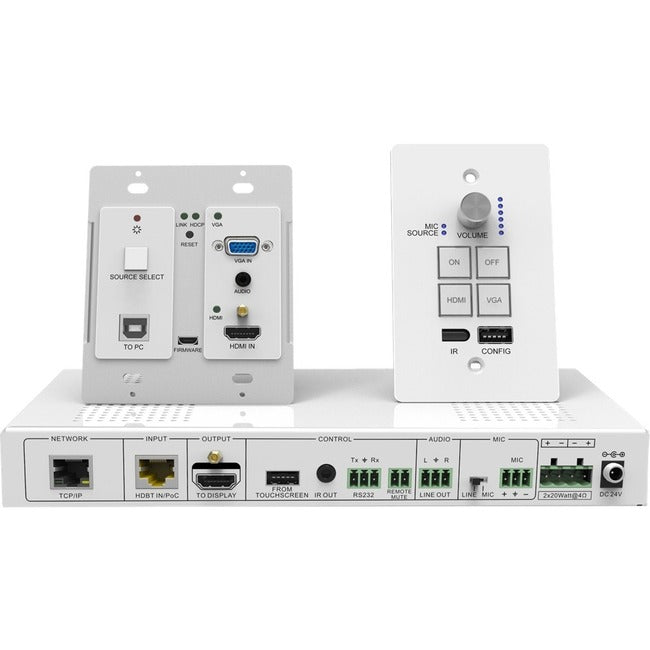

SIIG Wallplate HDMI/VGA HDBaseT Kit
Wallplate design allows you to select and switch between any of the 2 source devices, 1 HDMI and 1 VGA, to display on an HDMI display up to 30 meters with audio output and microphone inputs. Great for education, boardrooms, waiting rooms
- HDBaseT extender with wall plate designed Transmitter and Control Panel and wall mounting Receiver box
- Allows you to switch freely between your HDMI and VGA input device via push button
- IR receiver on the Control Panel controls a projector or other display device at the remote location
- Output resolutions: 1024x768, 1280x720, 1280x800, 1360x768, 1600x1200, 1920x1080, or 1920x1200
- Supports transmission distance up to 98ft (30m) at 1920x1200 @60Hz over CAT cabling
- Supports PoC to power the Transmitter, Control Panel and Receiver via a single power adapter connected to the Receiver
- Easy-to-use Control Panel for convenient device control in showrooms, classrooms, and boardrooms
- Supports IR learning of the display device's (projector, TV, etc.) IR remote for easy device control at the Control Panel
Product Type: Wallplate HDMI/VGA HDBaseT Kit
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: Wallplate HDMI/VGA HDBaseT Kit
Manufacturer Part Number: CE-H23Z11-S1
Manufacturer Website Address: http://www.siig.com
Package Contents:
- Wallplate HDMI/VGA HDBaseT Kit (Transmitter / Receiver / Control Panel)
- Power adapter
- 2 x Receiver mounting ears
- 4 x Screws
- 4 x Receiver rubber feet
- 4-Pin Terminal Block (2x20Watt@4ohm port)
- 3 x 3-Pin Terminal Block Line out/RS-232
- 2-Pin Terminal Block Remote Mute port
- IR emitter
- USB A to B control cable
- White face plate
- User manual
Limited Warranty: 3 Year
