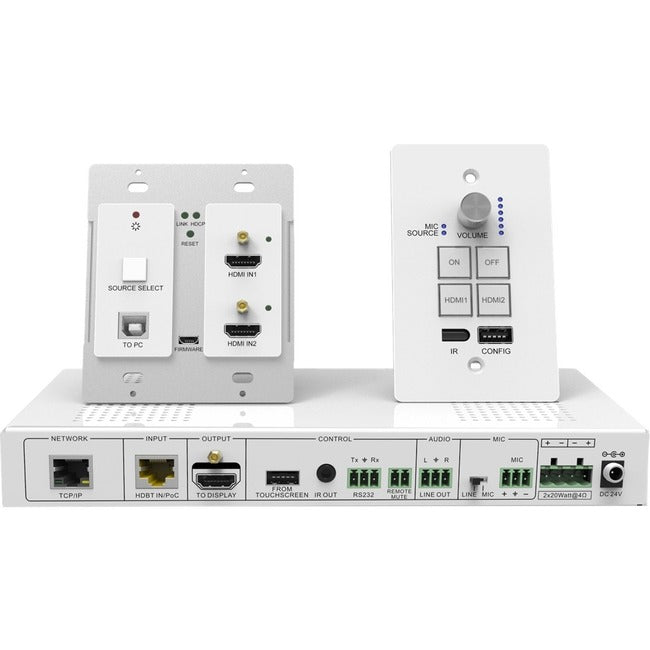

SIIG Wallplate HDMI HDBaseT Kit
Wallplate design allows you to select and switch between any of the 2 HDMI source devices to display on an HDMI display up to 30 meters with audio output and microphone inputs. Great for education, boardrooms, waiting rooms
- Allows you to select and switch between any of the 2 HDMI source devices to display on an HDMI display up to 30 meters away
- Transmits HDMI signal via Cat5e/6 cable up to 30m at 1920x1200 @60Hz resolution
- Convenient and easy-to-use control device for presentation show rooms, classrooms, and boardrooms
- Supports front panel button control and web-based GUI control
- Supports PoC solution, to power the transmitter and control panel at the Receiver over CAT cable
- Receiver provides an RS-232 interface to connect with a projector, and then control it by sending RS-232 commands via web-based GUI
- Supports IR learning of the display device's (projector, TV, etc.) IR remote for easy device control at the Control Panel
Product Type: Wallplate HDMI HDBaseT Kit
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: Wallplate HDMI HDBaseT Kit
Manufacturer Part Number: CE-H23Y11-S1
Manufacturer Website Address: http://www.siig.com
Package Contents:
- Wallplate HDMI HDBaseT Kit
- IR Receiver cable
- IR Remote control (no battery)
- Power adapter
- RS232 cable
- 4 x Screw kit
- 4 x Rubber pads
- User manual
Limited Warranty: 3 Year
