SIIG HDMI HDBaseT Extender with IR/RS-232 Control and PoC - 100m (TX & RX)
SIIG's HDMI HDBaseT Extender with IR/RS-232 Control and PoE - 100m extends HDMI signals at a great distance over an economical Cat5e/6 cable. It delivers HDMI video/audio in 1080p resolution up to 100m and 4Kx2K format with 7.1-channel sound up to 70m. It also transmits additional signals including 100BaseT Ethernet gearing for networking capability and bi-directional IR and RS-232 communication channel to allow remote controllability to the display unit. Unique Power over Cable (PoC) feature is supported to require only a single power adapter for both receiver and transmitter units. This is a cost-effectively long range HDMI extender solution to boost your high quality, High-Definition digital signals from a HDMI source such as HDMI matrix, Blu-ray Disc player, game console, PC, and many more to a HDMI display at a great distance while maintaining signal strength and superior video/audio quality.
Features
- Extends HDMI signals up to 100 meter through a single Cat5e/6/7 cable
- Delivers high-quality HDMI video/audio in 1080p resolution up to 100m and 4Kx2K format with 7.1-channel sound up to 70m
- HDBaseT solution not only transmits uncompressed HDMI signal, it also transmits 100BaseT Ethernet, bi-directional IR, RS-232 and Power over Cable (PoC)
- With PoC feature, only one power adapter is required for both transmitter and receiver units
- Included mounting kit enables you to mount the units in place easily
- Integrated cooling slots dramatically improves heat dissipation for reliable performance and long life
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 3.94"
Transmitter Width: 4.02"
Transmitter Depth: 0.98"
Transmitter Weight (Approximate): 1.34 lb
Product Color: Black
Brand Name: SIIG
Form Factor: Rack-mountable
Manufacturer: SIIG, Inc
Product Name: HDMI HDBaseT Extender with IR/RS-232 Control and PoC - 100m (TX & RX)
Manufacturer Part Number: CE-H22F14-S1
Manufacturer Website Address: http://www.siig.com

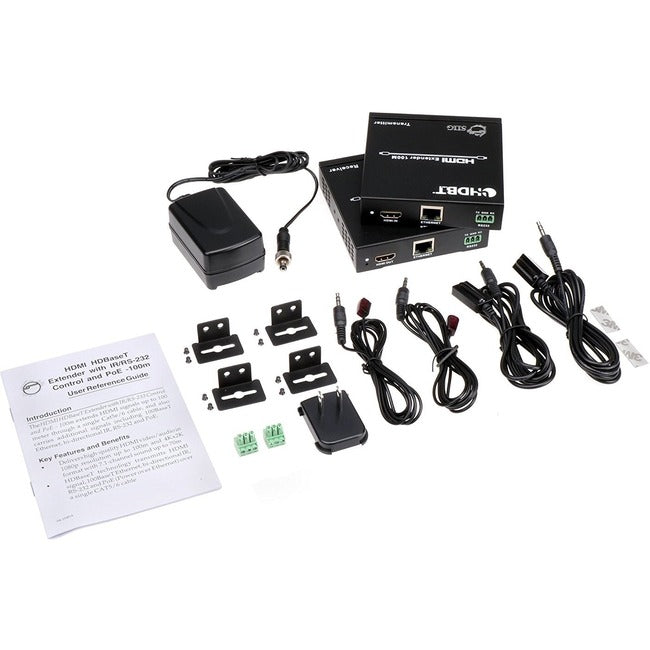

Package Contents:
- HDMI HDBaseT Extender with IR/RS-232 Control and PoC - 100m (TX & RX)
- 2 x IR Blaster Extension Cable
- 2 x IR Receiver Extension Cable
- 2 x Phoenix Contact
- Power Adapter
- Mounting Kit
- User Reference Guide
Limited Warranty: 1 Year
