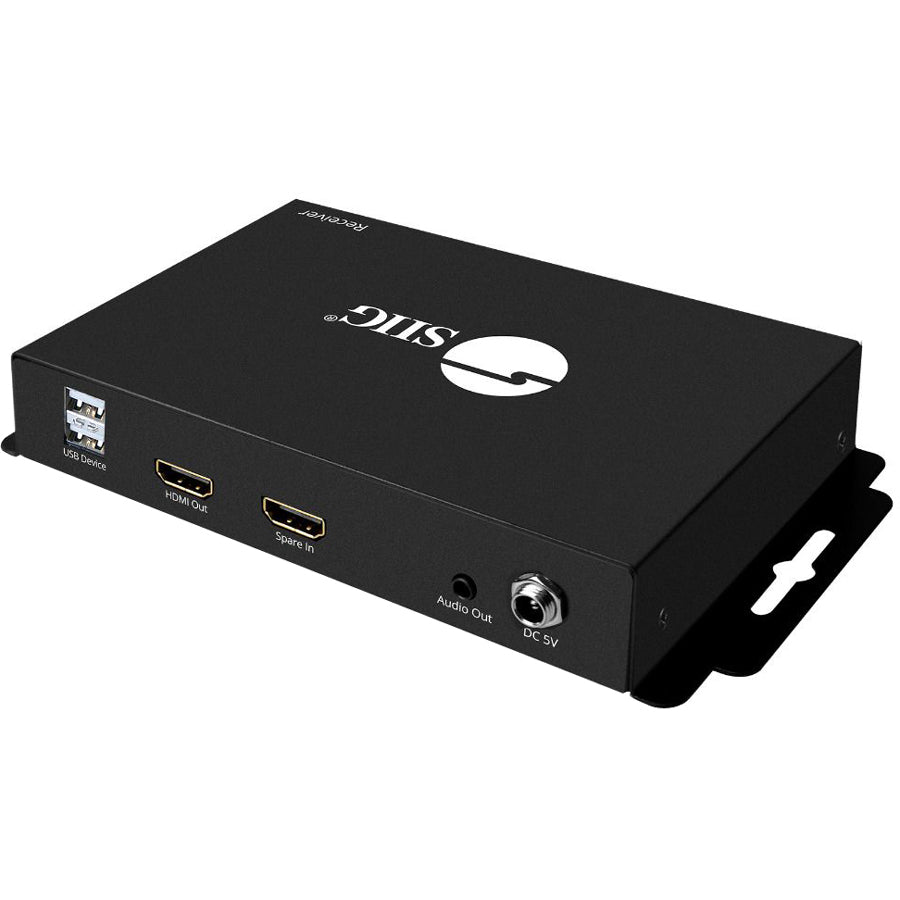

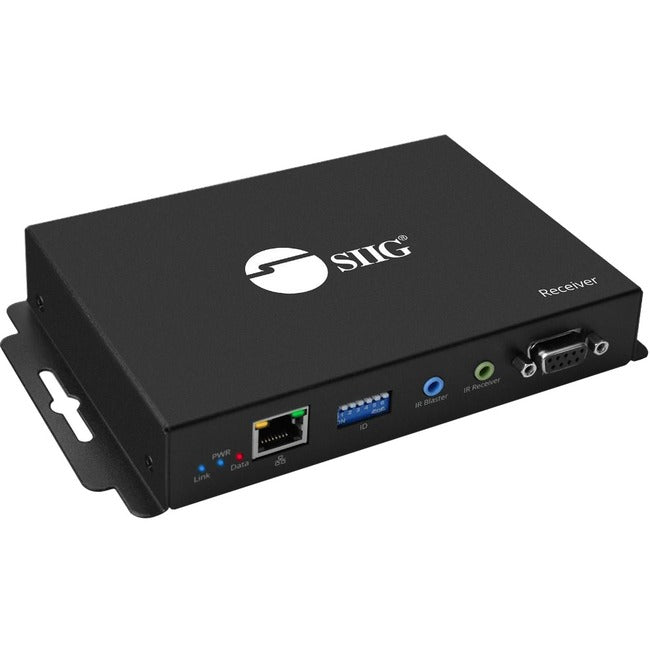

SIIG HDMI 2.0 Over IP Matrix and Video Wall 4Kx2K@60Hz - Receiver
Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly
- HDMI 2.0a and HDCP 2.2 compliant
- Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
- Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch

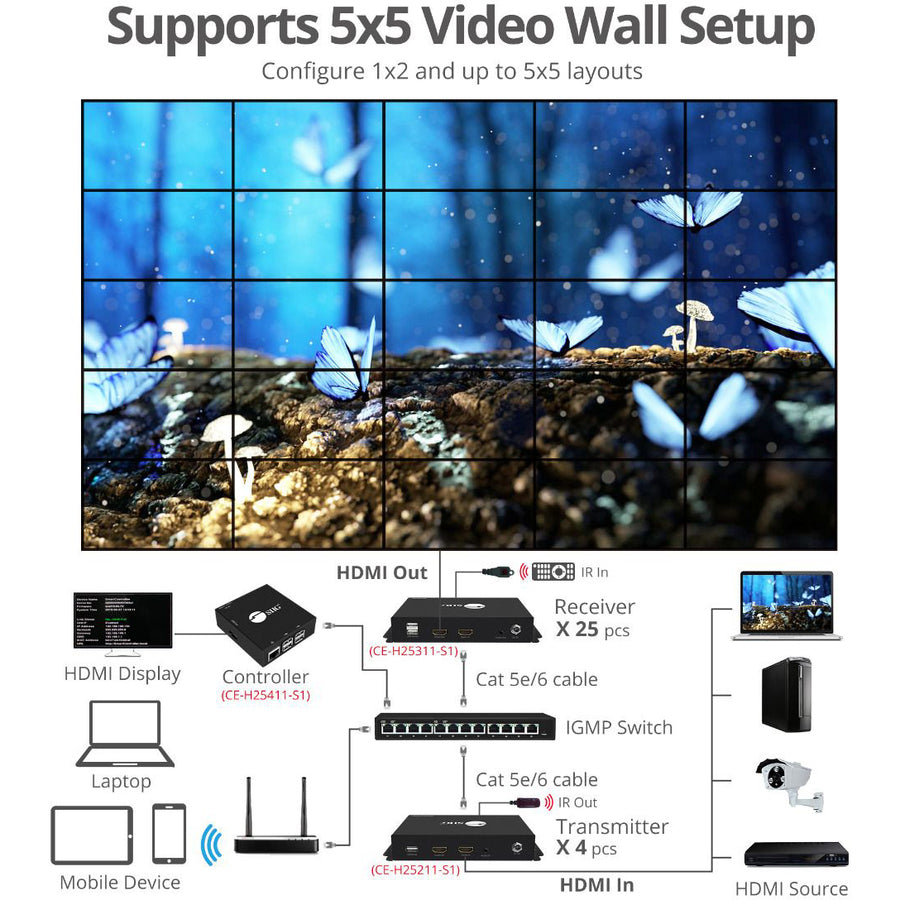

- Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode

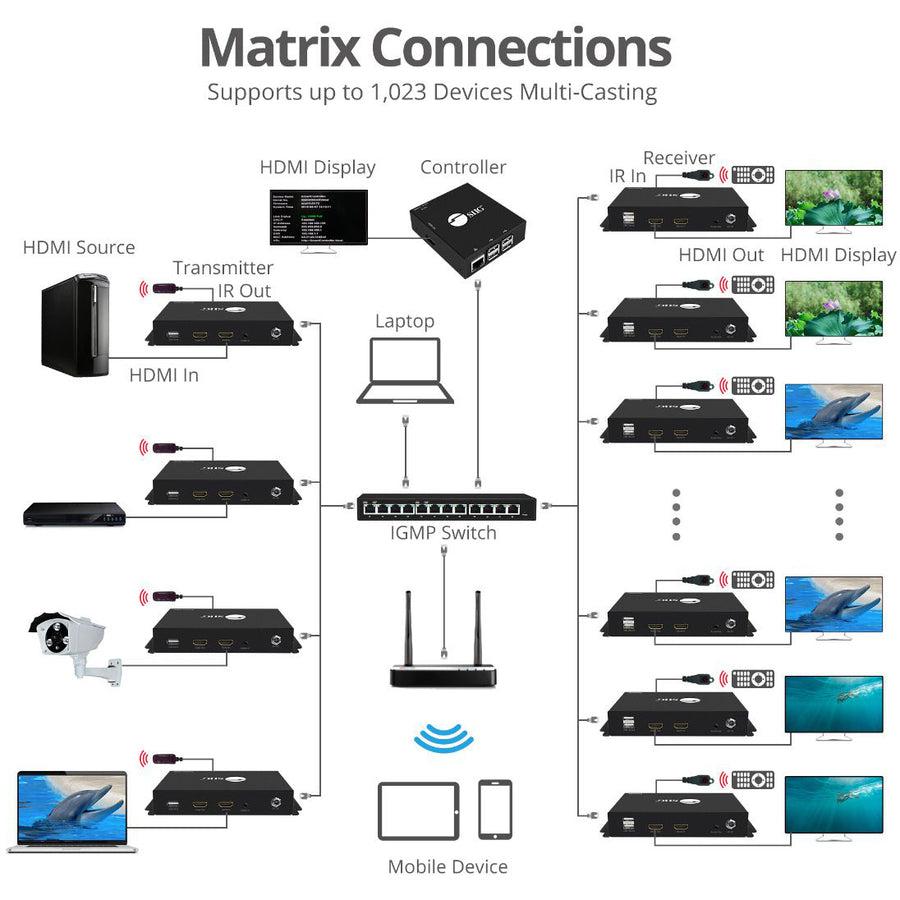

- Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
- Easy DIP switch matching for multi-casting group configuration
- Supports full frequency IR signal from 20KHz to 60KHz
- Full Duplex RS-232 control up to 115,200 bps
- Supports 180° and 270° clockwise image rotation
- Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately
Product Type: Video Extender Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS

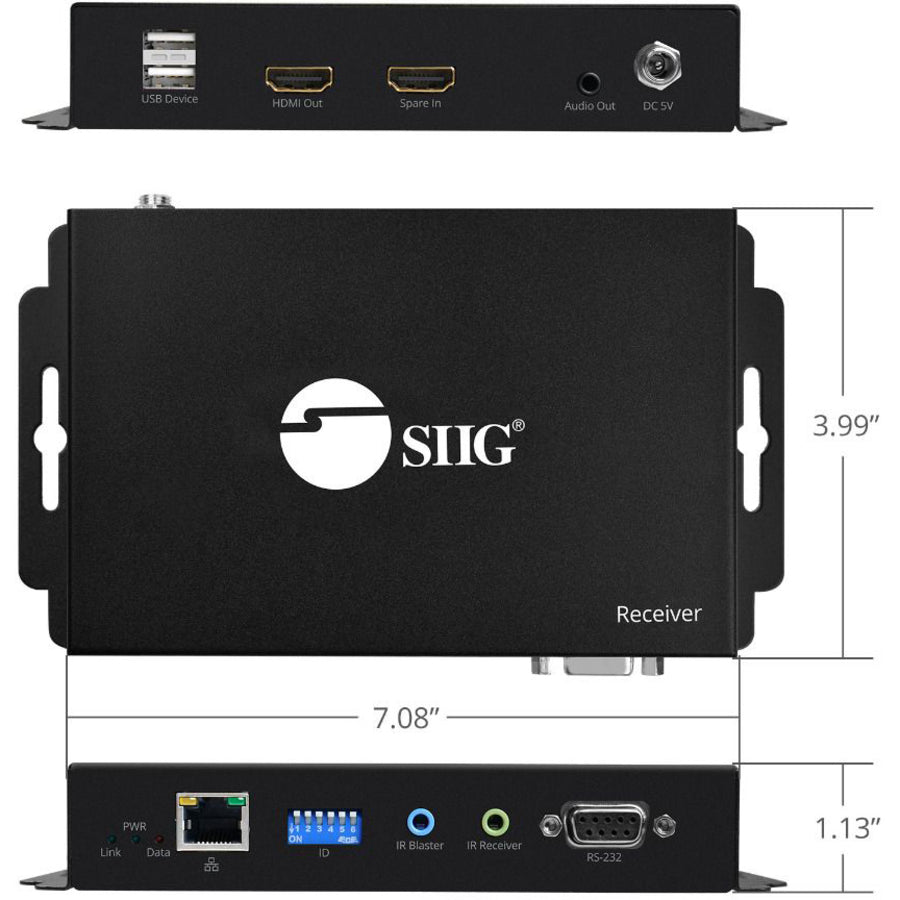

Receiver Height: 1.13"
Receiver Width: 4"
Receiver Depth: 7.09"
Receiver Weight (Approximate): 1.07 lb
Taa Compliant: Yes
Product Color: Black
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 Over IP Matrix and Video Wall - Receiver
Manufacturer Part Number: CE-H25311-S1
Manufacturer Website Address: http://www.siig.com

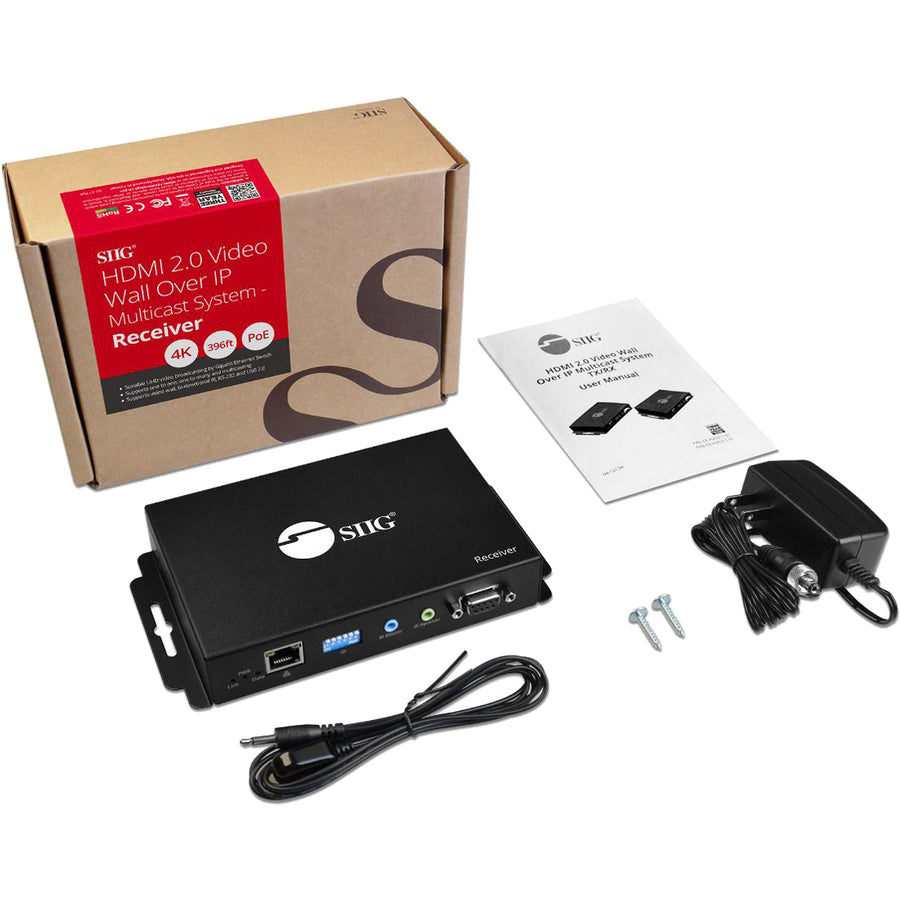

Package Contents:
- HDMI 2.0 Over IP Matrix and Video Wall - Receiver
- Power Adapter 5V/2A
- 1 x IR Receiver Cable
- 2 x Screw Kit
- Insert Card
- User Manual
Limited Warranty: 3 Year
