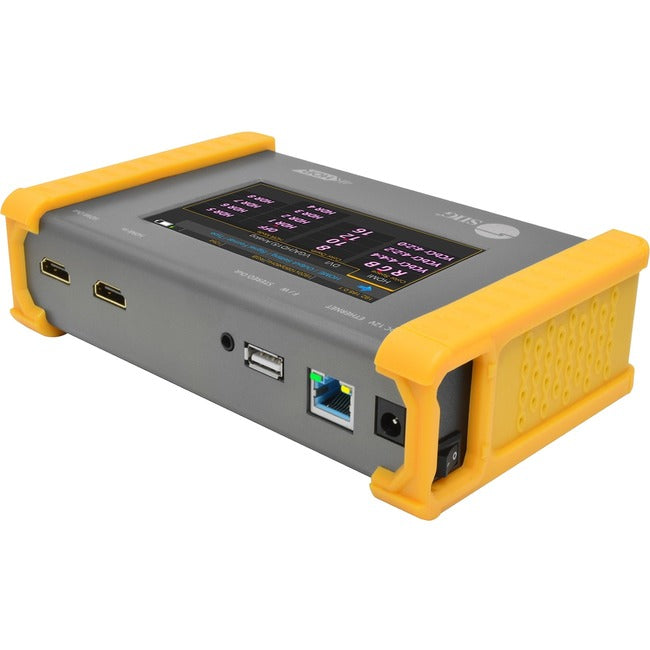

SIIG HDMI 2.0 4K HDR Pattern Generator / Analyzer
Advanced pattern generator with 5 major functions including full bandwidth HDCP 2.2 support is a versatile HDMI tool for AV installers and system integrators

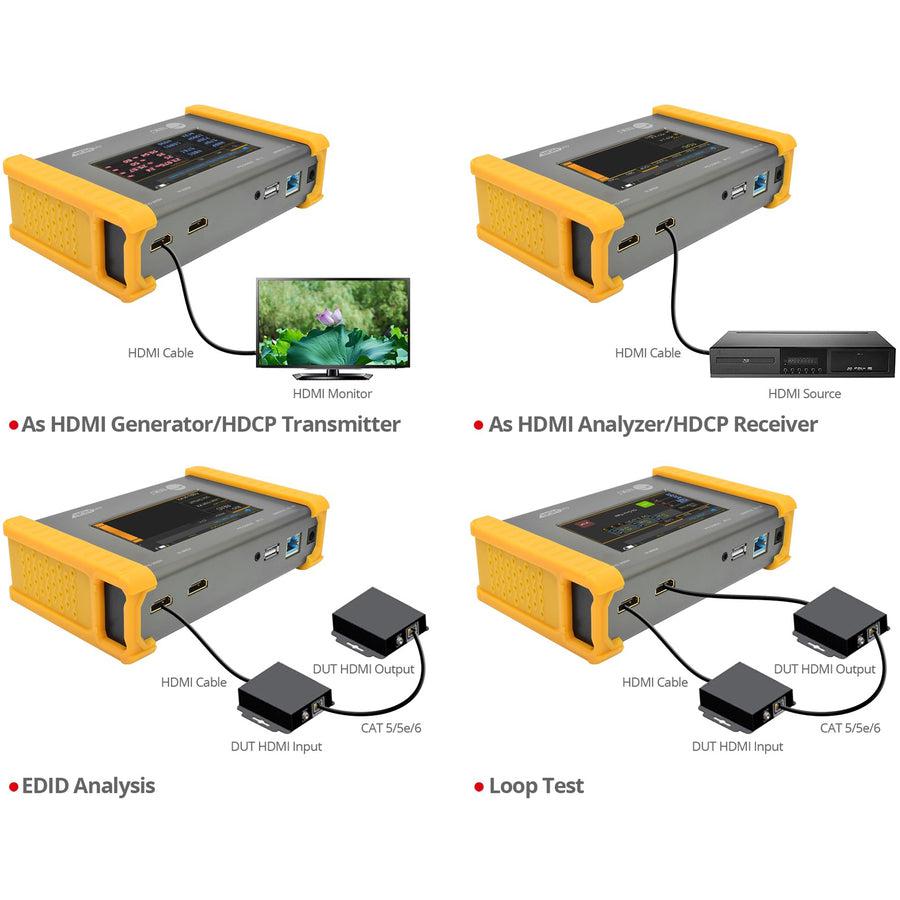

- Major Functions - HDMI Generator/Analyzer/Receiver (Display), HDCP Test, EDID Test, Loop Test, Firmware upgradeable
- HDMI Signal Generator - Compliant with HDMI 2.0a, HDCP 2.2. 18Gbps video bandwidth
- HDMI Resolution Support - 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz YUV 4:2:0 16-bit (HDR)

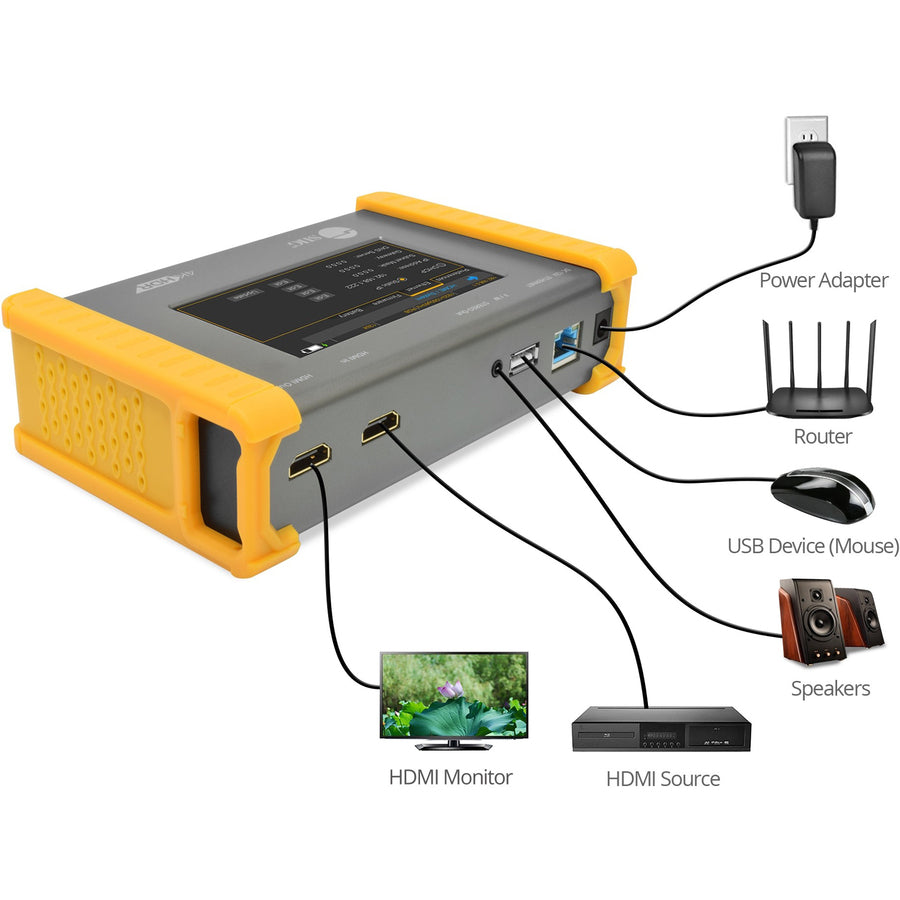

- Finger Tip Control - Built-in 4.3" touch screen, USB mouse and Ethernet to allow users to verify HDMI sources instantly
- Battery Powered - Rechargeable battery for portability. Up to 4 hours operating time at full charge
Product Type: Testing Device
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 4K HDR Pattern Generator/Analyzer
Manufacturer Part Number: CE-H23N11-S1
Manufacturer Website Address: http://www.siig.com

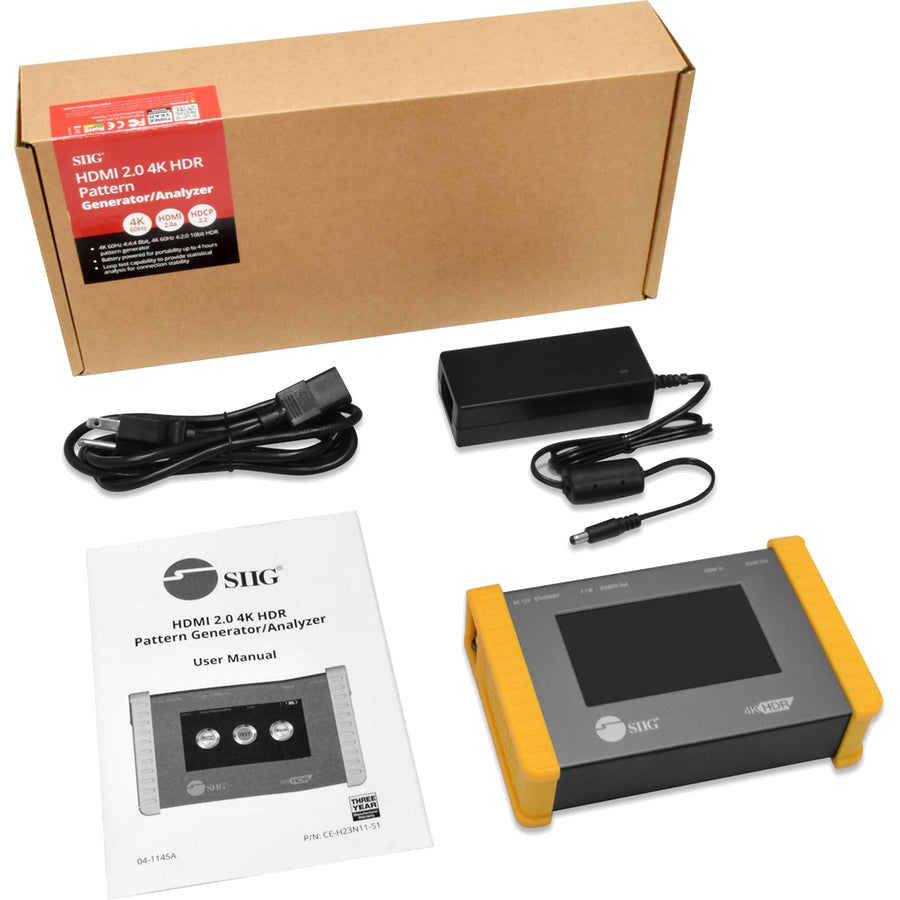

Package Contents:
- HDMI 2.0 4K HDR Pattern Generator/Analyzer
- Power Adapter
- Power Code
- User Reference Guide
Limited Warranty: 3 Year
Weight (Approximate): 1.72 lb
