SIIG HDMI 2.0 4K HDR over HDBaseT Receiver 198ft
Receives HDMI signals over CAT5e/6 cable up to 198ft with resolution auto-scaling, IR control, and Power over Cable support
- Receives Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable

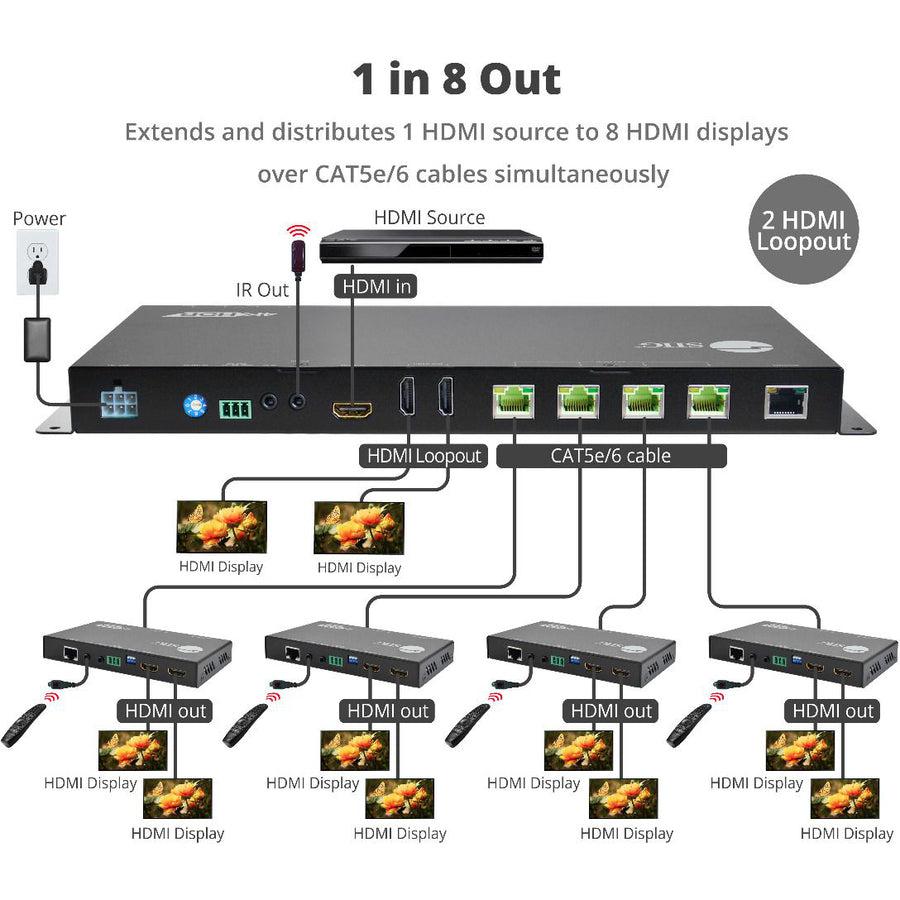

- Provides additional receiver unit for HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling (part# CE-H24N11-S1) sold separately
- Supports 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz HDR YUV 4:2:0 10-bit resolutions
- Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit
- Receiver unit supports 2 HDMI outputs for more display connections
- Supports EDID management for increased device compatibility
- Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility
- Supports full bi-directional IR pass-through signal from 30KHz to 56KHz frequency
Product Type: Video Extender Receiver
Environmentally Friendly: Yes
Environmental Certification: WEEE
Receiver Height: 0.75"
Receiver Width: 2.76"
Receiver Depth: 5.47"
Receiver Weight (Approximate): 6.24 oz
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: HDMI 2.0 4K HDR over HDBaseT Receiver
Manufacturer Part Number: CE-H24P11-S1
Manufacturer Website Address: http://www.siig.com

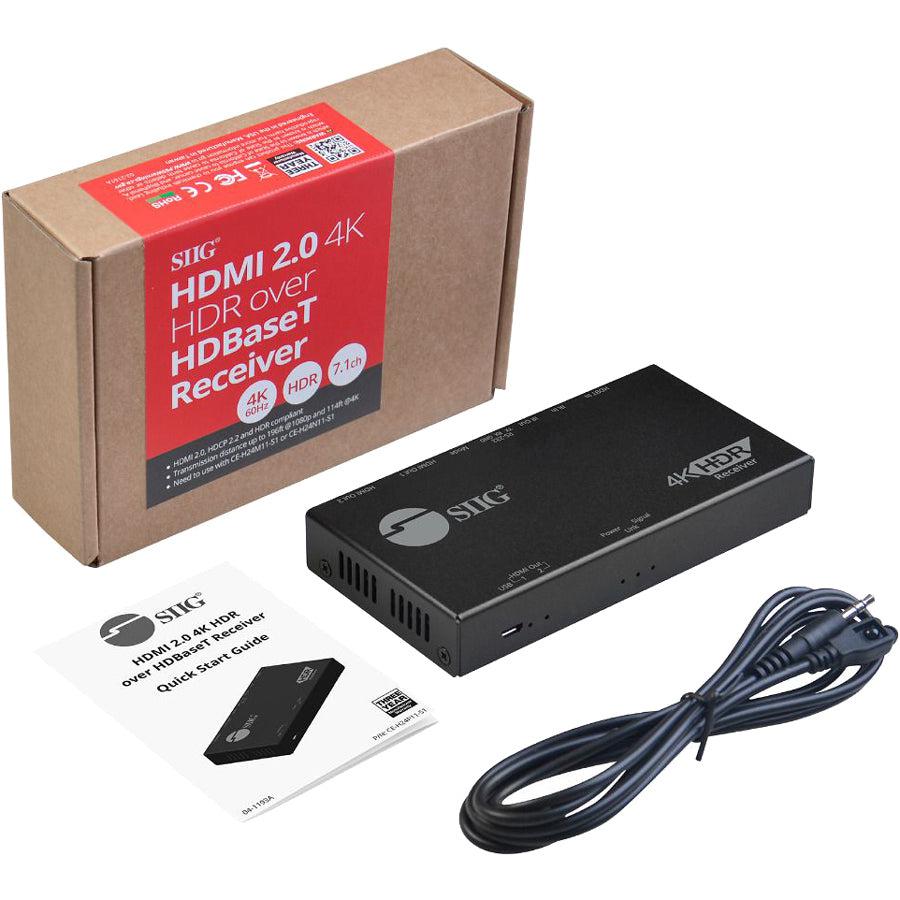

Package Contents:
- HDMI 2.0 4K HDR over HDBaseT Receiver
- IR Receiver Cable
- Terminal Block
- Mounting Kit (Screw kit: 4x20 mm 2pcs, Mounting ears 2pcs, Screw kit: 3x4 mm 4pcs)
- Quick Start Guide
Limited Warranty: 3 Year
