SIIG Full HD HDMI Extender with IR - 164ft Over Cat5e/6
Extends HDMI audio/video signals up to 164ft over Cat5e/6 cable. Supports 480i/480p/720p/1080i/1080p at 60Hz resolutions
- Extends HDMI signals up to 164ft (50m) via a single cost effective CAT5e/6 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup. Note: Extension over 100ft requires 100% copper Cat6 cable
- Delivers high-quality video/audio transmission without compression for optimal performance, supports video resolution up to 1080p@60Hz (Full HD), and 2-channel stereo audio, compatible with HDCP compliant devices and content, HDMI 1.3 and HDCP 1.2 compliant

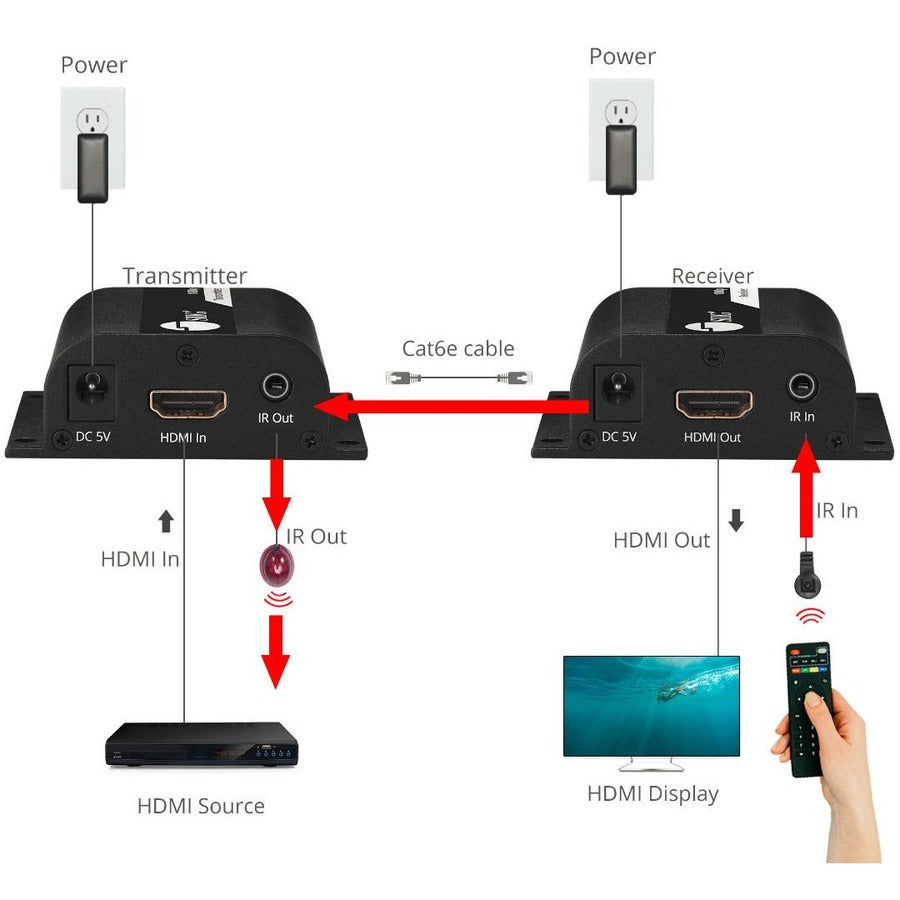

- IR control allows your HDMI source device to recognize remote commands, you can control the HDMI source device from the remote location of your display device with the included IR cables that transmit signals over Cat cable
- Premium metal housing offers excellent heat dissipation, enhances durability, and minimizes EMI/RF interference for long life and dependable performance

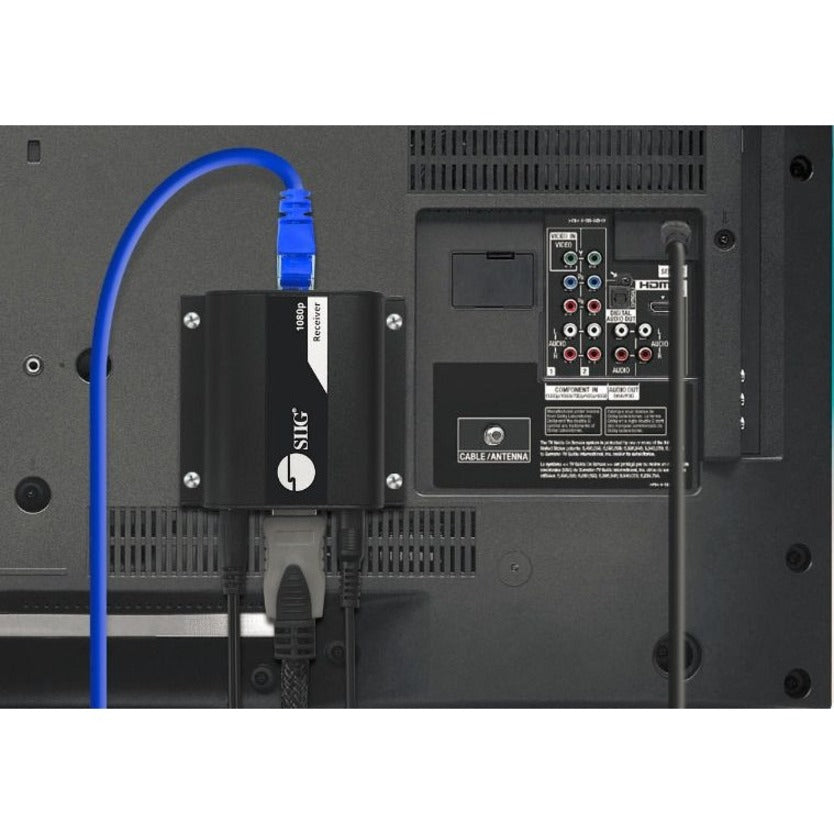

- Easy installation, no driver installation is required, integrated surface mounting bracket allows secure placement
Notes:
- A good quality Cat5e/6 cable is essential in delivering quality content. Cat6 is recommended over Cat5e
- STP (Shielded Twisted Pair) cabling is recommended for cable runs over 50ft
- This extender pair (TX + RX) is point-to-point connection, it does not work through routers or switches
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.97"
Transmitter Width: 2.60"
Transmitter Depth: 2.80"
Receiver Height: 0.97"
Receiver Width: 2.60"
Receiver Depth: 2.80"
Transmitter Weight (Approximate): 3.04 oz
Receiver Weight (Approximate): 2.88 oz
Product Color: Black
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: Full HD HDMI Extender with IR
Manufacturer Part Number: CE-H26111-S1
Manufacturer Website Address: http://www.siig.com

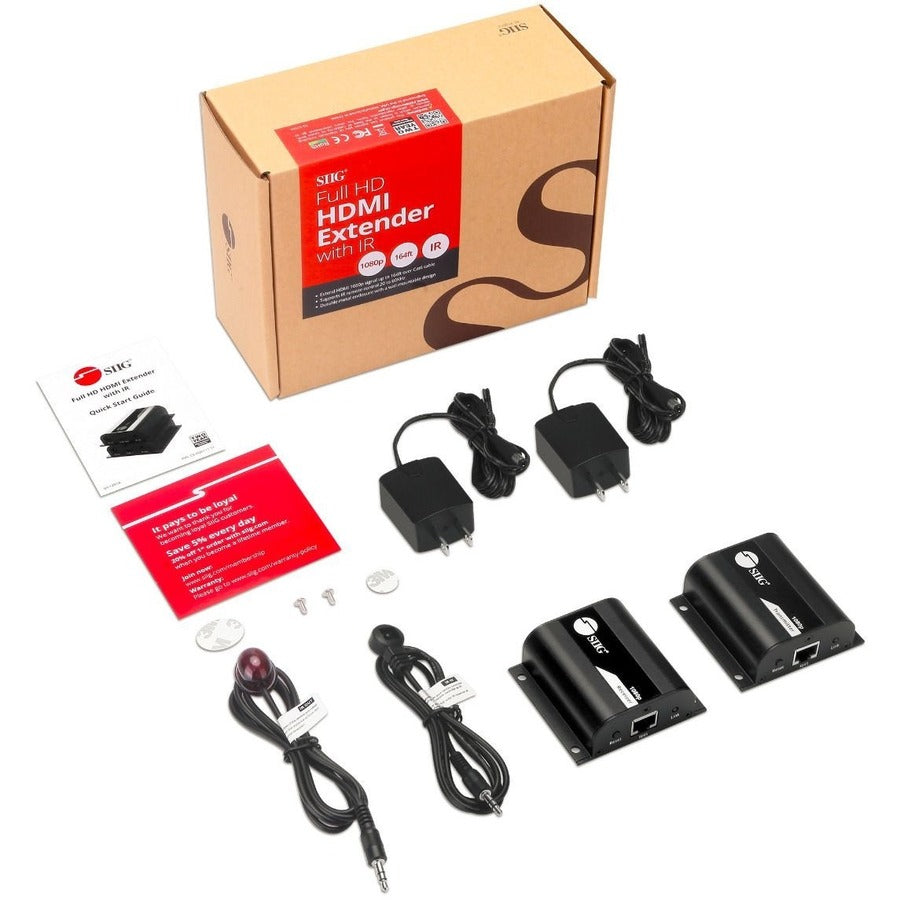

Package Contents:
- 1 x Transmitter Unit
- 1 x Receiver Unit
- 1 x IR Blaster Cable
- 1 x IR Receiver Cable
- 2 x Power Adapter
- User Reference Guide
Limited Warranty: 2 Year
