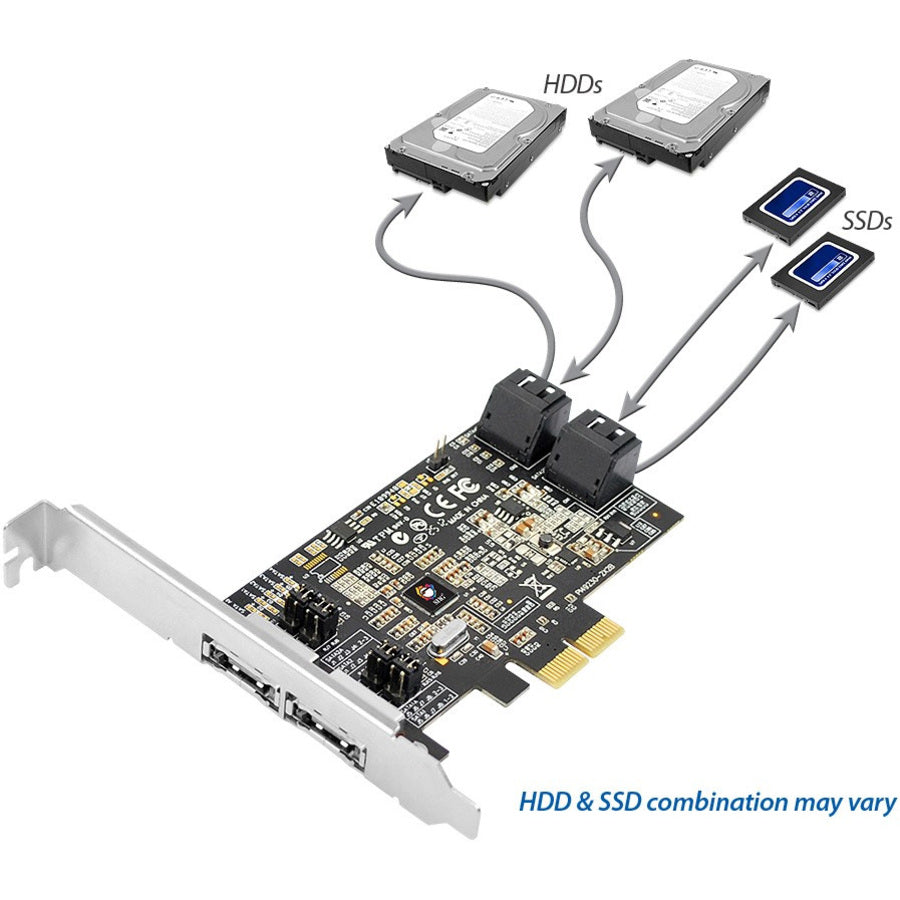

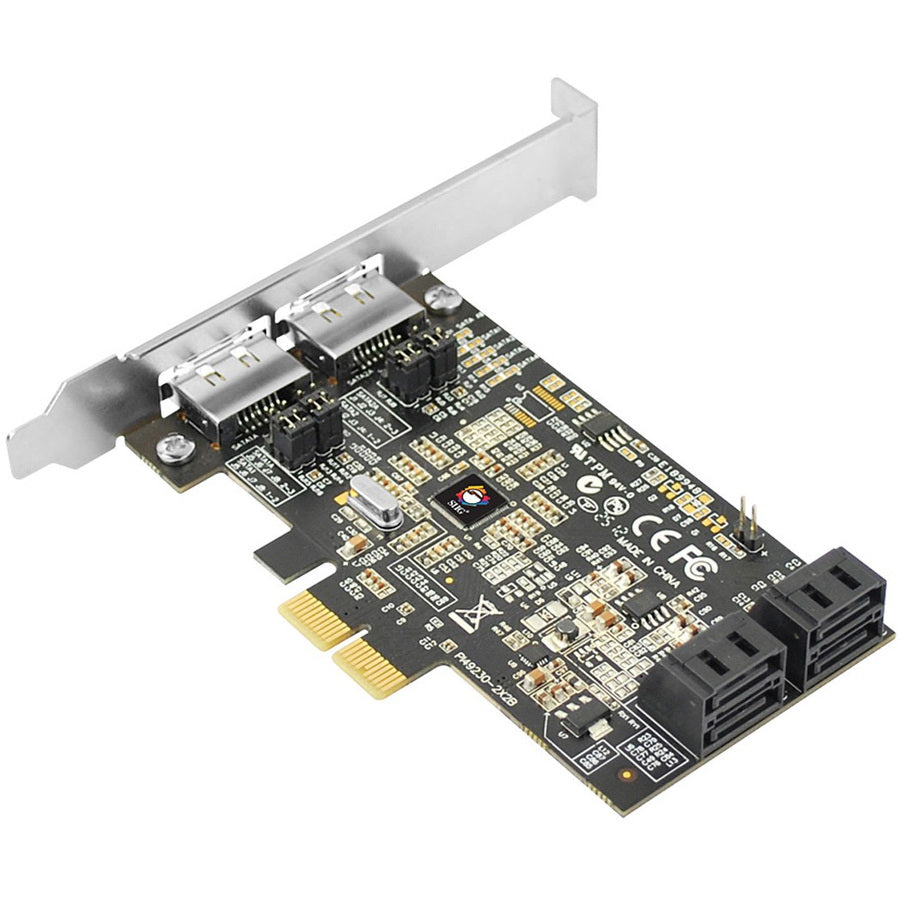

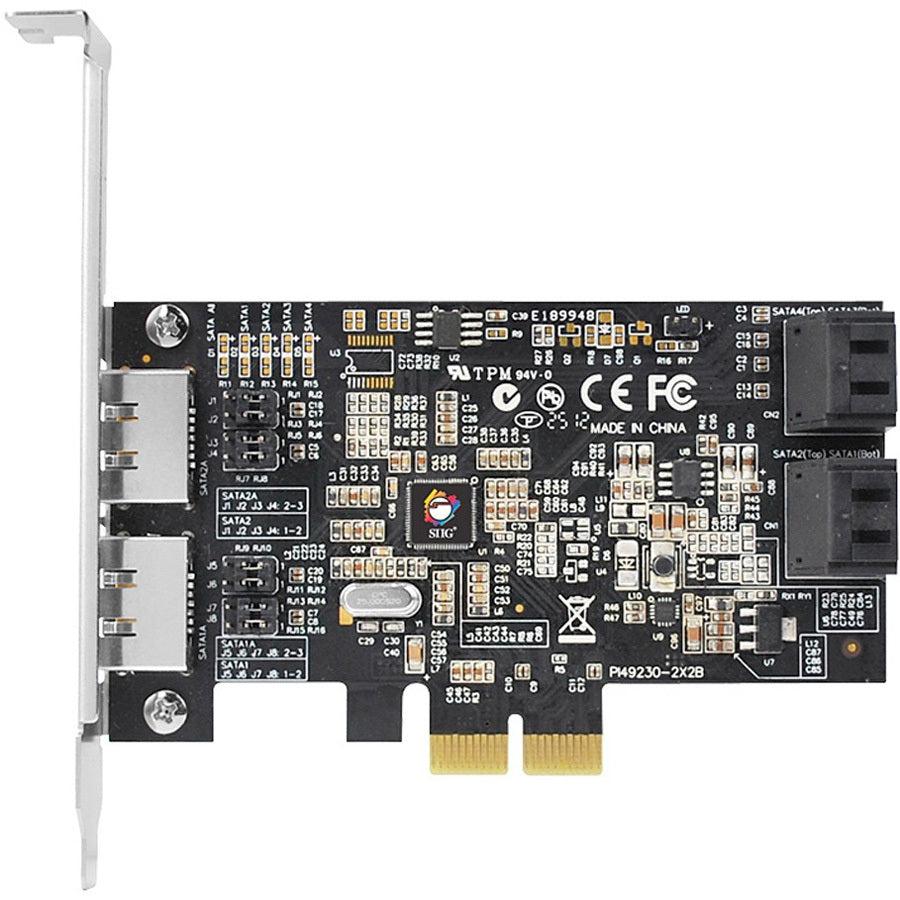

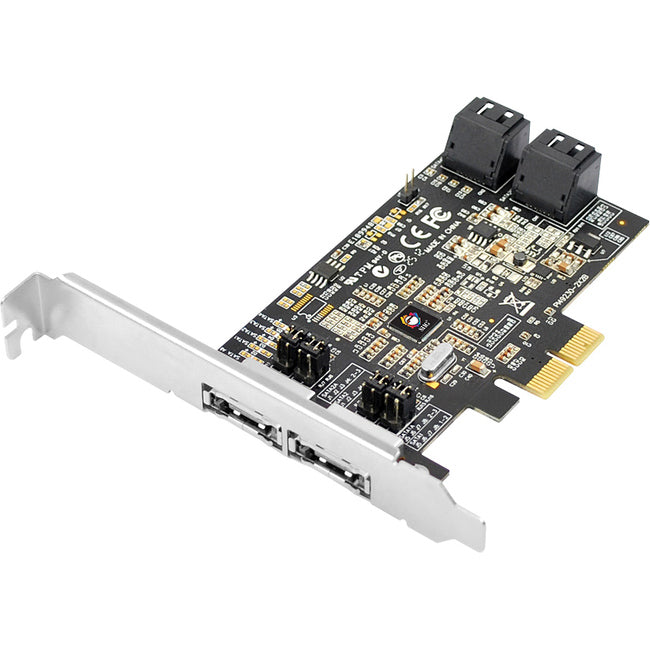

SIIG DP SATA 6Gb/s 4-Port Hybrid PCIe
- Add 4 SATA 6Gb/s channels to your PCIe system
- Flexible port configurations:
- 4 internal
- 2 external and 2 internal
- 1 external and 3 internal
- Built-in the latest breakthrough Hybrid HyperDuo tiering technology
- An economical way to enable SSD performance at 1/3 the cost
Note: HyperDuo automatic storage tiering is only compatible with Windows XP, Vista, 7 and 8. This feature is not fully supported in the Server OSes - Improve system performance to reduce boot up time of system with demanding applications such as graphic editing tools, gaming, media player and more
- Allow large data to be stored on the high capacity HDDs for cost saving
- Fully automated HyperDuo tiering technology, no need to monitor hot/cold data manually
- HyperDuo mode supports Safe mode and Capacity mode
- Supports Port Multiplier FIS-based and Native Command Queuing (NCQ)
Note: Only one Port Multiplier is supported at any one time. Supports up to 4 drives connected via Port Multiplier plus 3 single drives for 7 drives total - Hardware RAID (RAID 0, 1, 10) to offload the host CPU for max performance
- Inbox drivers enable users to take advantage of OS commands like TRIM to extend the life of SSDs for maximum durability
- Installs in standard height or low profile chassis with included brackets
- Works with the latest 6Gb/s SATA HDDs and backwards compatible with 3Gb/s and 1.5Gb/s HDDs
Product Type: SATA Controller
Environmentally Friendly: Yes
Environmental Certification: RoHS
Card Height: Dual-profile
Brand Name: SIIG
Form Factor: Plug-in Card
Manufacturer: SIIG, Inc
Product Name: DP SATA 6Gb/s 4-Port Hybrid PCIe
Manufacturer Part Number: SC-SA0R11-S1
Manufacturer Website Address: http://www.siig.com
Packaged Quantity: 1
Platform Supported: PC
Package Contents:
- DP SATA 6Gb/s 4-Port Hybrid PCIe

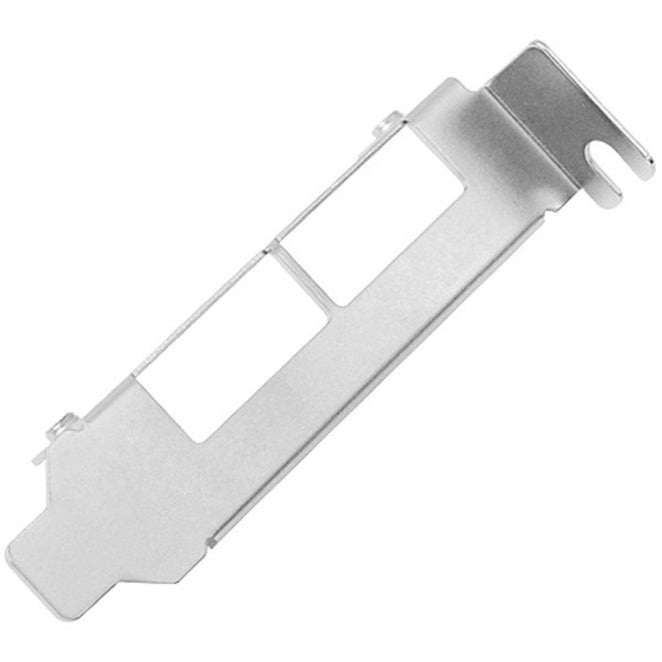

- Spare Low Profile Bracket

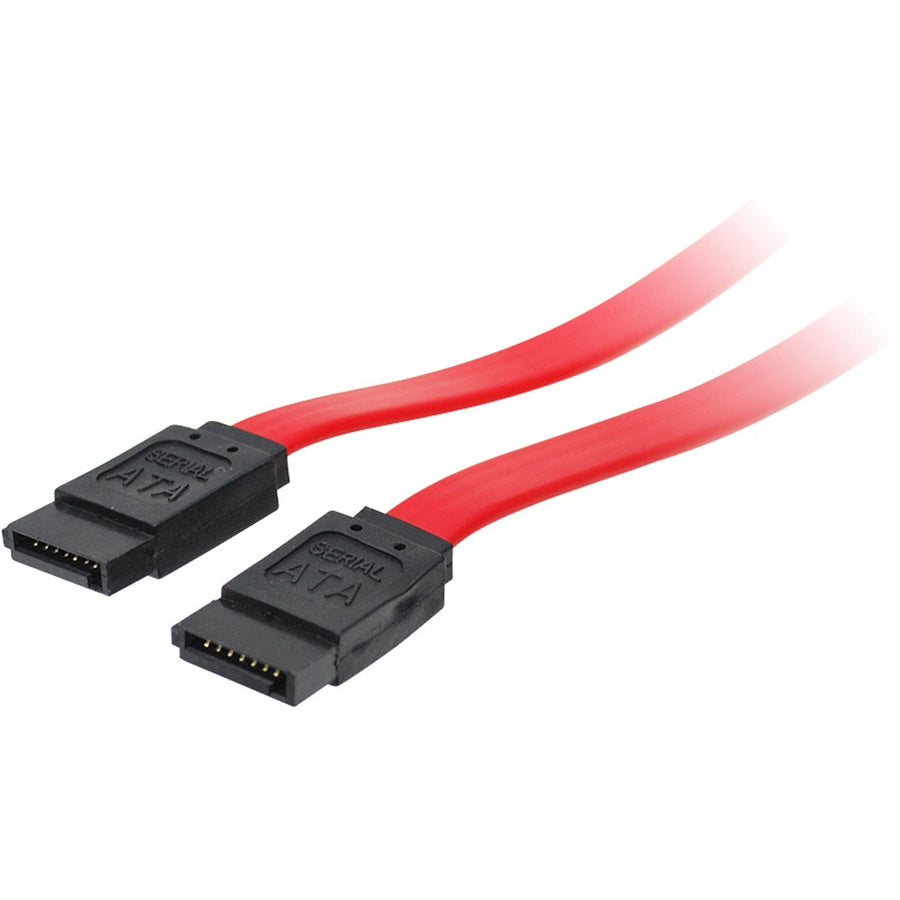

- 2 x SATA Data Cable
- Driver CD
- Installation guide
Limited Warranty: 5 Year
Thickness: 0.8"
Weight (Approximate): 2.08 oz
