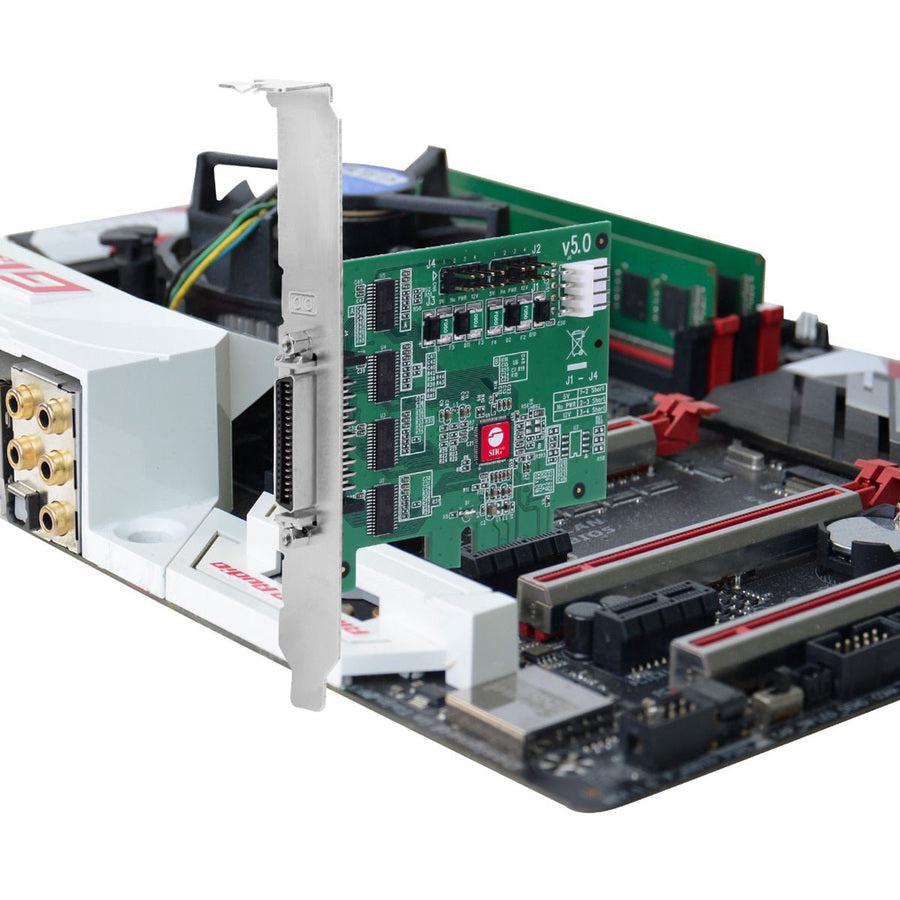

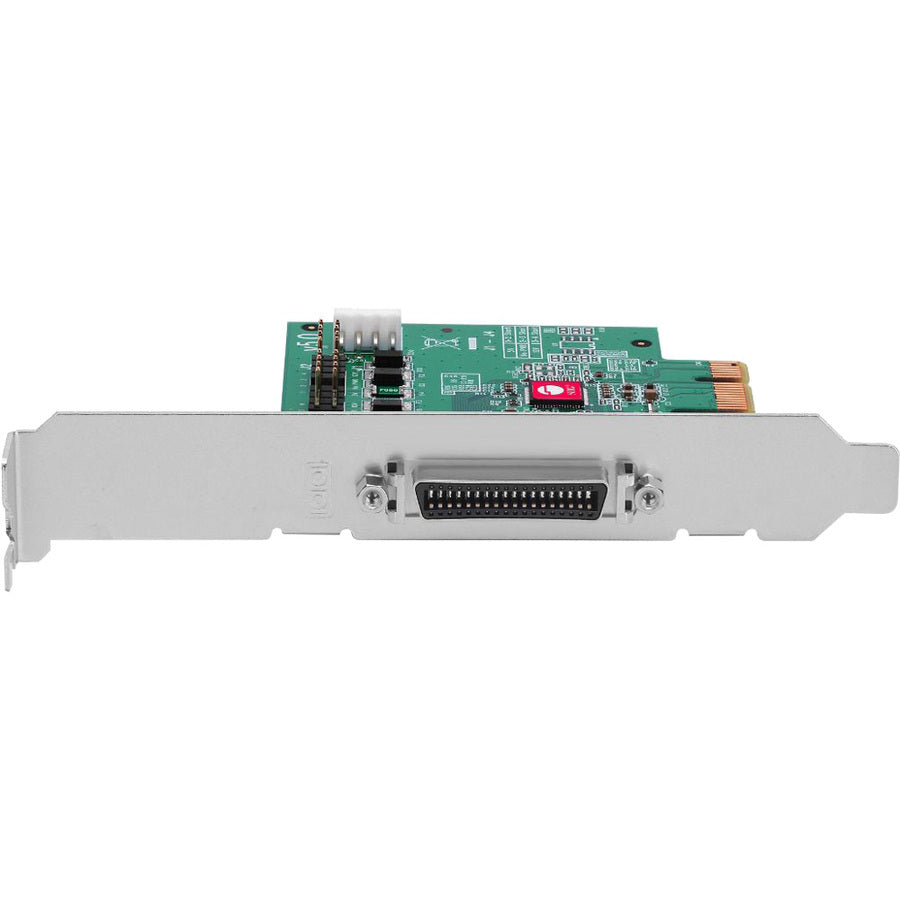

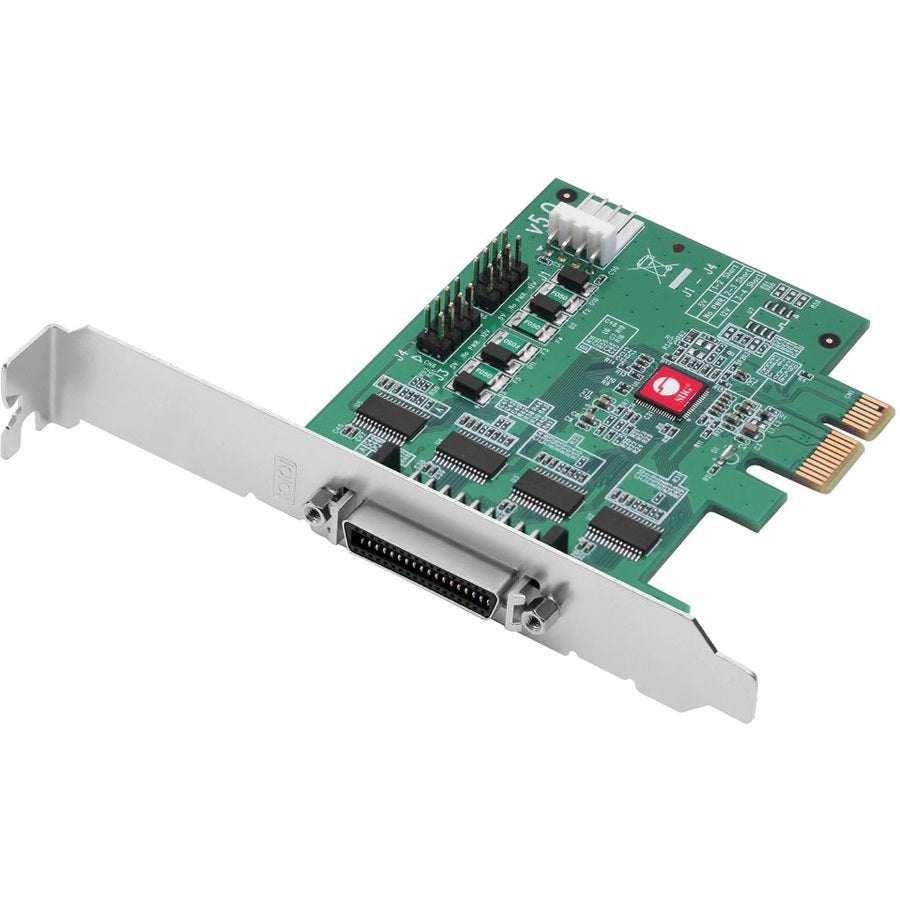

SIIG DP CyberSerial 4S PCIe Board
Adds four RS-232 serial ports to PCI Express enabled computer systems. Replaces part # JJ-E40011-S4
Note: Replaces part # JJ-E40011-S4
- Easily adds four RS232 DB9 serial ports through an available PCI Express slot
- PCI Express 1-lane (x1) adapter works with any width PCI Express slot
- Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps
- Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment

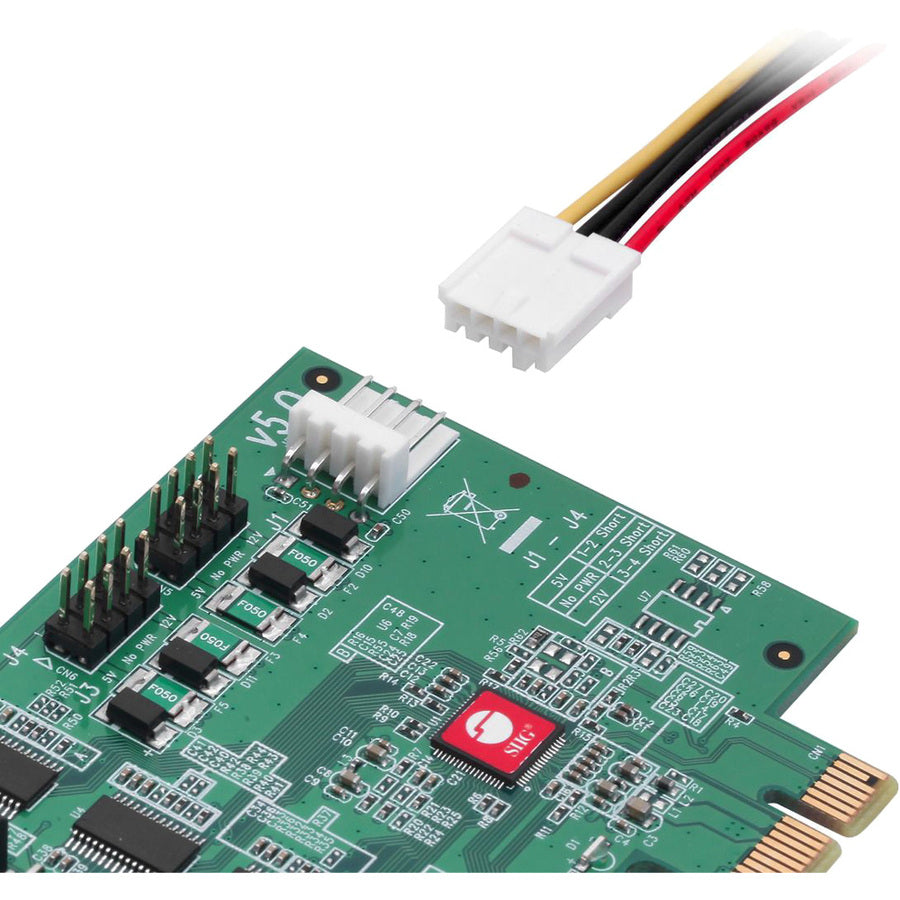

- Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup
- Supports hardware and software flow control, 5, 6, 7, 8 and 9-bit serial format
- Onboard power connector provides reliable power source for devices that require power

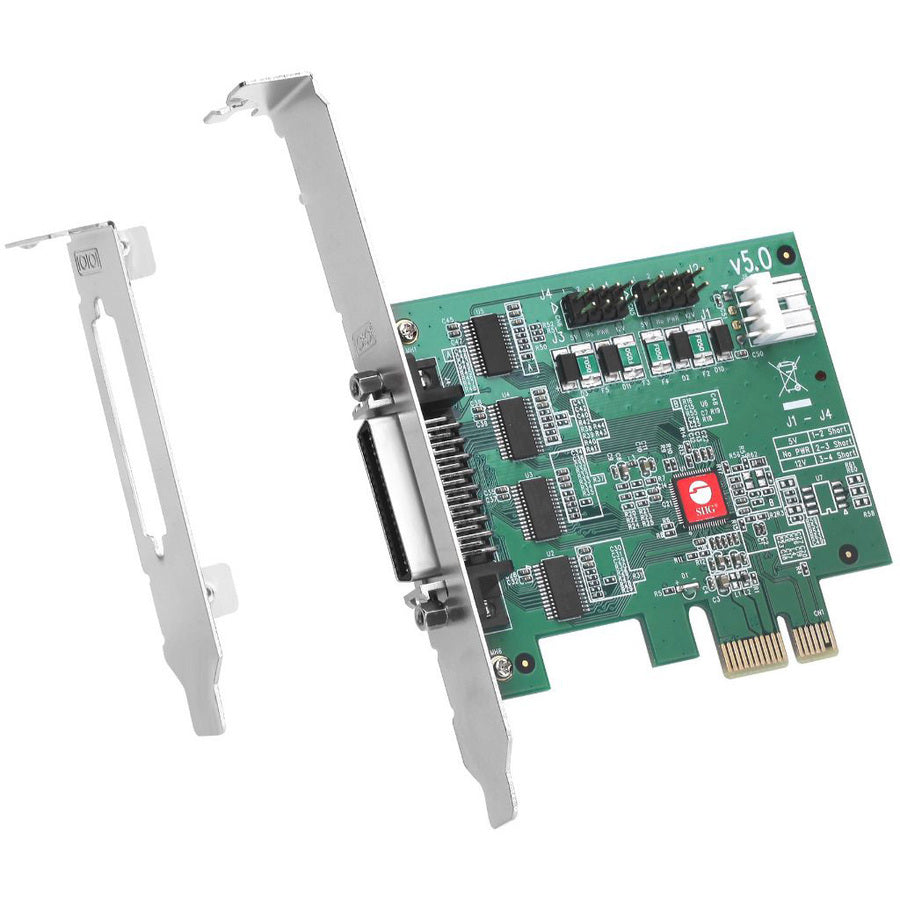

- Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets
More from the Manufacturer
Product Type: Multiport Serial Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Card Length: Full-length
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Form Factor: Plug-in Card
Manufacturer: SIIG, Inc
Product Name: DP CyberSerial 4S PCIe Board
Manufacturer Part Number: JJ-E40011-S5
Manufacturer Website Address: http://www.siig.com

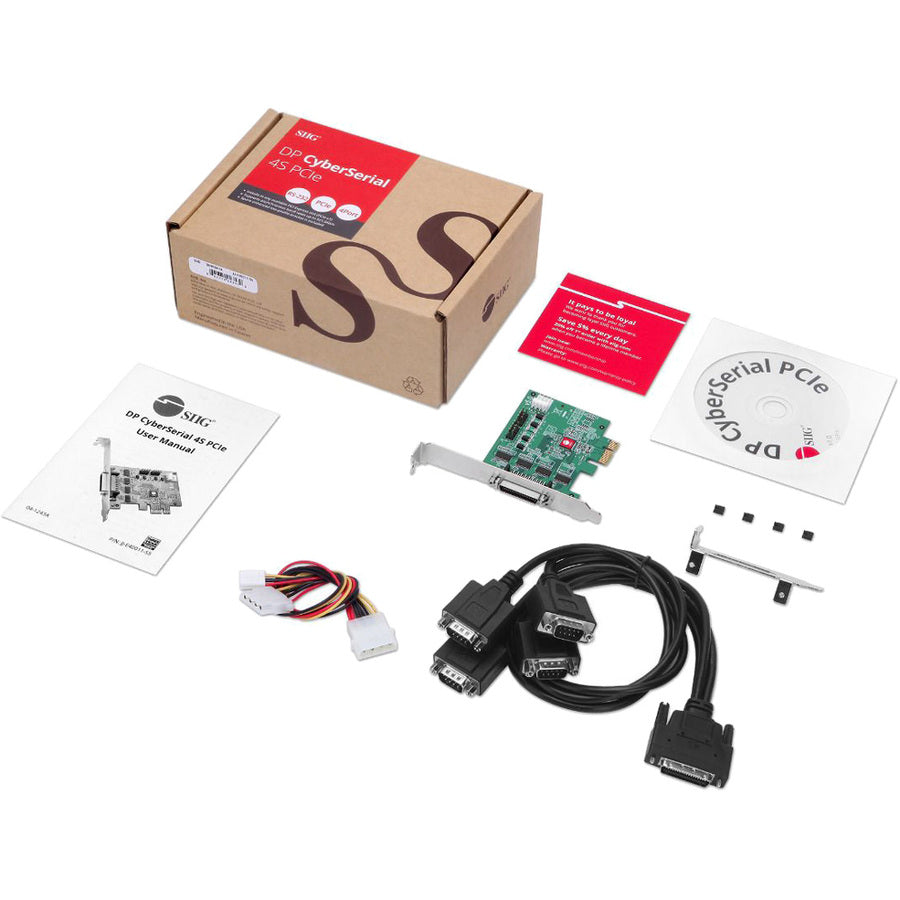

Package Contents:
- DP CyberSerial 4S PCIe Board
- Low Profile Bracket

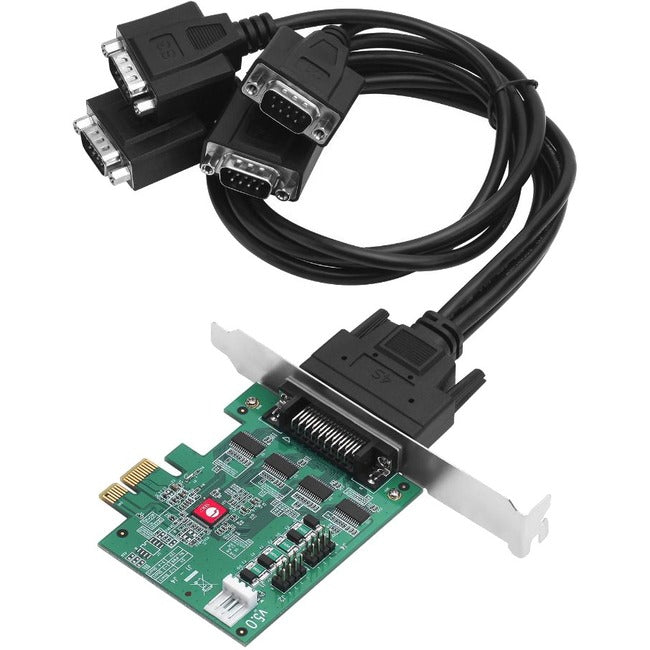

- 4-Port fan-out Cable (DFP-36pin)
- Y-Split Power Cable
- 4 x Voltage Jumper
- Driver CD
- User Manual
Limited Warranty: 3 Year
Thickness: 4.7"
Weight (Approximate): 1.60 oz
