SIIG DP Cyber 2S1P PCIe Card
Adds two RS-232 serial ports and one parallel port to a PCI Express enabled system
- Easily adds two serial ports and one parallel port through an available PCI Express slot
- 16C650 UART serial port with data transfer rate up to 250Kbps
- Compliant with PCI Express 2.0 Gen 1
- Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
- Single-lane (X1) PCI Express end-point controller with PHY integrated
- Full serial modem control
- Hardware and software flow control
- 5, 6, 7, 8 and 9-bit serial format
- Even, odd, none, space and mark parity
- On chip 256 byte depth FIFO buffers in transmit, receive path of each serial port
Product Type: Serial/Parallel Combo Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Card Height: Full-height
Brand Name: SIIG
Form Factor: Plug-in Card
Manufacturer: SIIG, Inc
Product Name: DP Cyber 2S1P PCIe Card
Manufacturer Part Number: JJ-E20411-S1
Manufacturer Website Address: http://www.siig.com

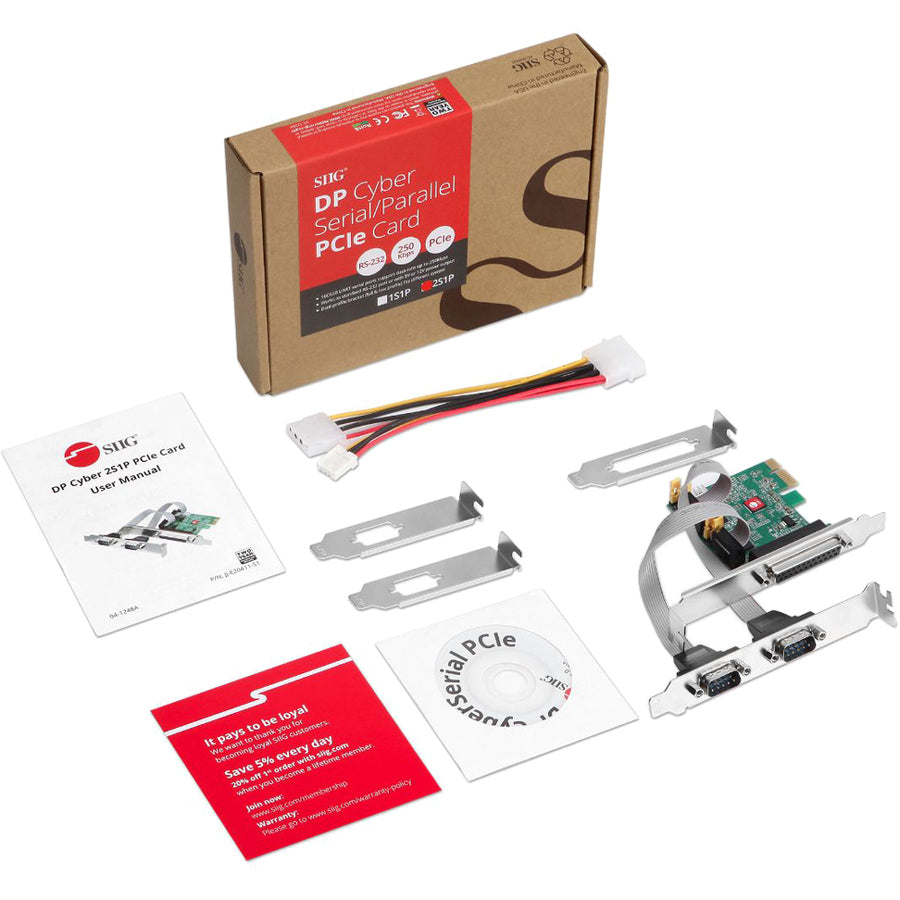

Package Contents:
- DP Cyber 2S1P PCIe Card

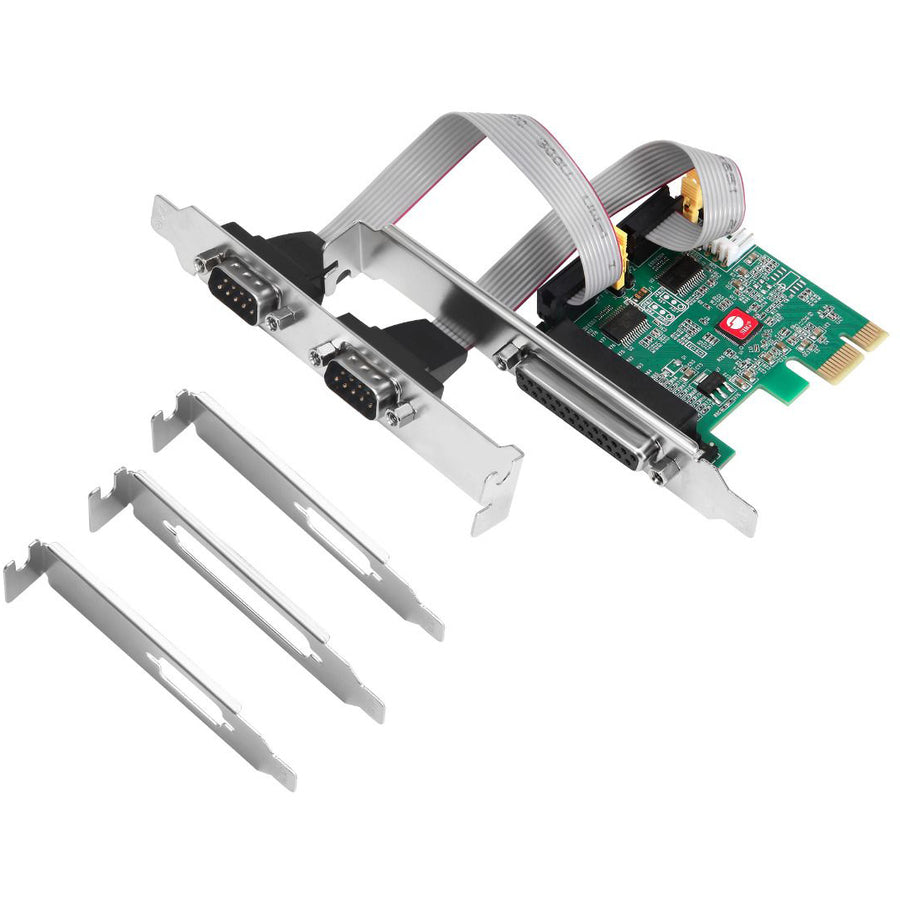

- 3 x Low Profile Bracket
- Y-Split Power Cable
- 4 x Voltage Jumper
- Software CD
- User Manual
Limited Warranty: 2 Year
Weight (Approximate): 1.60 oz
