SIIG 5x3 Multi-Format 4K 60Hz Presentation Switcher & Recorder 230ft - TAA Compliant

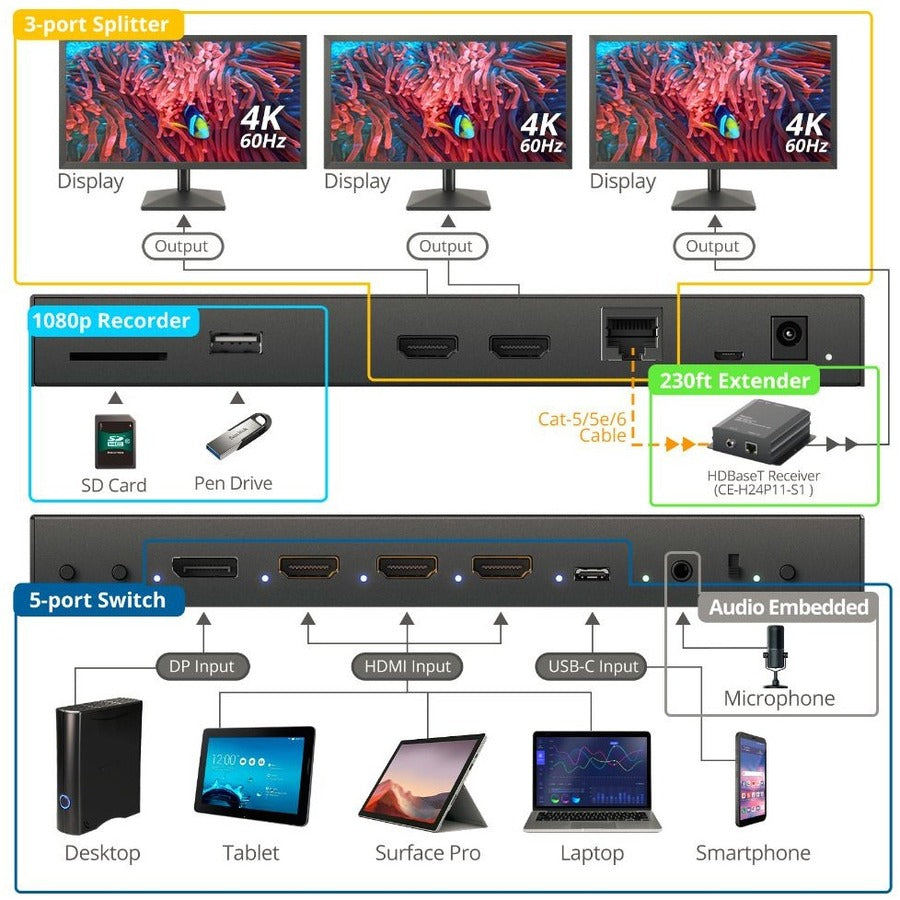

A multi-in-one presentation switcher with video/audio recorder functions in one compact device, five inputs (1 DisplayPort, 3 HDMI, 1 USB-C), two HDMI and one HDBaseT outputs, allows recording video and audio to USB flash drive or SD card
Features
- Multiple video inputs: 3 HDMI 2.0a, 1 DP1.2, 1 USB-C (DP Alt)
-
Note: The adapter's USB-C input does not support smart phones - Video Bandwidth up to 18Gbps
- Compliant with HDCP 2.2 and 1.4
- Input resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit
- Output resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit through HDMI and 4Kx2K@60Hz YUV 4:2:0 or 4K@30Hz YUV 4:4:4 8-bit via HDBaseT extender (not included)
- Support HDBaseT transmission distance up to 230ft (70m) from the HDMI source at Full HD 1080p 36-bit and 133ft (40m) at 4K@60Hz YUV 4:2:0
-
Note: Requires HDBaseT Extender, sold separately - Supports video and audio recording to the USB flash drive or SD memory card in the FAT32 and NTFS format.
-
Note: DOES NOT record HDCP protected content - Supports built-in and external microphone
- Supports xvYCC, x.v.Color and Deep color

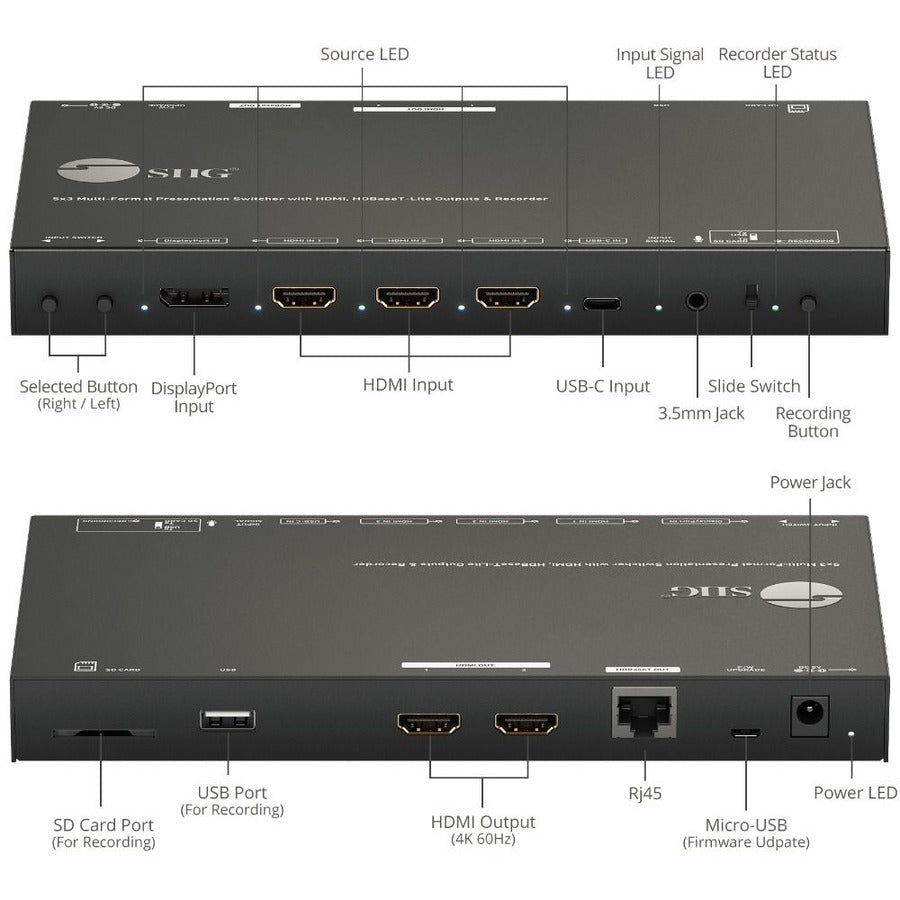

- Allows switching inputs by front panel push buttons
- Front Panel LED indicators allows for source selection status, input signal status, and recording status
- Multiple video inputs: 3 HDMI 2.0a, 1 DP1.2, 1 USB-C (DP Alt)
- Note: The adapter's USB-C input does not support smart phones
- Video Bandwidth up to 18Gbps
- Compliant with HDCP 2.2 and 1.4
- Input resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit
- Output resolution up to 4Kx2K@60Hz YUV 4:4:4 8bit through HDMI and 4Kx2K@60Hz YUV 4:2:0 or 4K@30Hz YUV 4:4:4 8-bit via HDBaseT extender (not included)
- Support HDBaseT transmission distance up to 230ft (70m) from the HDMI source at Full HD 1080p 36-bit and 133ft (40m) at 4K@60Hz YUV 4:2:0
- Note: Requires HDBaseT Extender, sold separately
- Supports video and audio recording to the USB flash drive or SD memory card in the FAT32 and NTFS format.
- Note: DOES NOT record HDCP protected content
- Supports built-in and external microphone
- Supports xvYCC, x.v.Color and Deep color

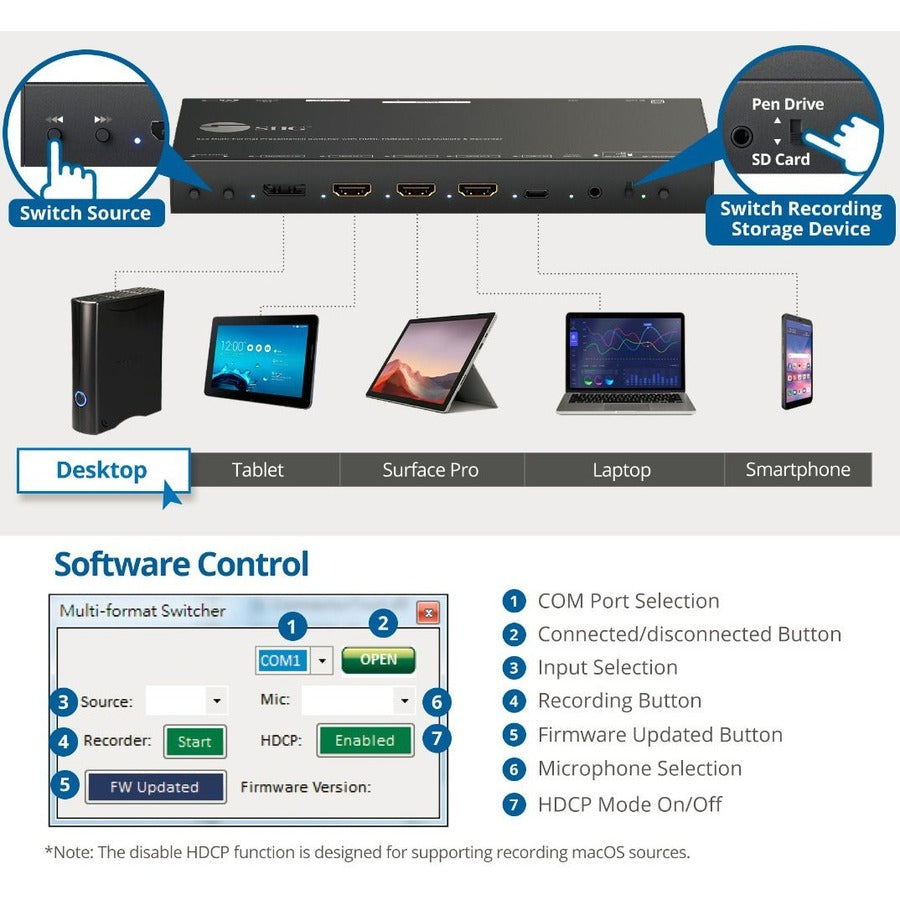

- Allows switching inputs by front panel push buttons
- Front Panel LED indicators allows for source selection status, input signal status, and recording status
Product Type: Audio/Video Switchbox
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 5x3 Multi-Format Presentation Switcher & Recorder
Manufacturer Part Number: CE-H26S11-S1
Manufacturer Website Address: http://www.siig.com
Package Contents:
- 5x3 Multi-Format Presentation Switcher & Recorder
- Power Adapter 5V/4A
- Power Cord
- User Manual
Limited Warranty: 2 Year
Weight (Approximate): 1.38 lb
