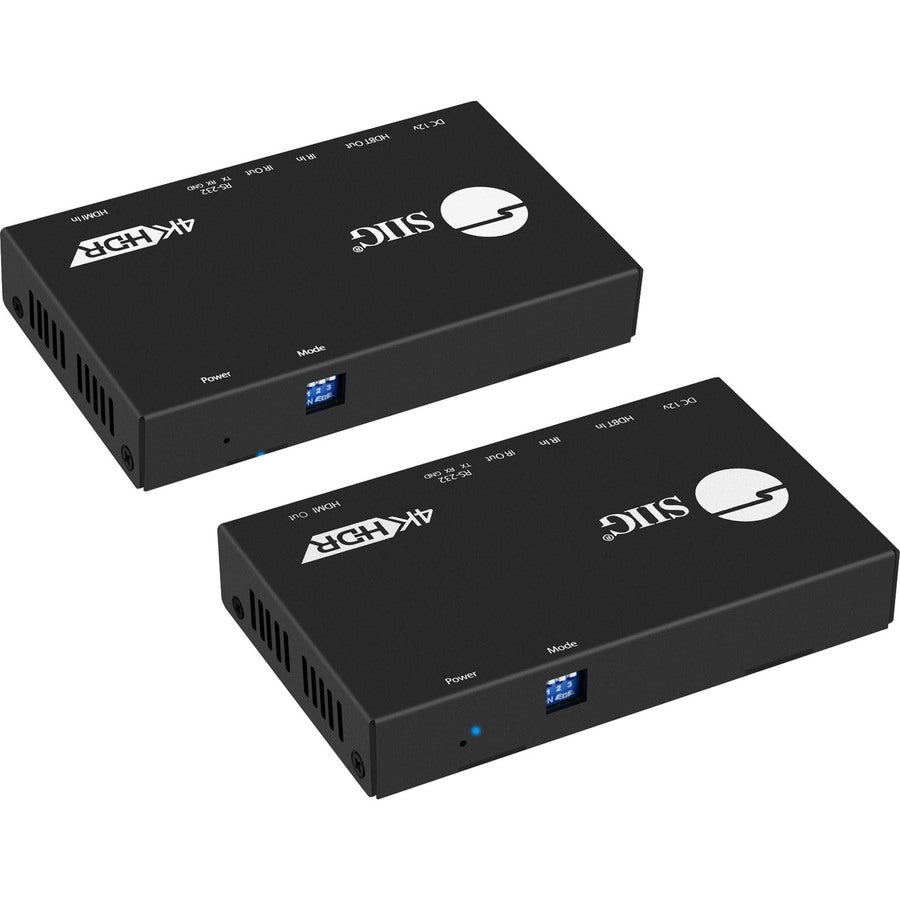

SIIG 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 60m
Extends HDMI audio and video signals, RS232 control, IR control up to 60 meters over a single CAT5e/6 cable with industry recognized HDBaseT technology
- Extends HDMI 2.0 audio and video signal from your HDMI source to a remote HDMI display up to 196ft (60m) away at Full HD 1080p, or 114ft (35m) at 3840x2160@60Hz (4:4:4 8bit/HDR10 4:2:0 10bit) through a single premium quality CAT5e/6 cable
- Delivers crystal clear picture quality with resolution up to 3840x2160 @60Hz YUV444 8bit and HDR 3840x2160 @60Hz YUV420 10bit
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT cable transmission, DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
- Supports PoC (Power over Cable) technology which allows both the transmitter and receiver units to be powered through only one power adapter

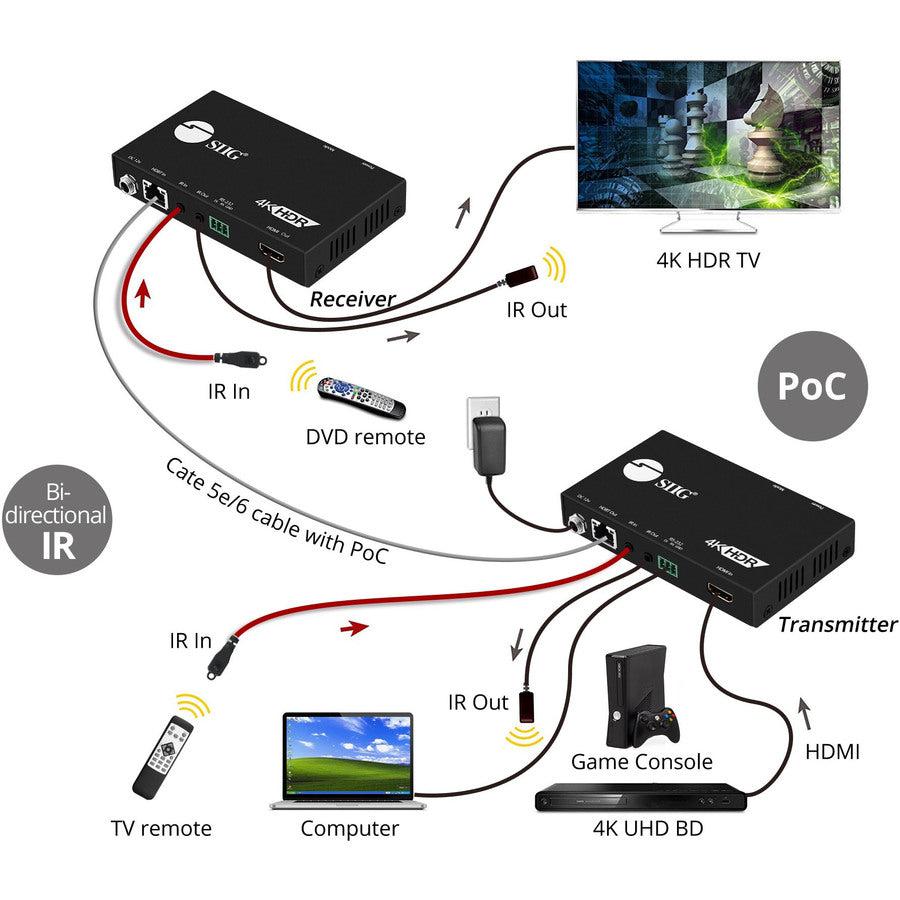

- Bi-directional IR sensors allow you to remotely control the HDMI source device from the remote display side or control the remote display from the source device side
- High quality metal housing with cooling slots provide excellent ESD and electromagnetic protection plus excellent heat dissipation and cooling for stable operation during extended hours of use
- Slim profile design easily adopts into versatile application environment, wall mountable housing for easy and varied installation requirements
More from the Manufacturer
- Compliant with HDMI 2.0 and HDCP 2.2
- Supports EDID bypass, CEC, Deep Color 36bit
- Supports 3840x2160@60Hz 4:4:4 8bit
- Supports 3840x2160@60Hz HDR10 4:2:0 10bit
- Video bandwidth up to 18Gbps (600MHz per channel)
- Video latency: <20µs
- Auto skew equalization
- Audio support: DTS-HD Master Audio and Dolby True HD
- Bi-directional IR pass-through supports full frequency IR signal from 20KHz to 60KHz
- Full Duplex RS-232 control up to 11,5200 bps through connector
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.80"
Transmitter Width: 2.80"
Transmitter Depth: 4.70"
Transmitter Weight (Approximate): 9.28 oz
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Form Factor: Wall Mountable
Manufacturer: SIIG, Inc
Product Name: 4K HDR HDMI 2.0 HDBaseT Extender Over Single Cat5e/6 with RS-232 & IR - 60m
Manufacturer Part Number: CE-H23211-S1
Manufacturer Website Address: http://www.siig.com

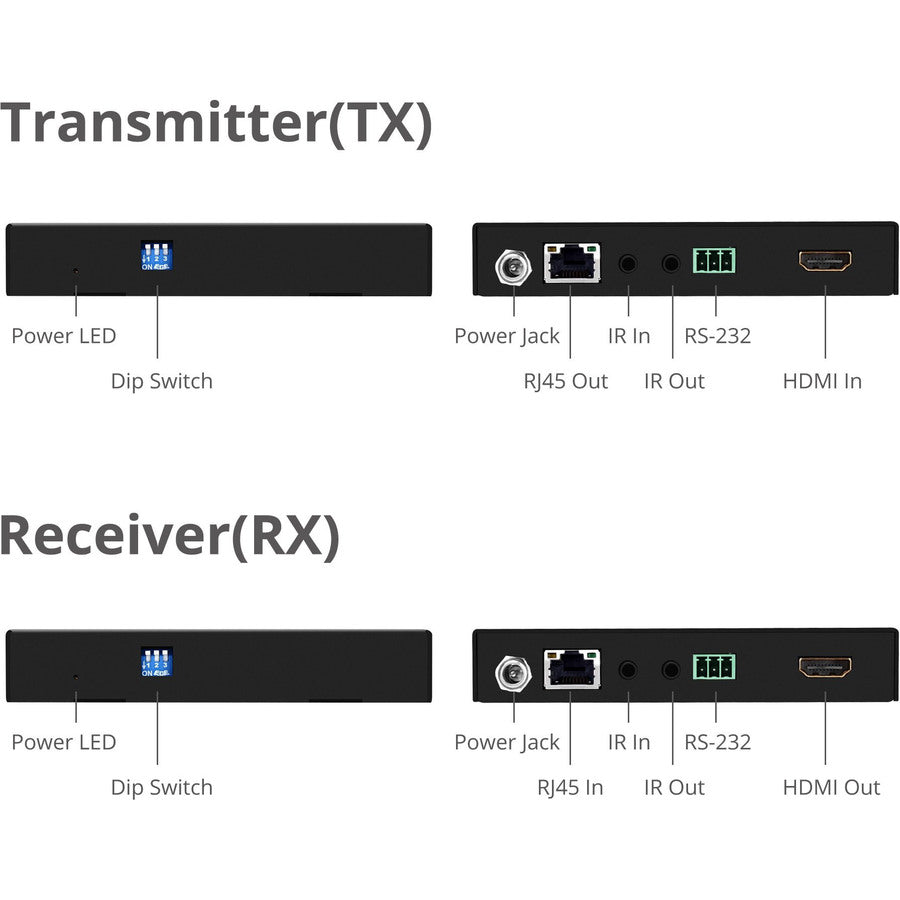

Package Contents:
- 1 x Transmitter (TX)
- 1 x Receiver (RX)
- 1 x Power Adapter with Power Cord
- IR Blaster Extension Cable & IR Receiver Extension Cable
- 4 x Mounting Ears & Screw Kit (8+4)
- 2 x RS232 Terminal Block Connectors
- User Reference Guide
Limited Warranty: 3 Year
