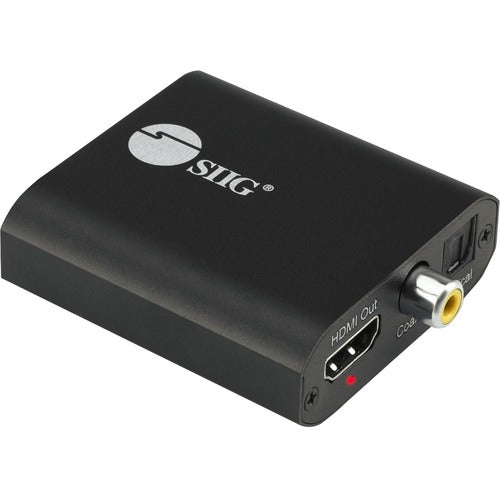

SIIG 4K HDMI with Audio Extractor Converter - Analog Stereo, Toslink Optical, Coaxial S/PDIF

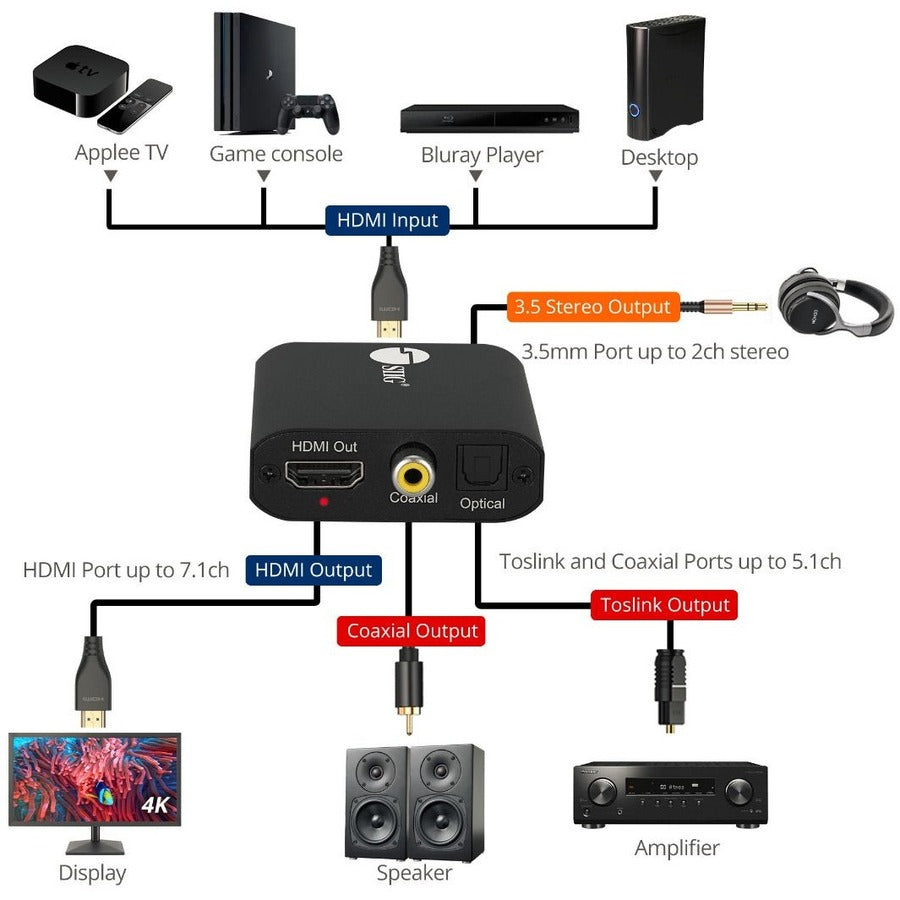

Extracts 4K HDMI audio and splits it to analog stereo, Toslink optical digital, and Coaxial S/PDIF outputs
Features
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or
coaxial S/PDIF outputs - Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color

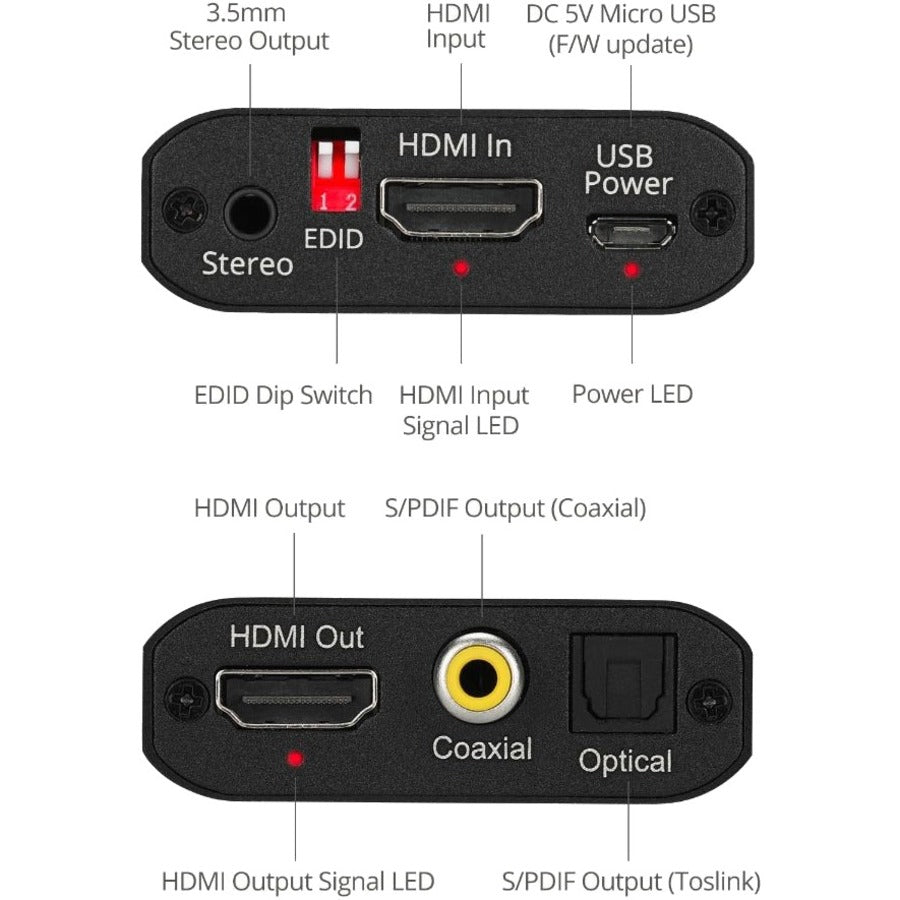

- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
- Extracts and converts HDMI digital audio signal to 2-channel analog stereo, 5.1 channel Toslink optical, or coaxial S/PDIF outputs
- Supports video resoIution up to 4K@30Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0 8-bit or 1080p@60Hz YUV 4:4:4 16-bit
- Supports 340MHz/10.2Gbps per channel bandwidth
- Supports up to 16-bit per channel (48-bit all channel) deep color
- EDID management DIP switches allows the best performance between the connected devices
- Provides the best compatibility via four EDID settings: Copy EDID of the HDMI output, 1080p 3D 2 CH (requires all displays connected to the splitter outputs must support 3D), 1080p 5.1 CH for Optical or Coaxial audio output and 4K 2CH for L/R stereo or Coaxial and Optical output
- Supports uncompressed formats like LPCM and compressed audio such as DTS Digital, Dolby Digital
- Supports HDCP 1.4, HDMI 1.4 specification and Plug and Play installation
Product Type: Signal Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: SIIG
Form Factor: External
Manufacturer: SIIG, Inc
Product Name: 4K HDMI with Audio Extractor Converter
Manufacturer Part Number: CE-H26Q11-S1
Manufacturer Website Address: http://www.siig.com

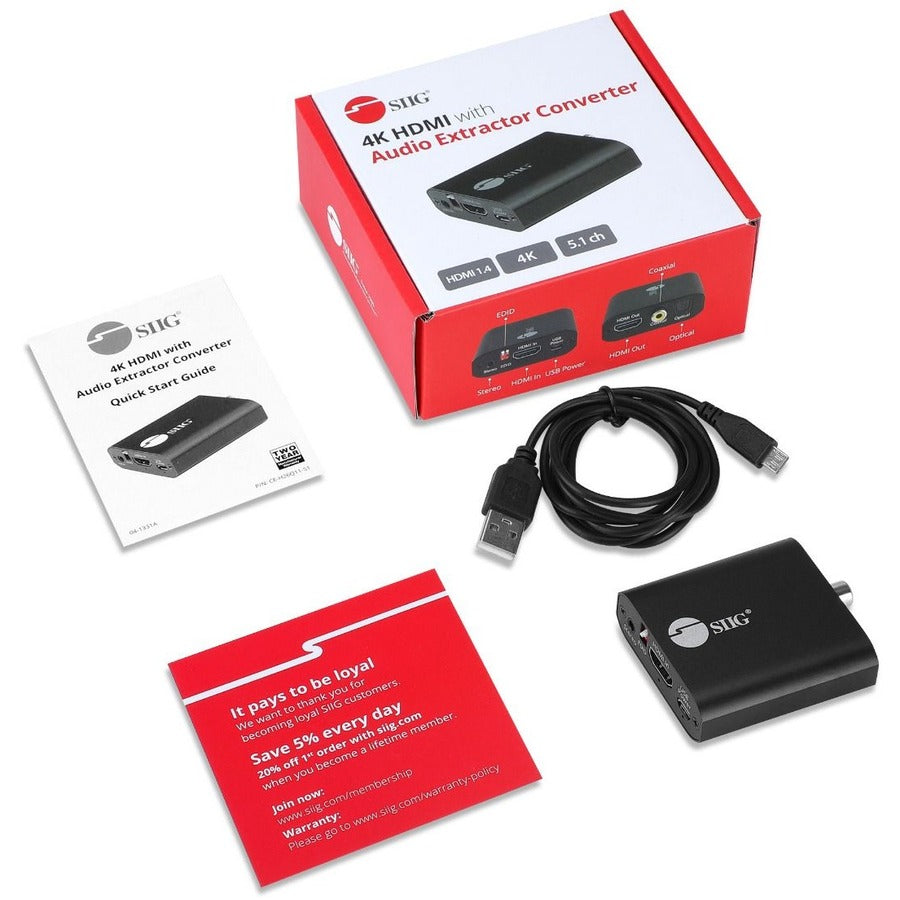

Package Contents:
- 4K HDMI with Audio Extractor Converter
- Micro USB Power Cable
- Quick Start Guide
Limited Warranty: 2 Year
Weight (Approximate): 0.11 lb
