SIIG 4K HDMI Video Capture Box with Volume Control & Loopout
Overview
Easily capture and save 4Kx2K@60Hz HDMI signals in 4Kx2K@30Hz resolution from any HDMI source such as Gaming console, Media players, or Set-top box while simultaneously viewing in 4K@60Hz resolution, Volume Control, Aluminum Housing, TAA compliant
Features Easily capture and record 4K HDMI live video with low latency via a USB-C device and adjust the sound directly with the volume knob
4K UHD Resolution
Supports streaming 4K (3840x2160) @60Hz Ultra high-definition video resolution and recording 4K (3840x2160) @30Hz UHD video resolution, ideal for game capture
HDR Convert SDR
This 4K HDMI Video Capture Box supports HDR10 to SDR conversion when a monitor/display without HDR or HDMI source with HDR
USB Record
Stream video via USB-C and supports USB Video Class (UVC) 1.0/1.1/1.5 and up to 5Gbps date transfer
Auto Downscaling
Detects and configures the video resolution automatically according to the capabilities of the connected monitor
Stereo Audio/Control
Supports stereo audio embedded and HDMI audio extractor great for adding voice over to your gameplay. Built-in volume control knob to adjust the microphone/headphone volume
Multiple Connectivity Ports

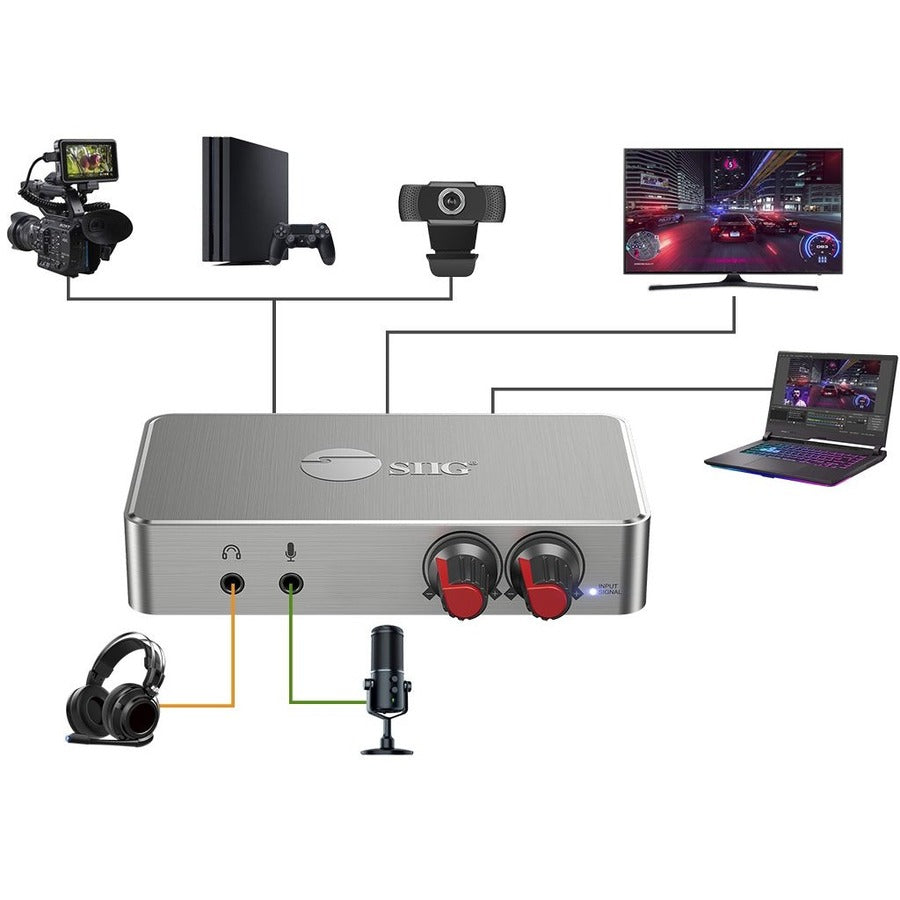

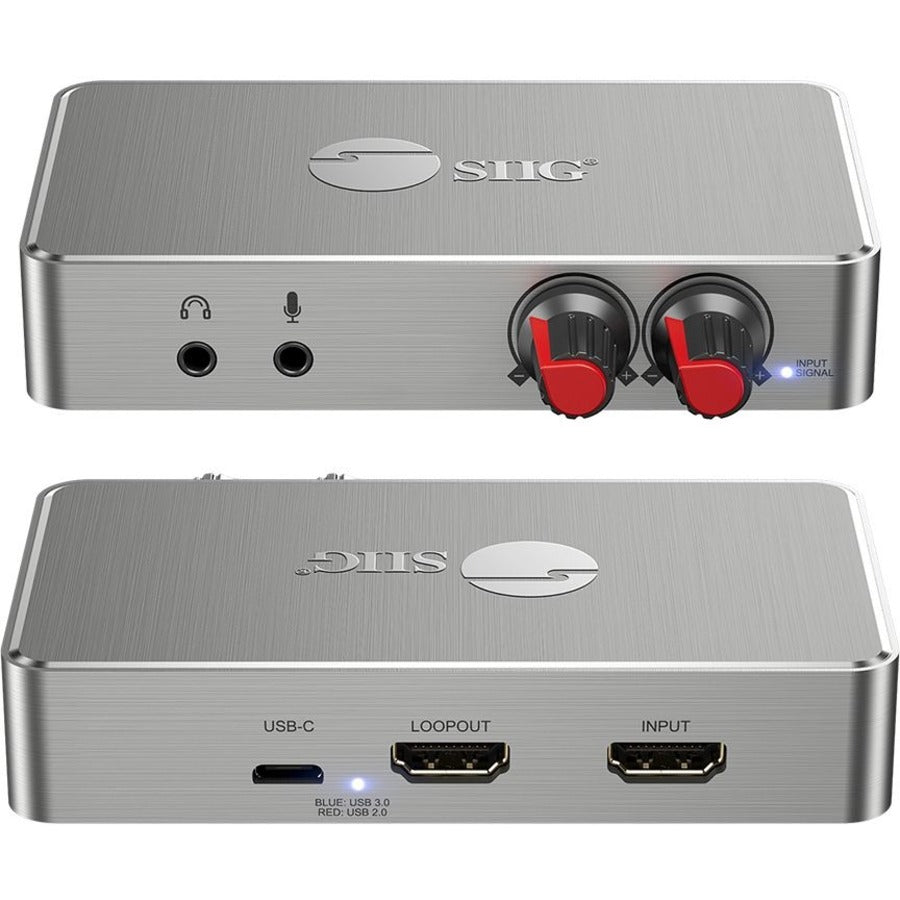

Comes with one HDMI video input port, one HDMI video output port, one USB-C 3.2 Gen 1 output port (Host), one 3.5mm microphone input port, one 3.5mm stereo audio output port, and two audio volume knob
- Professional like HDMI capture device with audio embedding through USB 3.1 connection from your PC system, Utilizes USB 3.1 interface for high-speed transmission
- Allows capture and record in 4Kx2K@30Hz while viewing at 4K@60Hz simultaneously. This device saves you the cost and hassle of buying a splitter to play and capture at the same time.
- Support video capture and record resolution up to 4Kx2K@30Hz, Supports HDR10 to SDR conversion
- Supports HDMI input & loopout up to 4Kx2K@60Hz, Supports playing 4K HDR on HDMI out while streaming perfect 4K2K@30 with SDR colors for gameplay capture.
- Volume control knob to adjust the MIC/Headphone volume
- Automatically detects video formats to ensure plug-and-play operation
- Mixed audio support from Line-in and HDMI with HDMI audio extraction to connect analog stereo speakers
- Great for online meetings, training, gameing and live broadcast
- Compatible with Windows, Mac and Linux OS. Works with most 3rd party software such as OBS Studio, AMCap and VLC
Product Type: Video Capturing Device
Environmentally Friendly: Yes
Environmental Certification: REACH
Taa Compliant: Yes
Country Of Origin: Taiwan
Brand Name: SIIG
Length: 4.6"
Manufacturer: SIIG, Inc
Product Name: 4K HDMI Video Capture Box with Volume Control & Loopout
Manufacturer Part Number: CE-H27311-S1
Manufacturer Website Address: http://www.siig.com
Packaged Quantity: 1

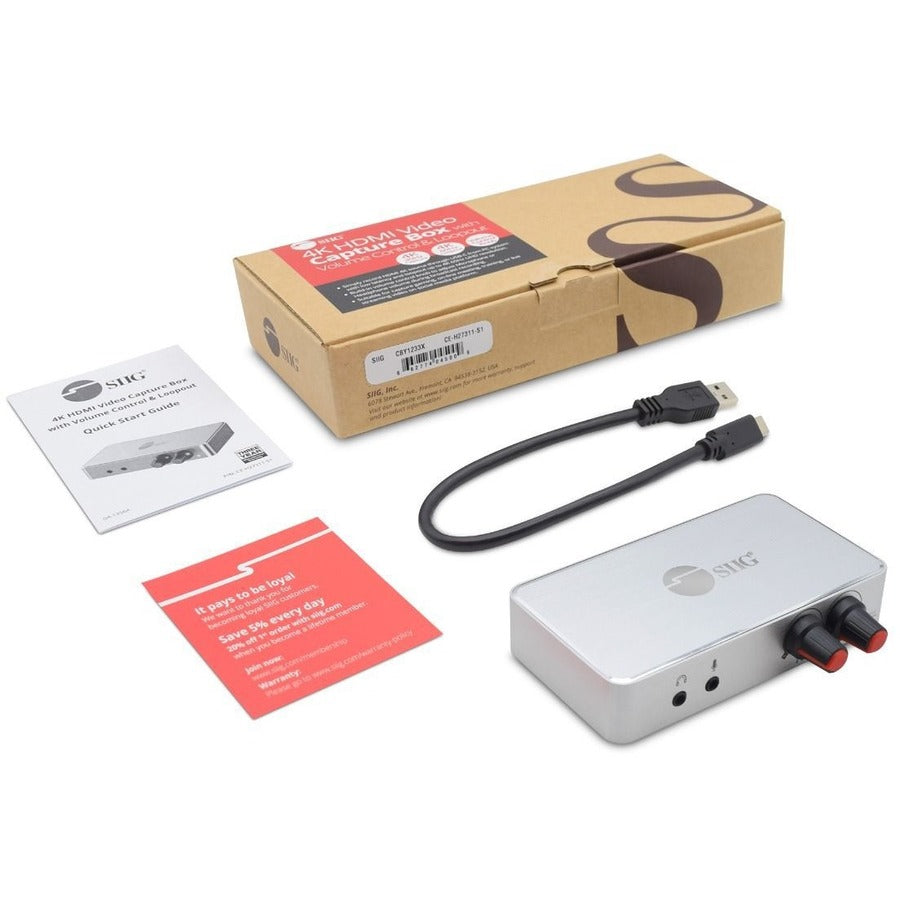

Package Contents:
- 4K HDMI Video Capture Box with Volume Control & Loopout
- 1 x USB 3.2 Gen 1 Type-C to Type-A Cable, 0.98ft (30cm)
- 1 x User Reference Guide
Limited Warranty: 3 Year
Weight (Approximate): 0.44 lb
