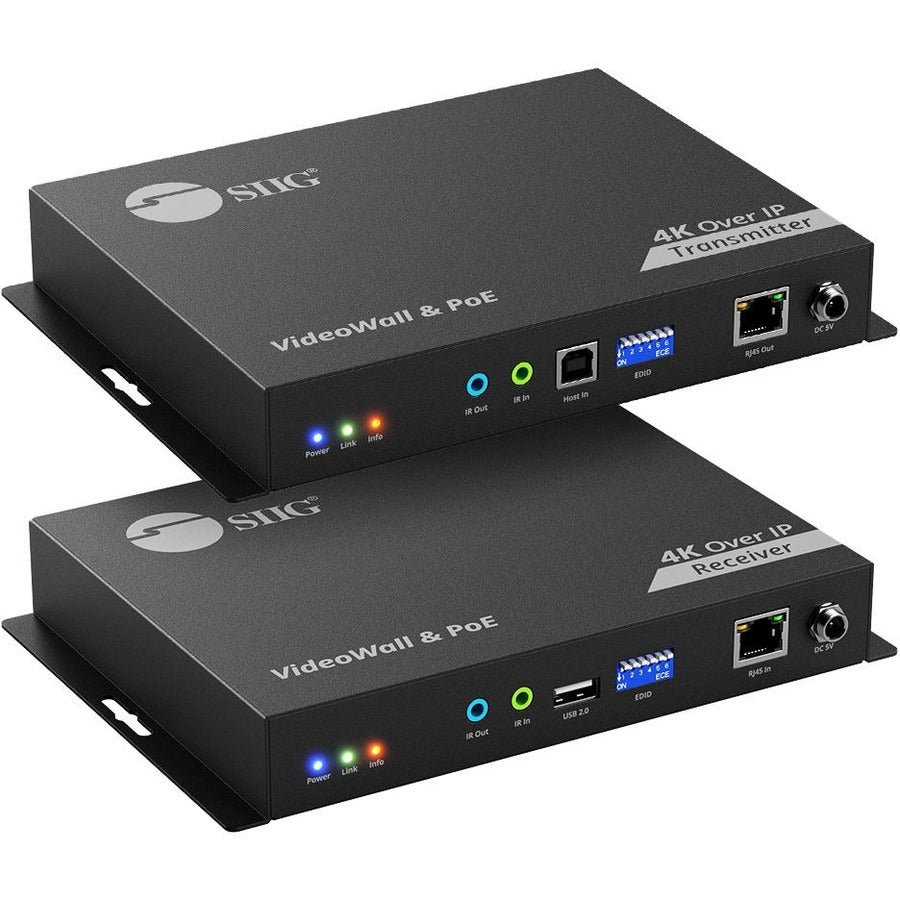

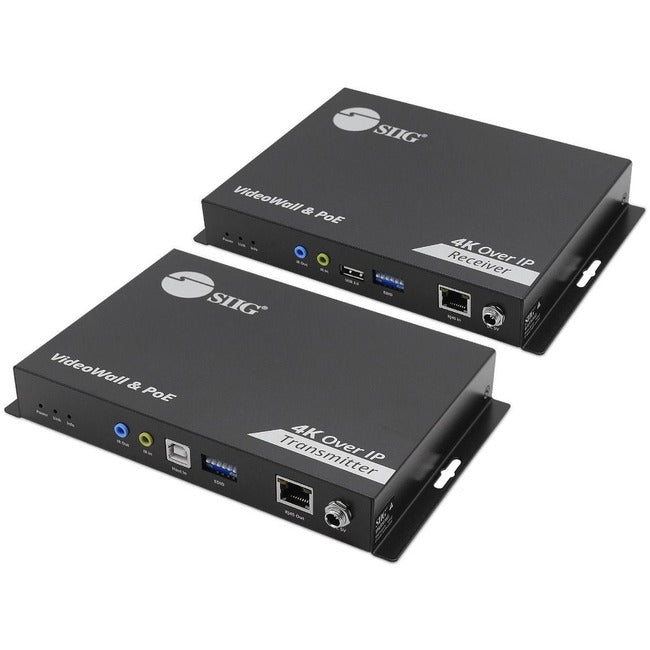

SIIG 4K 60HZ HDMI over IP Matrix Kit
- Extends 4K@60Hz HDMI signals to a distant display up to 396ft (120m) over economical Cat6/7 network cabling
- Supports HDMI 4K60Hz up to 18Gbps bandwidth, HDCP 2.2, PoE, IR and RS-232 pass-through path
- Flexible and scalable UHD Video Broadcasting by Gigabit Ethernet LAN/Switch; Support one to one, one to many & multi-casting broadcasting architecture, up to 1,023 Groups Multi-Casting
- Supports Video Wall function and KVM, Each transmitter can be theoretically multicast to an unlimited number of displays in video wall applications or unlimited displays in multicast applications, Supports 90, 180 and 270 clockwise image rotation
- Built-in bi-directional IR signal from 20kHz to 60kHz provides full control capability, allowing remote control the HDMI source device from the display and vice versa;
- Support RS-232 control up to 115,200 bps through connector, Easy Dip Switch matching for multi-casting group configuration
- Supports PCM/ DTS-HD/ Dolby Digital 7.1ch via HDMI, PCM 2ch, Dolby/DTS 5.1ch via Toslink and Stereo digital audio via 3.5mm headset jack, S/PDIF Audio needs to be enabled by controller CE-H25411-S2, sold separately
- High quality durable wall mounting metal housing with Lightning/Surge/ESD protection provides durability and minimizes EMI/RFI noise interference.
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1.09"
Transmitter Width: 6.81"
Transmitter Depth: 5.19"
Receiver Height: 1.09"
Receiver Width: 6.81"
Receiver Depth: 5.19"
Transmitter Weight (Approximate): 1.41 lb
Receiver Weight (Approximate): 1.44 lb
Taa Compliant: Yes
Product Color: Black
Country Of Origin: Taiwan
Brand Name: SIIG
Form Factor: Wall Mountable
Manufacturer: SIIG, Inc
Product Name: 4K 60HZ HDMI over IP Matrix Kit
Manufacturer Part Number: CE-H28A11-S1
Manufacturer Website Address: http://www.siig.com

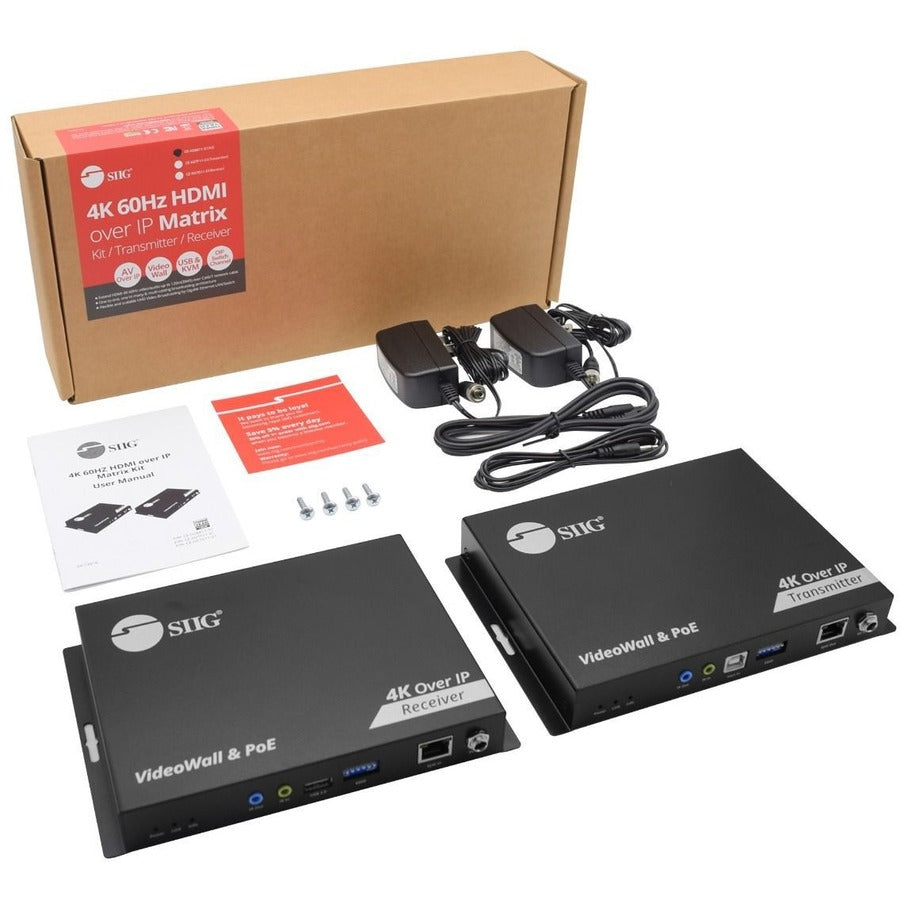

Package Contents:
- 1 x Transmitter
- 1 x Receiver
- 2 x Power Adapter
- IR Blaster Extension Cable
- IR Receiver Extension Cable
- 4 x M4x20mm Screws
- User Manual
Limited Warranty: 3 Year
