SIIG 2 Port HDMI 2.0 4K HDR Splitter / Switcher with IR Remote
Share two 4K HDMI displays (mirror mode) between two 4K HDMI sources with IR remote control switching and EDID management

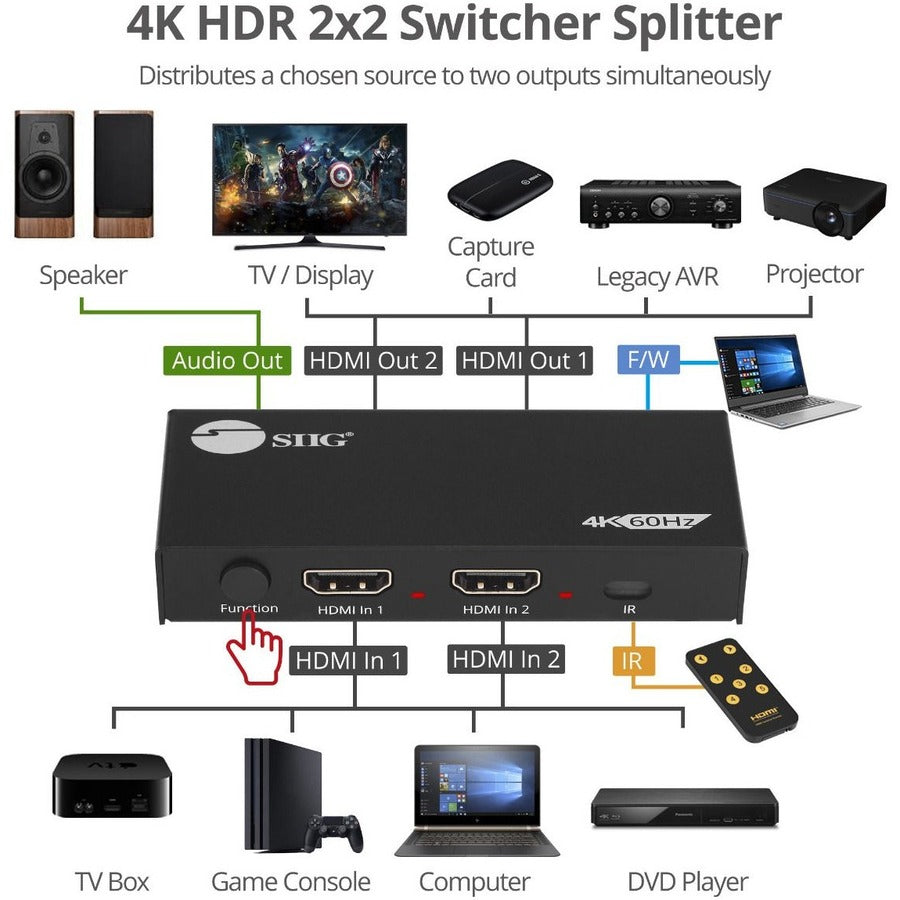

- Distributes HDMI video and audio from two HDMI sources to up to 2 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports resolutions up to 4Kx2K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bit Deep Color
- Supports LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio

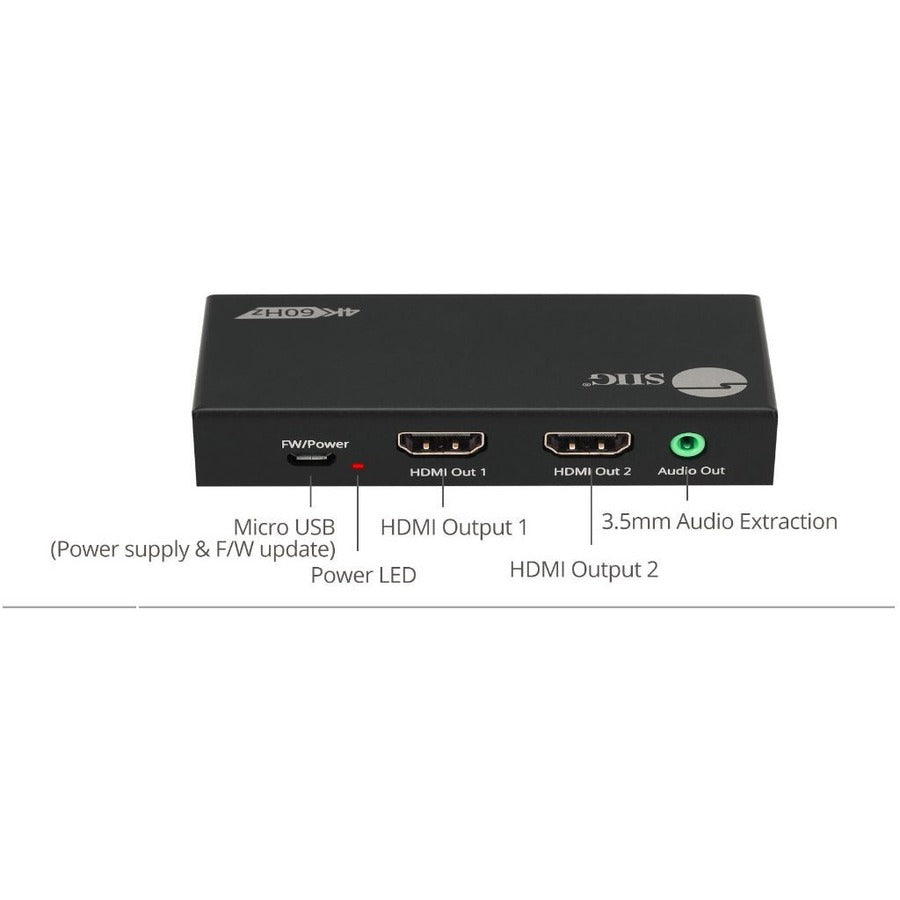

- Supports stereo audio extraction to 3.5mm audio output jack for 2ch stereo source devices only

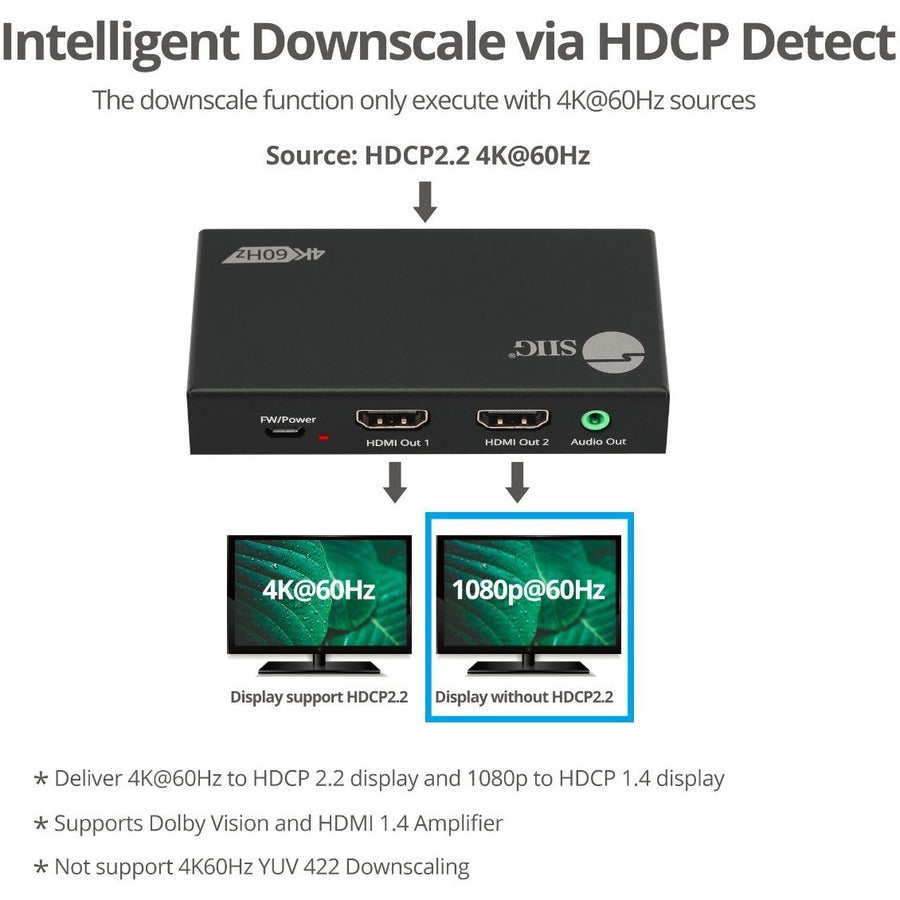

- Auto video scaling feature, via HDCP detection of your connected display, detects and configures the video resolution automatically according to the capabilities of the connected monitors
- High quality materials and metal housing extends the stability and durability, allowing for long hours of operation
- Built-in EDID management and firmware update mechanism further expands compatibility

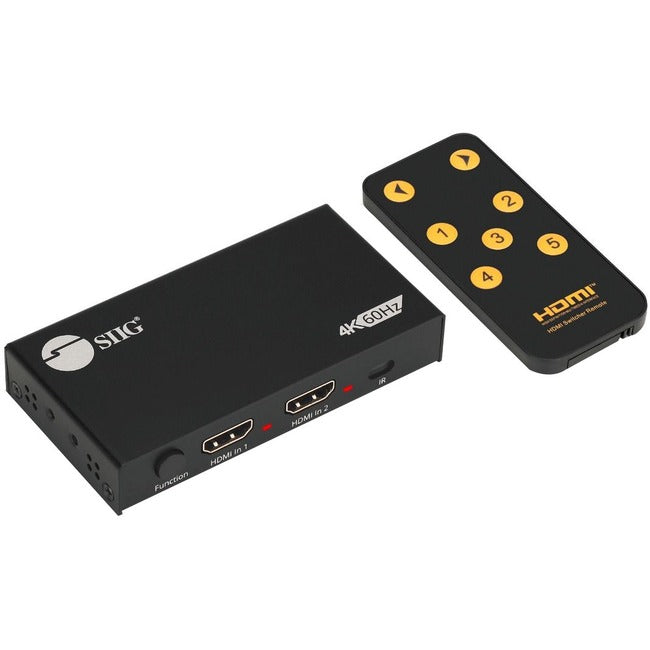

- EDID modes are controlled by the included remote control, push button control cycles between Auto EDID, Copy EDID, and Mixed EDID modes

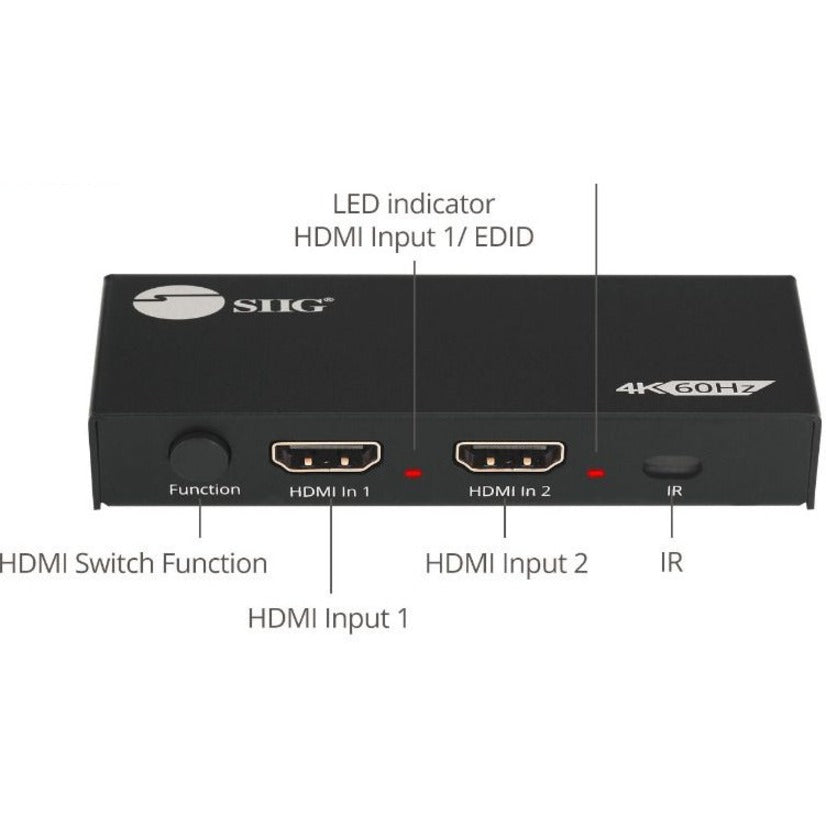

- Individual LED indicators for power and EDID mode allow for easy and quick operating status
Compatibility Notes:
- 4K@30Hz monitors will display in 1080p @60Hz resolution
- Does not support 4K/60Hz YUV 422 down scaling
- The 2 HDMI outputs mirror each other, extended displays are not supported
- Split CATV and other signals with this satellite splitter so that it can be used for more than one device
- HDMI interface allows you to connect to a variety of HD devices for the ultimate true high-definition video
- HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort
- With USB port data can be moved between devices in fragments of a second
Product Type: Signal Splitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Material: Metal
Brand Name: SIIG
Length: 3.9"
Manufacturer: SIIG, Inc
Product Name: 2-Port HDMI 2.0 4K HDR Splitter / Switcher
Manufacturer Part Number: CE-H26D11-S1
Manufacturer Website Address: http://www.siig.com

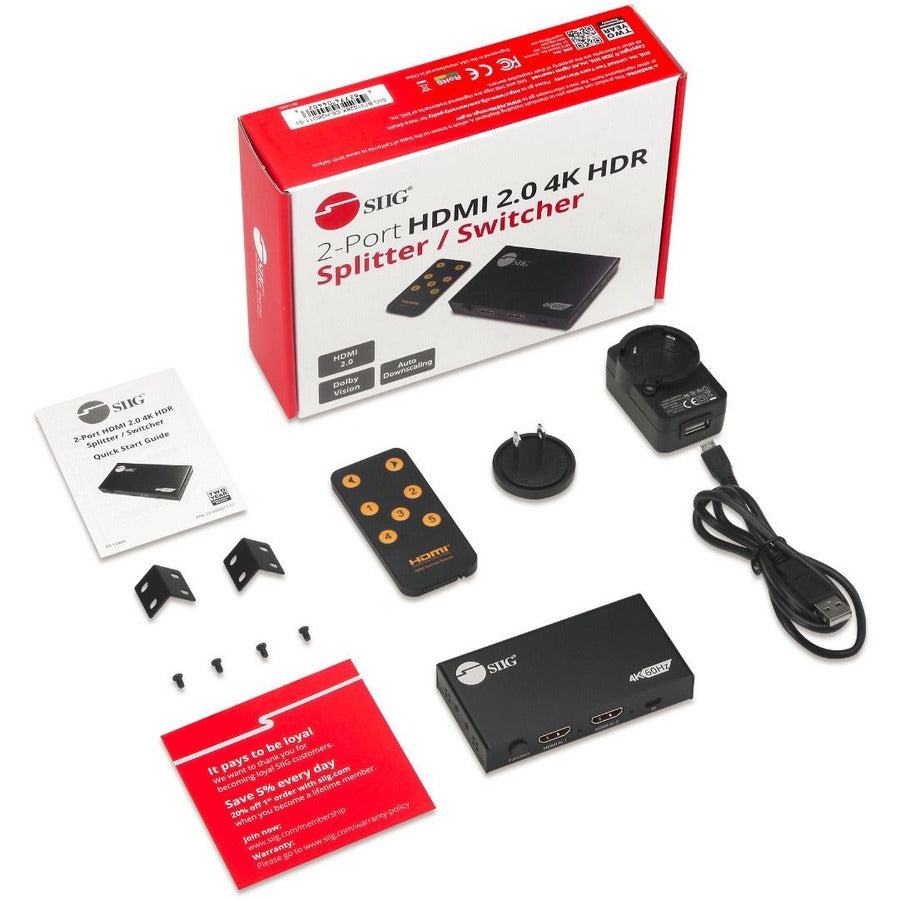

Package Contents:
- 2-Port HDMI 2.0 4K HDR Splitter / Switcher
- Power Adapter
- USB A to Micro-B cable
- Remote Control
- Mounting kit
- Quick Start Guide
Limited Warranty: 2 Year
Weight (Approximate): 5.28 oz
