SIIG 1x8 HDMI 2.0 HDR Splitter Distribution Amplifier with EDID Management - 4Kx2K 60Hz
Distributes HDMI video/audio signals from one HDMI source to 8 HDMI displays while maintaining signal quality
- Distributes HDMI video and audio from a single source to up to 8 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

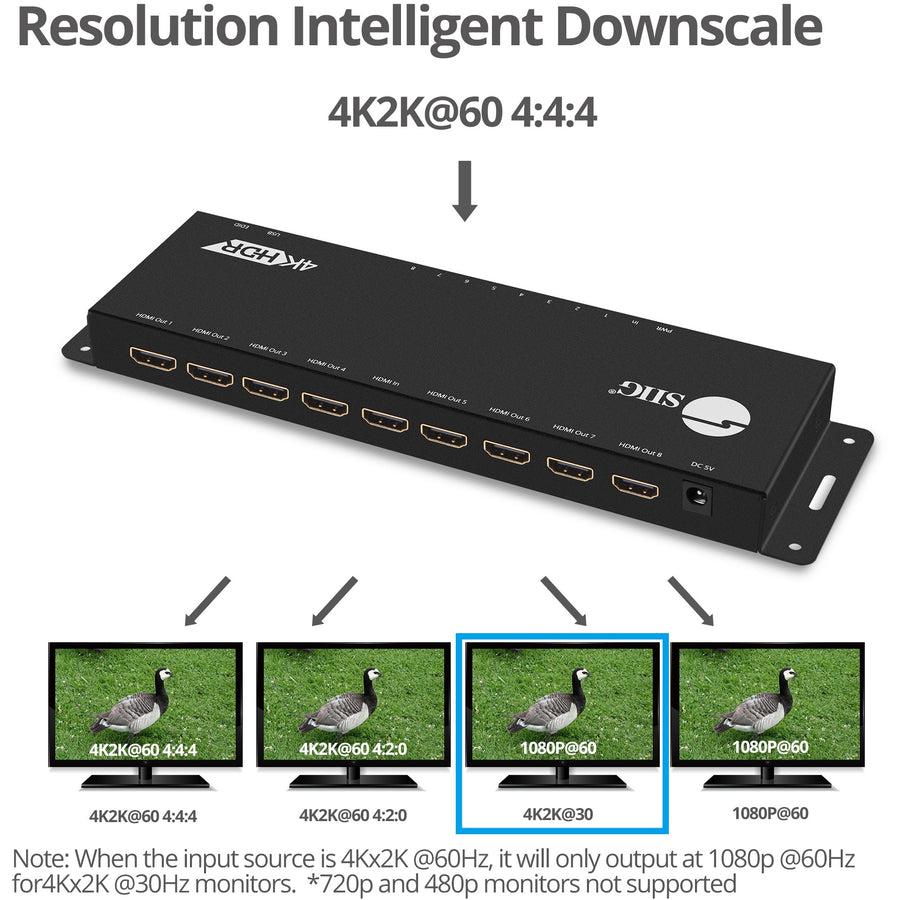

- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor
- Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.

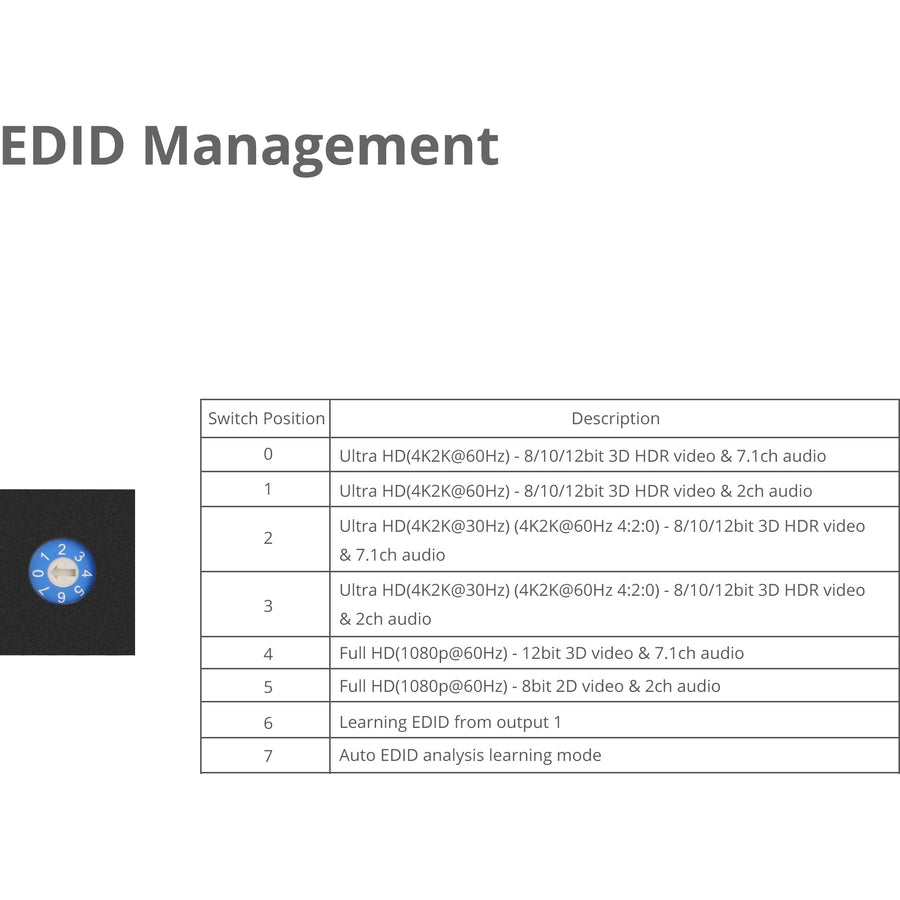

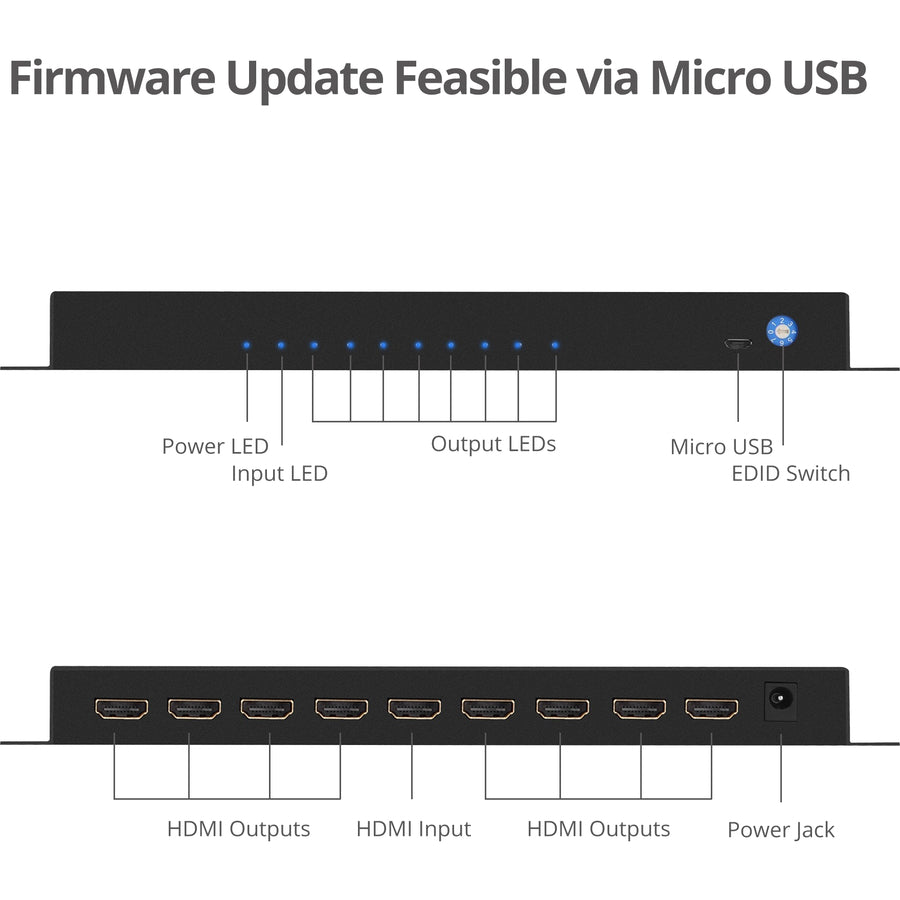

- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Easy to cascade multiple splitters for more displays. Supports up to 10 layers
- This Audio/Video Distribution Amplifier accepts audio and video signals from a single source and distributes it to multiple systems
- Up to 3840 2160 video resolution.
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
Product Type: Audio/Video Distribution Amplifier
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Product Material: Aluminum
Country Of Origin: Taiwan
Brand Name: SIIG

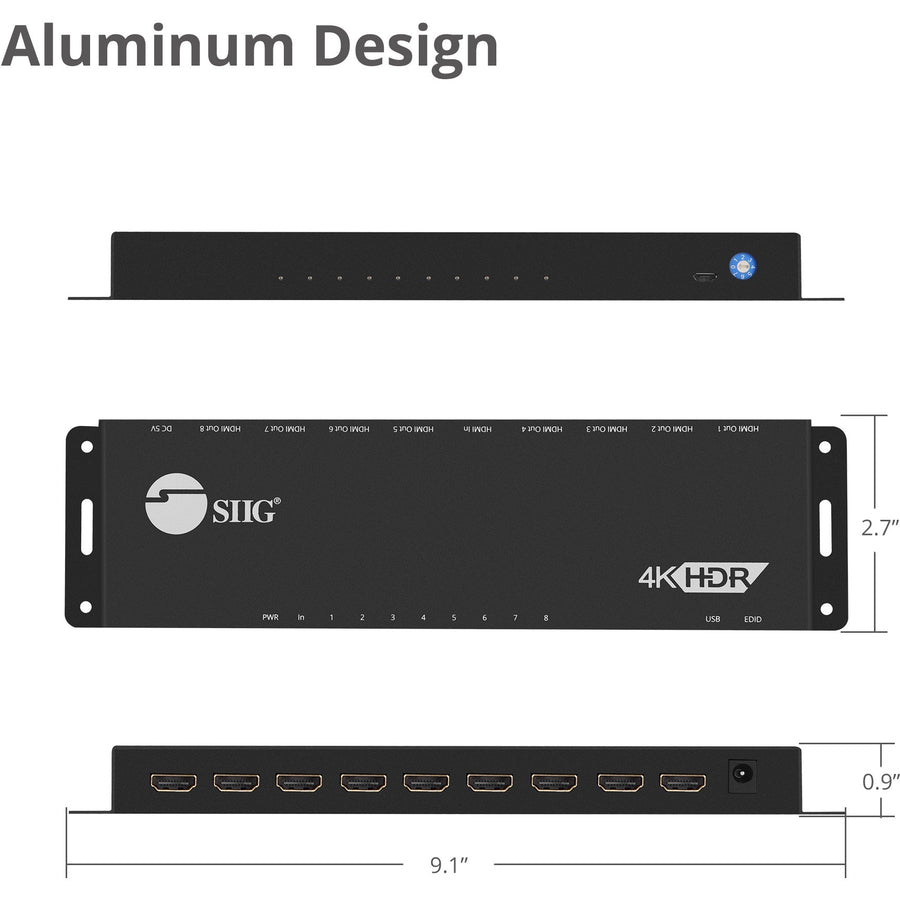

Length: 9.1"
Manufacturer: SIIG, Inc
Product Model: CE-H23D11-S1
Product Name: 1x8 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
Manufacturer Part Number: CE-H23D11-S1
Manufacturer Website Address: http://www.siig.com

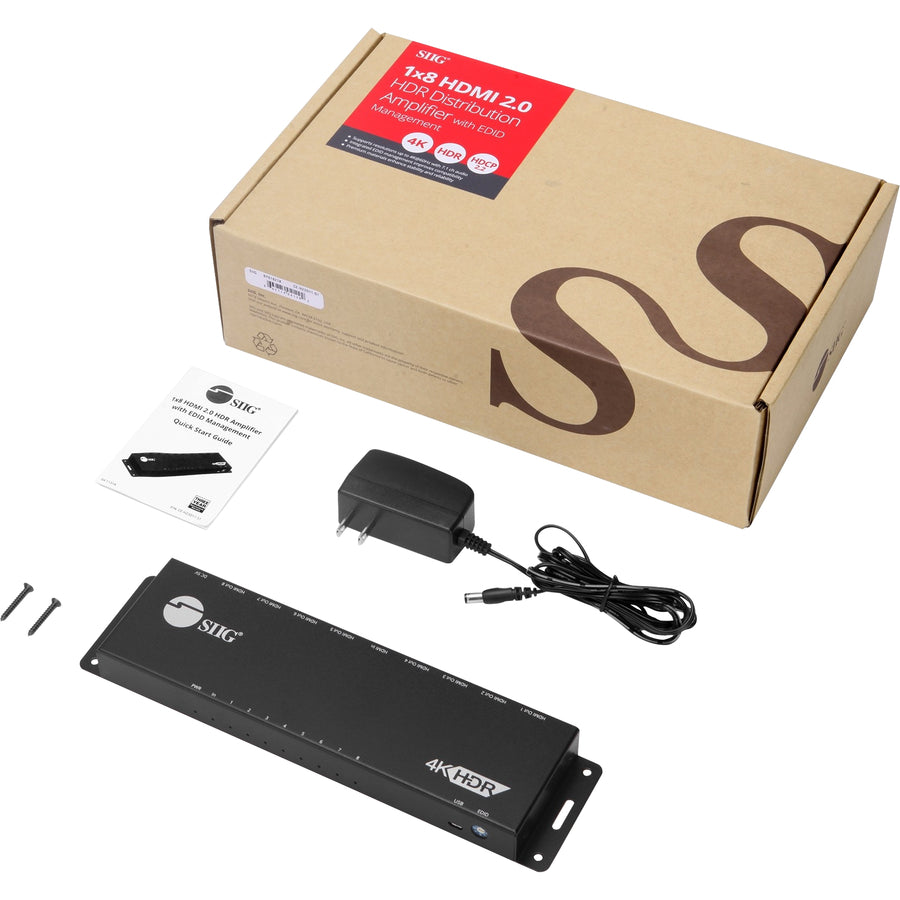

Package Contents:
- 1x8 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
- Power Adapter
- Screw Kit
- User Reference Guide
Limited Warranty: 3 Year
Weight (Approximate): 1.85 lb
