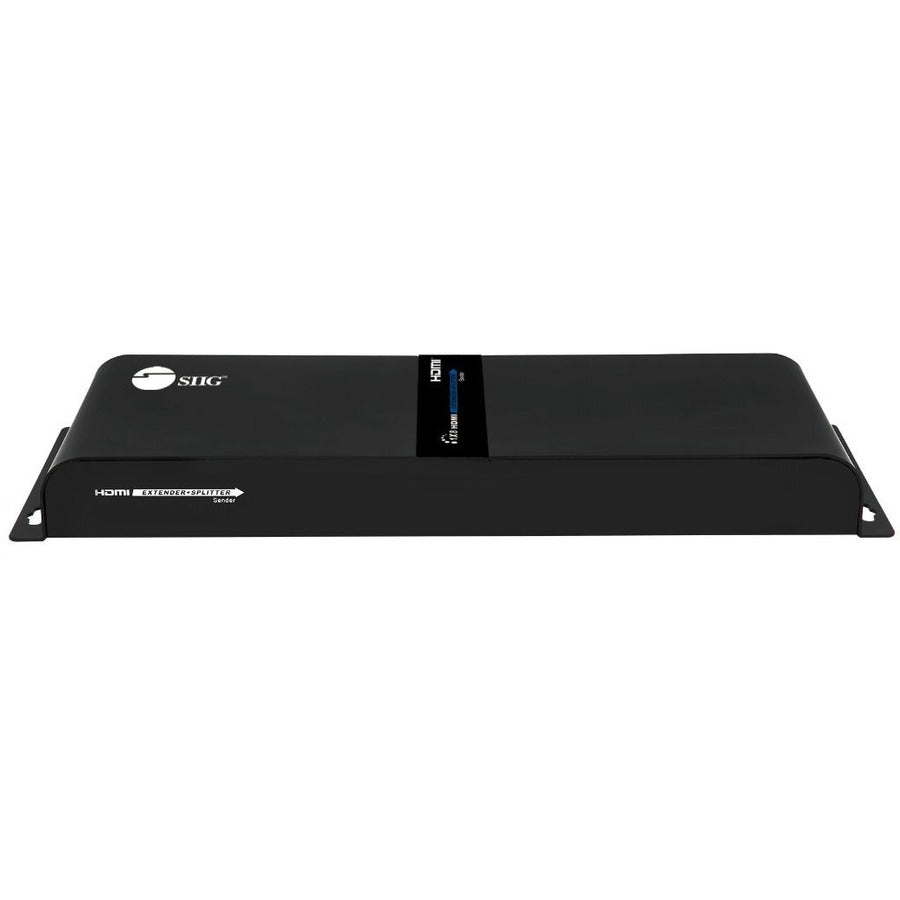

SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m

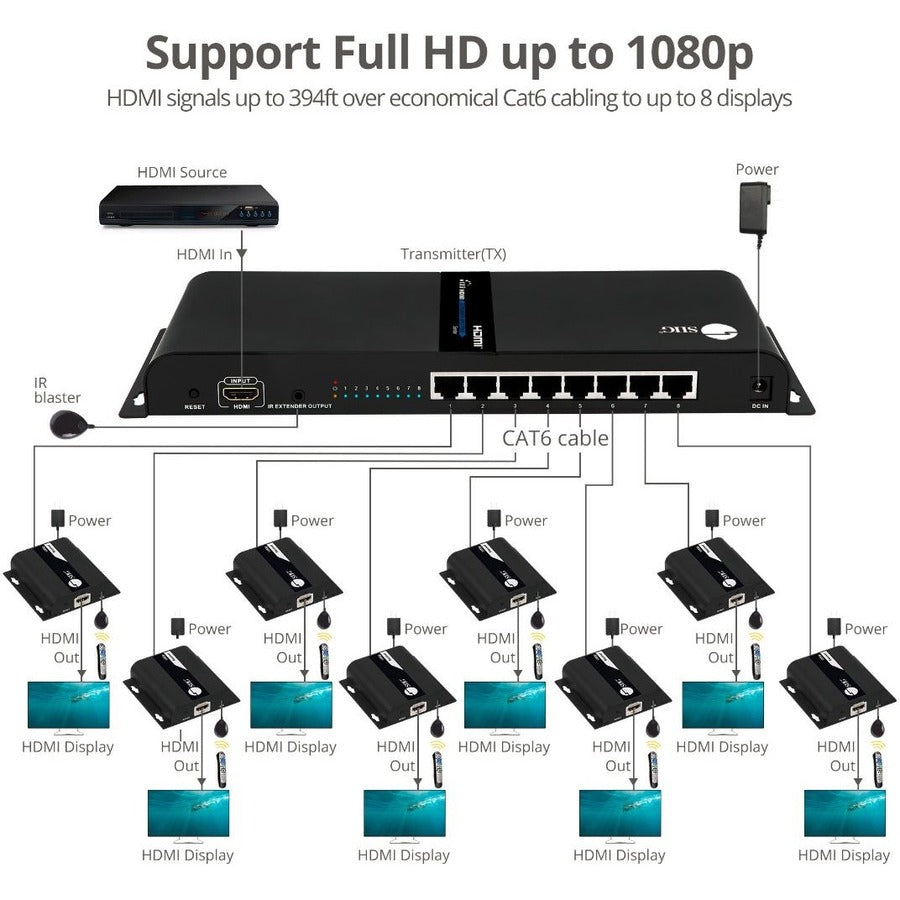

Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 8 displays, IR control, works with Gigabit network switches for more displays and extension
- With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1, are sold separately

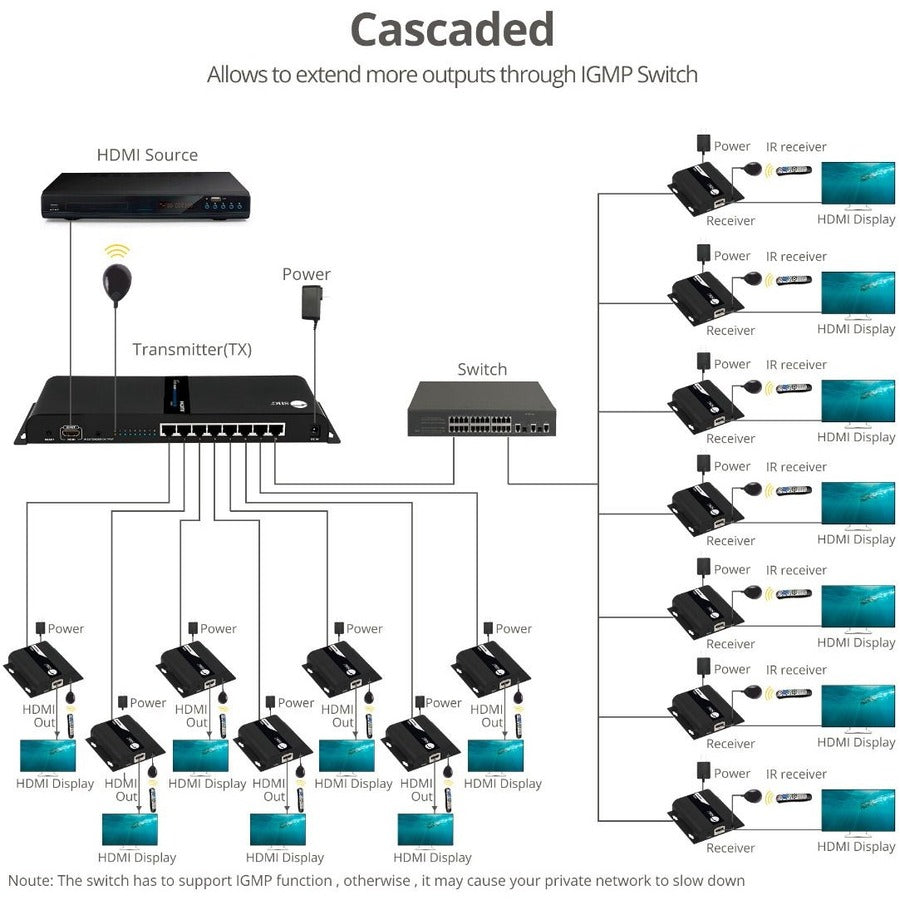

- Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
- Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
- IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
- High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
- Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1.18"
Transmitter Width: 4.37"
Transmitter Depth: 11.81"
Receiver Height: 0.93"
Receiver Width: 3.70"
Receiver Depth: 3.81"
Transmitter Weight (Approximate): 1.81 lb
Receiver Weight (Approximate): 5.28 oz
Brand Name: SIIG
Form Factor: Surface-mountable
Manufacturer: SIIG, Inc
Product Name: 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m
Manufacturer Part Number: CE-H26W11-S1
Manufacturer Website Address: http://www.siig.com

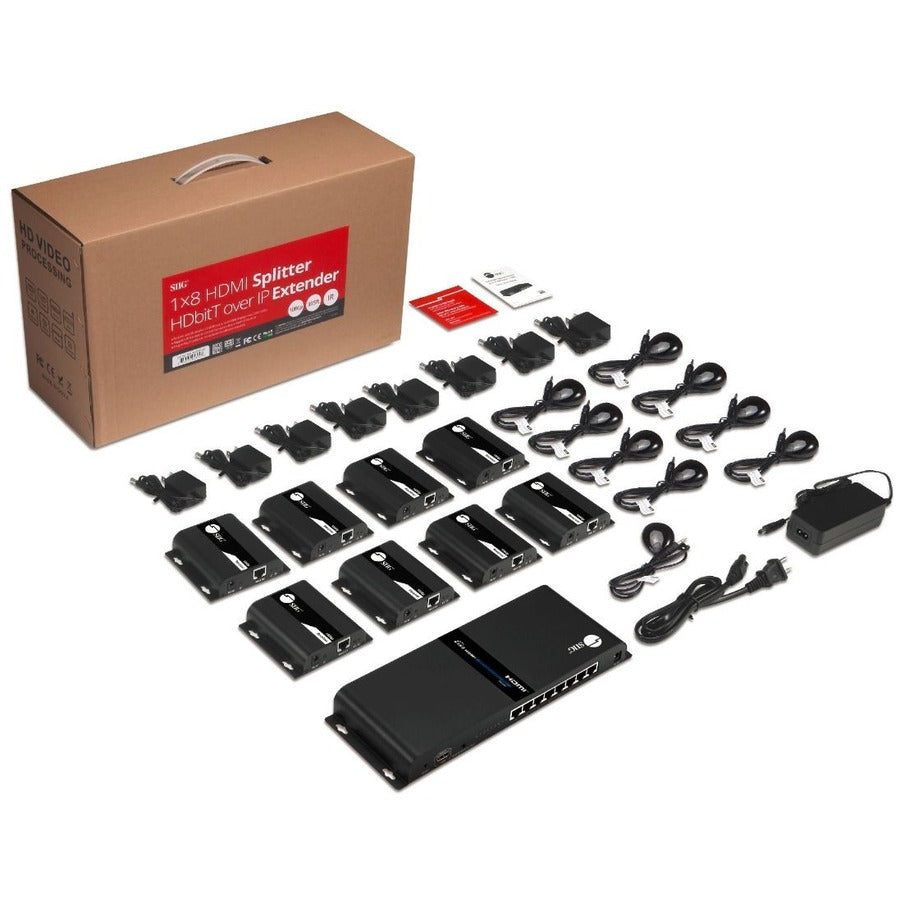

Package Contents:

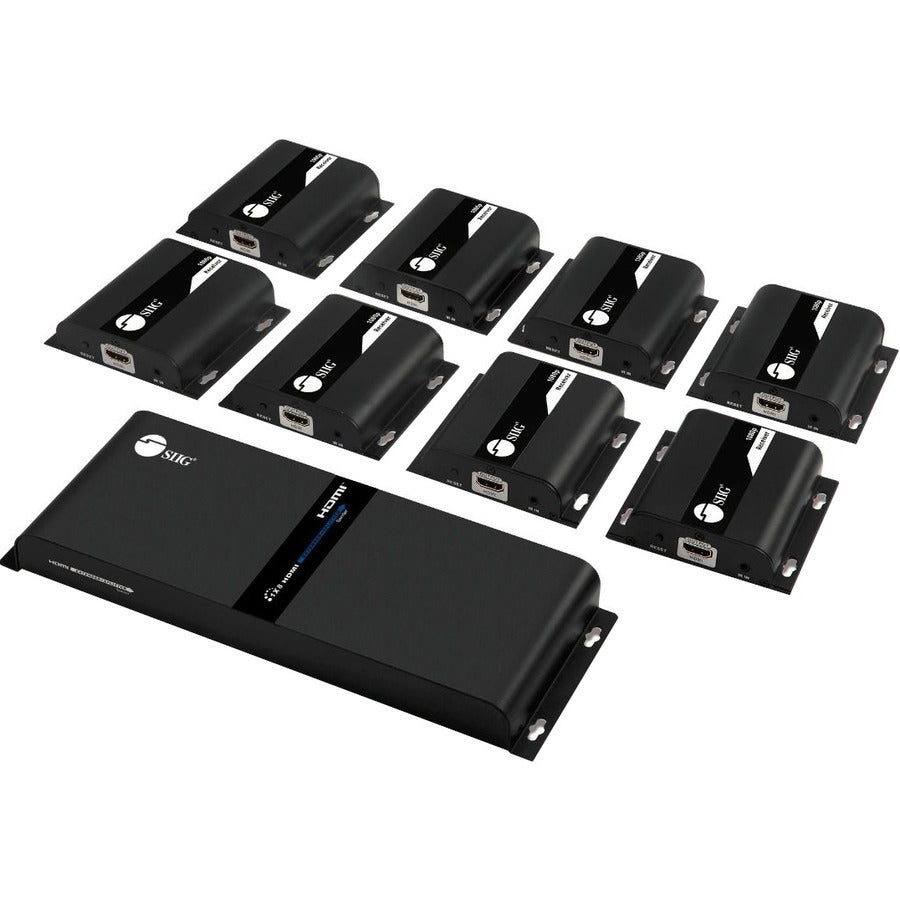

- 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m
- 9 x Power Adapters
- 1 x IR Blaster Cable
- 8 x IR Receiver Cable
- Quick Start Guide
Limited Warranty: 2 Year
