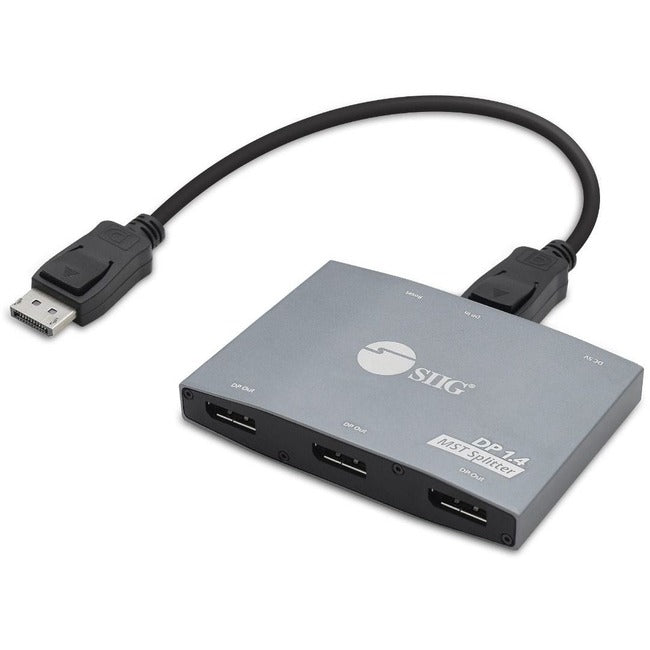

SIIG 1x3 DisplayPort 1.4 to DisplayPort MST Splitter
DP 1.4 MST Video Splitter Hub, Triple DP outputs, Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), 32.4Gbps, no driver required, Dual 4K@60Hz or Triple 4K (4K@30Hz or 1x 4K@60Hz + 2x 4K@30Hz), supports DP 1.2 with limited performance, Full Windows compatibility, Mac OS supports mirror only, TAA Compliant
Features
Splits a single DisplayPort 1.4 output source to three DisplayPort monitors with Mirror, Extended and Panoramic video wall display modes
High Performance
Offers a true 32.4Gbps (Max.) video bandwidth and supports 7.1-ch surround sound up to 192KHz sampling rate (can be used to transmit audio and video simultaneously)
Video Resolution
Supports HDCP 2.2 and Ultra HD video resolution up to a single 8K (7680x4320) @30Hz with HDR display or dual 4K (3840x2160) @60Hz with HDR displays or Triple 4K (3840x2160) @30Hz
Display Modes
Supports various supplication such as Mirror, Extended, and Panoramic Video Wall modes. Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
Multiple Connectivity Port

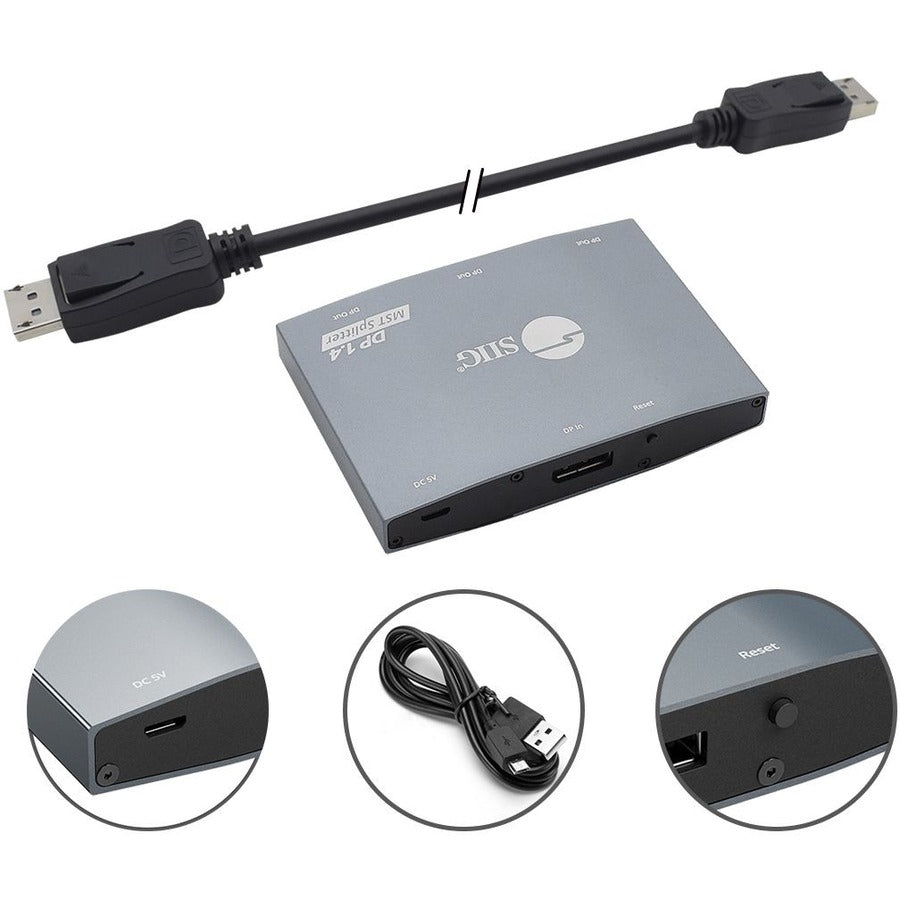

Comes with one 20-pin DisplayPort 1.4 input port (Host), three 20-pin DisplayPort 1.4 video output ports, one 5-pin Micro USB for power input (at least 5V/500mA), one reset button, and one DisplayPort 1.4 detachable cable
Maximum Compatibility
Compatible with DisplayPort 1.4 graphics card with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
Aluminum Housing Design
Premium aluminum housing decreases outer interference and provides optimal video quality. The reset button allows re-detection of all the displays if any of the displays are not detected
Applications
- Video editing
- Workstation
- Office
- Home office
- Conference room
- Educational facilities
- Small seminar
- Gaming
- Medical office
- Small seminar
- Medical office
- Hotel
- Testing lab
- Banking
- Service counter

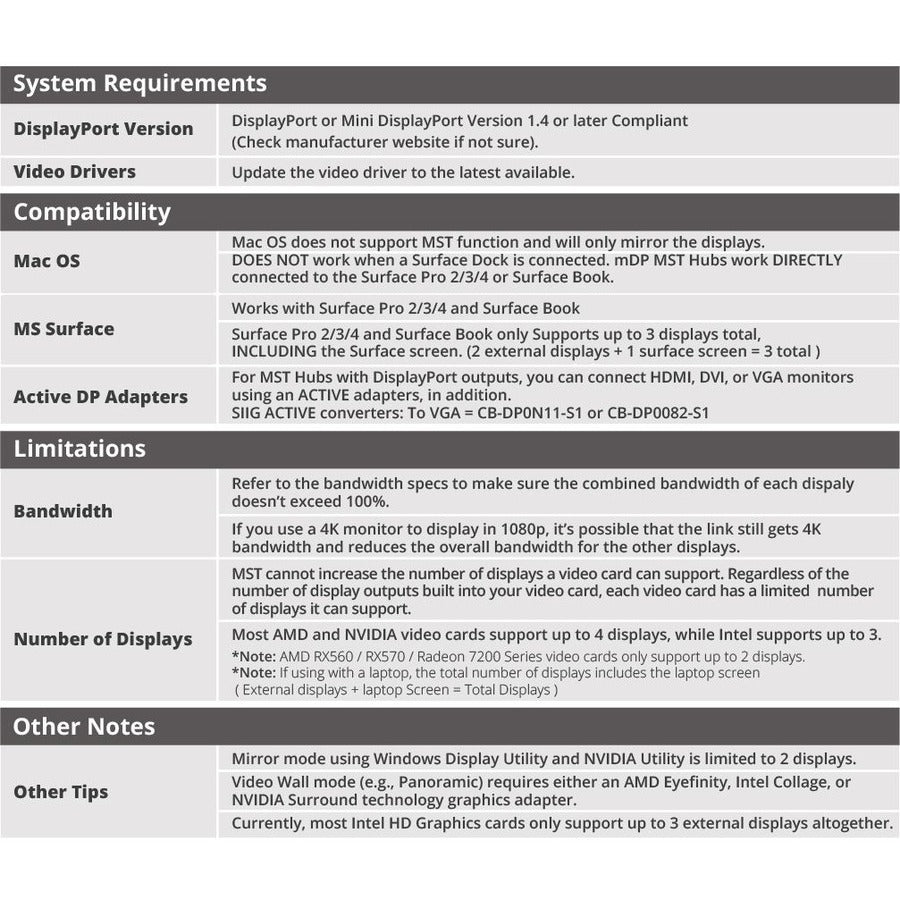

Need to Know Before Buying 1. Make sure your system requirement has a DisplayPort video output specification 1.4 and supports Multi Stream Transport (MST). If you are not sure, please check with the video card or system manufacture
- Premium aluminum housing decreases outer interference and provides optimal video quality. The built-in woven braided cable for enhanced durability
- Plug-n-play, trouble-free set up without complicated hardware or driver installation
- Reset button allows re-detection of all the displays if any of the displays are not detected
- Supports UHD video resolutions up to 8K (7680x4320@30Hz) and 7.1-ch surround audio
- Compatible with DisplayPort 1.4 MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
- Total Bandwidth 32.4Gbps (Max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, or three 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p etc.
- Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display

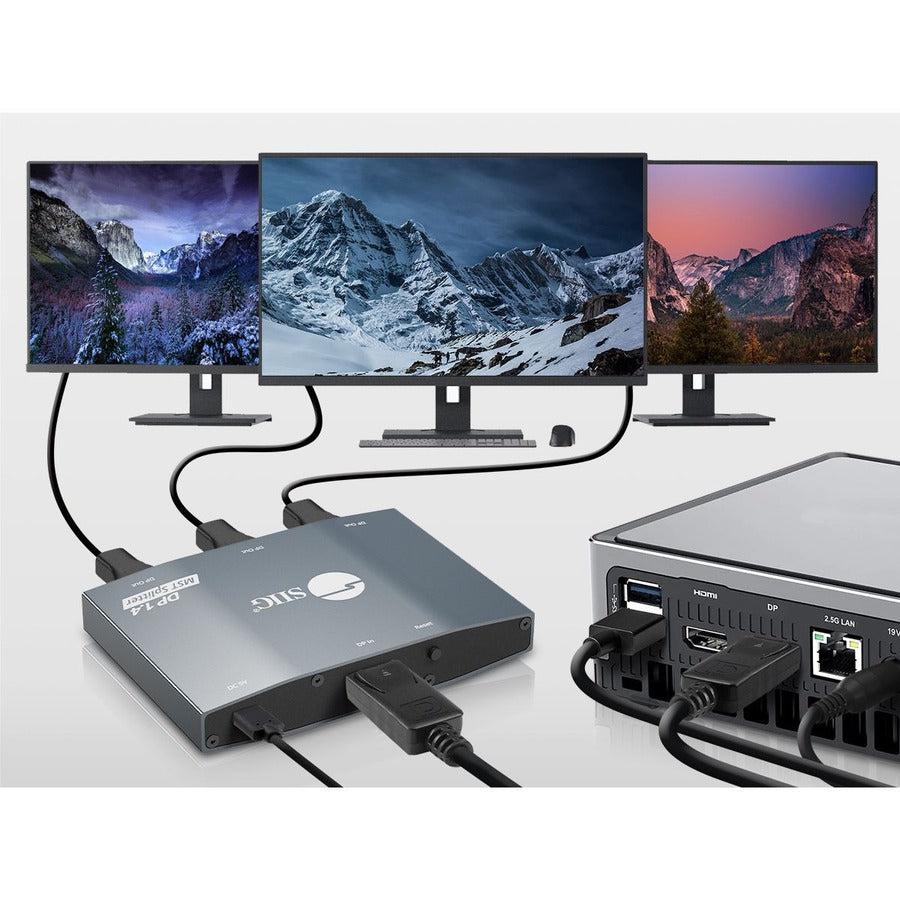

- Boost your productivity by connecting three DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technology
Product Type: Signal Splitter
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Taa Compliant: Yes
Product Material: Aluminum
Country Of Origin: Taiwan
Brand Name: SIIG
Manufacturer: SIIG, Inc
Product Name: 1x3 DisplayPort 1.4 to DisplayPort MST Splitter
Manufacturer Part Number: CE-DP0S11-S1
Manufacturer Website Address: http://www.siig.com

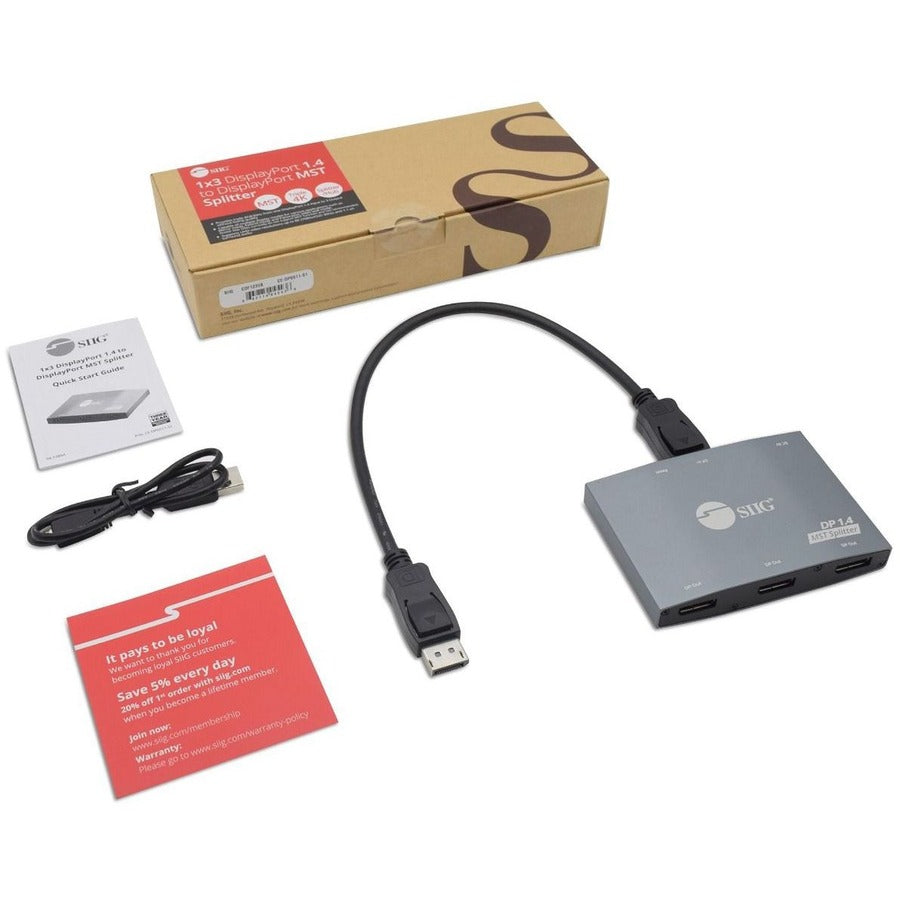

Package Contents:
- 1x3 DisplayPort 1.4 to DisplayPort MST Splitter
- 1x Micro-USB power cable, 1.64ft (50cm)
- 1x User reference guide
Limited Warranty: 3 Year
Weight (Approximate): 4.16 oz
