SIIG 1080p HDMI Over IP Extender / Matrix with IR - Kit

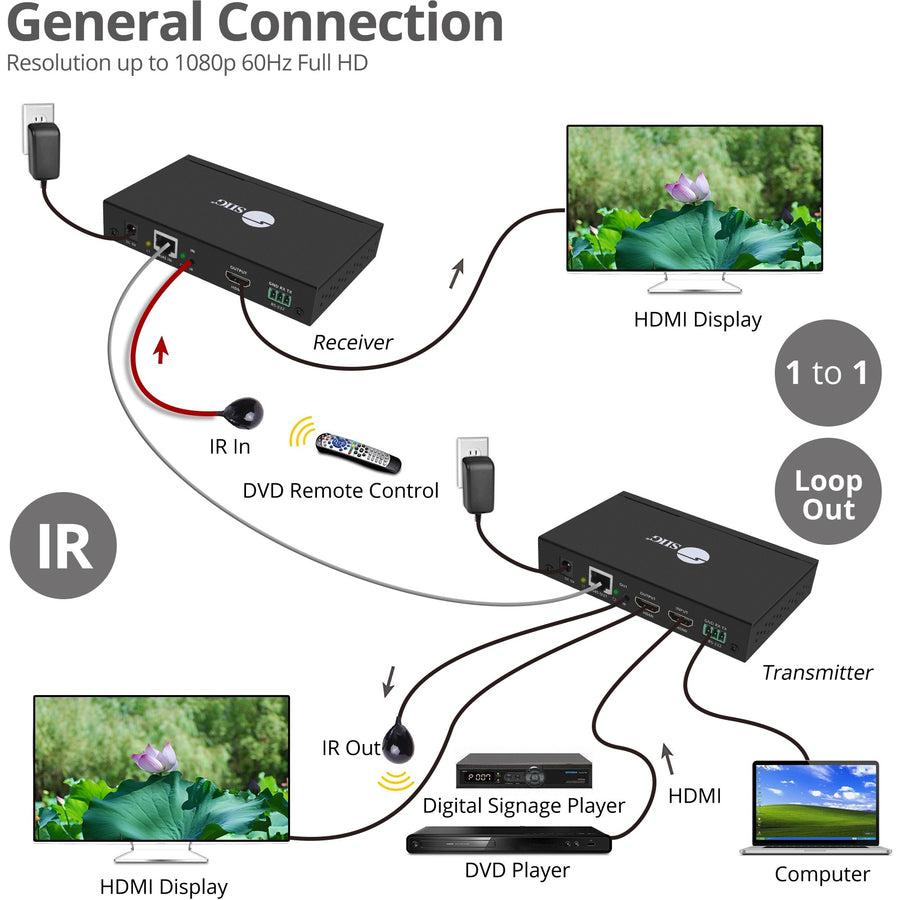

Extends high definition 1080p HDMI signals from a source device to a display device through economical CAT5e/6 cabling up to 120 meters using advanced HDBitT over IP technology
- Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters
- Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately
- Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
- Supports IR pass back function to control the source device from RX location
- Supports computer control software to select and switch between source devices (Matrix only)
- Supports HDbit-T protocol with H.264 compression over IP
- HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
- RS-232 pass-through connection to control RS-232 enabled devices at either direction
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.94"
Transmitter Width: 3.27"
Transmitter Depth: 5.24"
Transmitter Weight (Approximate): 1.20 lb
Product Color: Black
Brand Name: SIIG
Form Factor: Rack-mountable
Manufacturer: SIIG, Inc
Product Model: CE-H23A11-S1
Product Name: HDMI Over IP Extender / Matrix with IR - Kit
Manufacturer Part Number: CE-H23A11-S1
Manufacturer Website Address: http://www.siig.com
Package Contents:
- HDMI Over IP Extender / Matrix with IR - Kit
- 2 x Power Adapters
- IR Blaster Extension Cable and IR Receiver Extension Cable
- 4 x Mounting Ears
- 8 x Screw Kit
- Remote Control
- User Reference Guide
Limited Warranty: 2 Year
