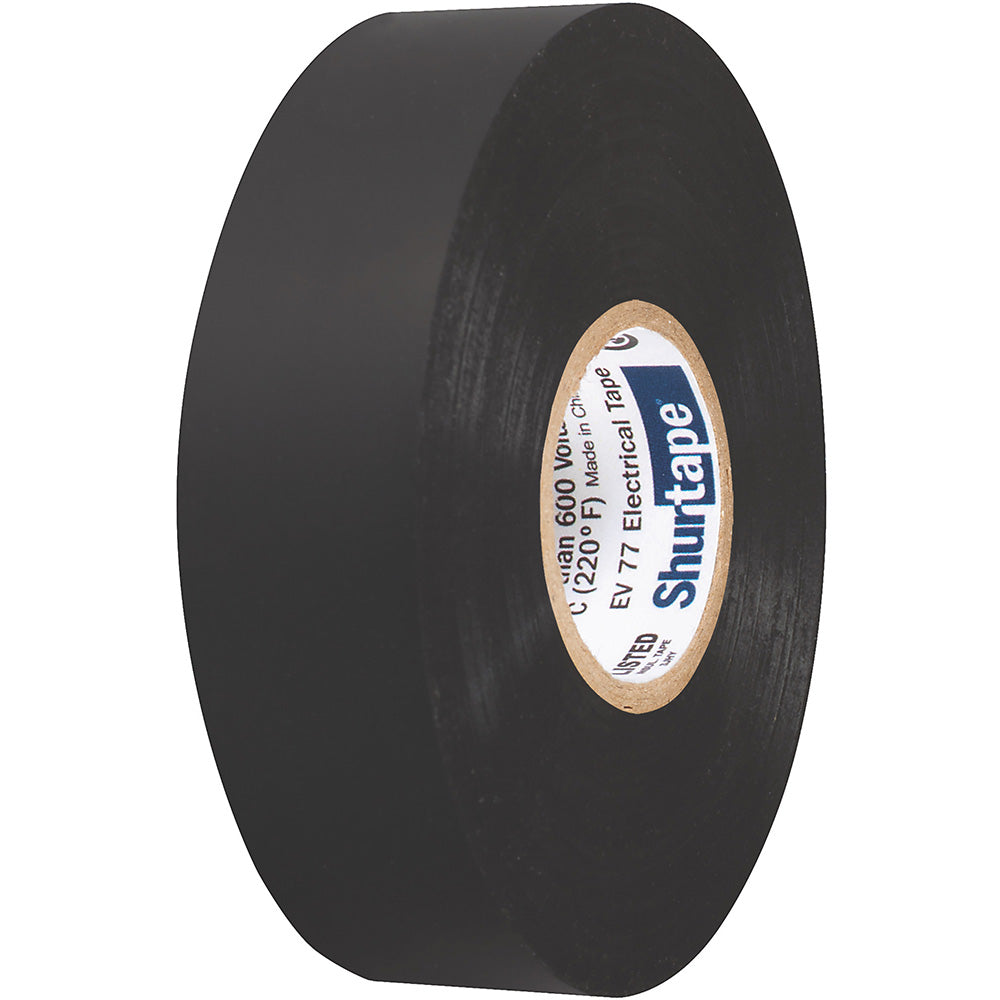

EV 077B Professional Grade Black Electrical Tape for Insulating & Splicing - 3/4" x 66' - 10-Pack
Professional grade, 7.0 mil, all-weather vinyl insulating tape used for electrical and mechanical protection in temperatures ranging from 0 F to 220 F. UL Listed and CSA Approved, EV 77B black electrical tape is lead-free, flame retardant, and is engineered with a polymeric backing construction, as well as a specialized method of bonding the adhesive to the vinyl backing, which allows the tape to be highly conformable and deliver a moisture-tight seal, even in extreme temperatures.
Features:
- 7.0 mil, professional-grade electrical tape
- High tensile strength
- High performance in a wide temperature range
- Resistant to UV, oils, acids, alkalies, corrosive chemicals, and water
- Flame retardant
Technical Specifications:
- Tape Width - 3/4"
- Roll Length - 66'
- Adhesive - Non-corrosive, rubber-based
- Adhesion to Stainless Steel - 28 oz/in width
- Dielectric Breakdown - 10,000V
- Dielectric Strength - 1,429V/mil
- Elongation - 300%
- Service Temperature Range - 0°F-220°F
- Tensile - 20 lbs/in width
- Thickness - 7.0 mils
- Color - Black
Manufacturer Part Number: 104706
