Sharp Pnv701 Digital Signage Display

Sharp PNV701 Digital Signage Display

Just imagine the power of a video wall built out of the 70" Class (69.5" diagonal) PN-V701 display. Huge, high-impact video walls can be created using fewer monitors with less bezel interruption across the entire on-screen image. And with upgraded colour calibration technology-SHARP Advanced UCCT-the PN-V701 display gives high-quality video wall solutions that are sure to attract a crowd.

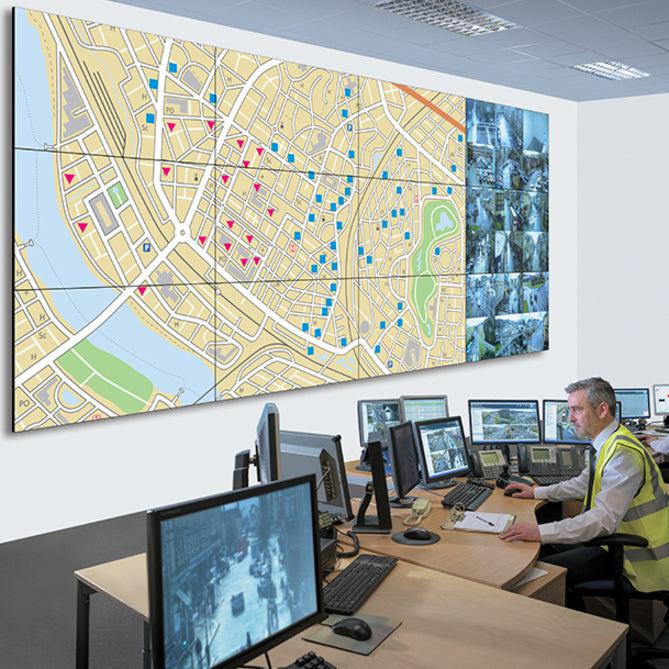

Video Walls that Draw a Crowd

The PN-V701 display was developed specifically for use in multi-monitor installations in either portrait or landscape orientation. Thanks to its combined bezel width of just 4.4 mm, large images on a video wall appear natural and almost seamless. The grand scale of the 70" Class (69.5" diagonal) monitor allows you to build video walls with fewer monitors and fewer bezels, which serves to minimize the non-displayed area. Whether in an airport, railway station, shopping mall, or other public spaces, the PN-V701 display expands the creative possibilities of visual communication.

Excellent Image Quality

The PN-V701 display incorporates Sharp's UV2A technology to ensure highly efficient use of light from the backlight and prevent light leakage, resulting in truly bright whites and extremely deep blacks. The LCD panel also boasts 1,920 (H) x 1,080 (V)-pixel full HD resolution, making everything from fine text to intricate graphics stunningly crisp and clear. A brightness of 700 cd/m2 supports the PN-V701 display in its digital signage duties. Four PN-V701 display monitors set up in a 2 x 2 configuration, for example, can beautifully render every single pixel of 4K Ultra HD 3,840 (H) x 2,160 (V)-pixel content in a form equivalent to a huge 140" Class (139" diagonal) monitor. What's more, the PN-V701 display employs SHARP Advanced UCCT (Uniform Colour Calibration Technology) to achieve brilliant uniformity of colour and brightness across the entire video wall.

Inverse Scan Function

When high-speed video is played on a video wall composed of multiple monitors, slight image misalignments between vertically placed monitors can occur. As a countermeasure, the Inverse Scan function comes standard with the PN-V701 display. This corrects image misalignments by alternating the scanning direction between vertically adjacent monitors, creating smooth and natural images on a large video wall.

Control Kit (PN-ZR02)

When one of the monitors in a video wall is fitted with a remote control sensor box, all of the monitors can be conveniently operated through one remote control unit.

• 70" Class (69.5" diagonal) Screen Size


• 1,920 x 1,080 Resolution


• Full Array LED Backlight


• Less bezel interruption across the entire on-screen image


• Advanced Uniform Colour Calibration Technology


• Inverse Scan Function


• Landscape and Portrait Mode Compatible


• 24/7 Operation

Product Type: Digital Signage Display
Brand Name: Sharp
Manufacturer: Sharp Electronics
Product Model: PNV701
Product Name: PNV701 Digital Signage Display
Manufacturer Part Number: PNV701
Manufacturer Website Address: http://www.sharpusa.com
Package Contents:

• PNV701 Digital Signage Display
• AC Power Cord
• 6 x Cable Clamp
• CD-ROM
• Set-up Manual
• 2 x Sticker (for Concealing Mounting Hole of Remote Control Sensor Box)
