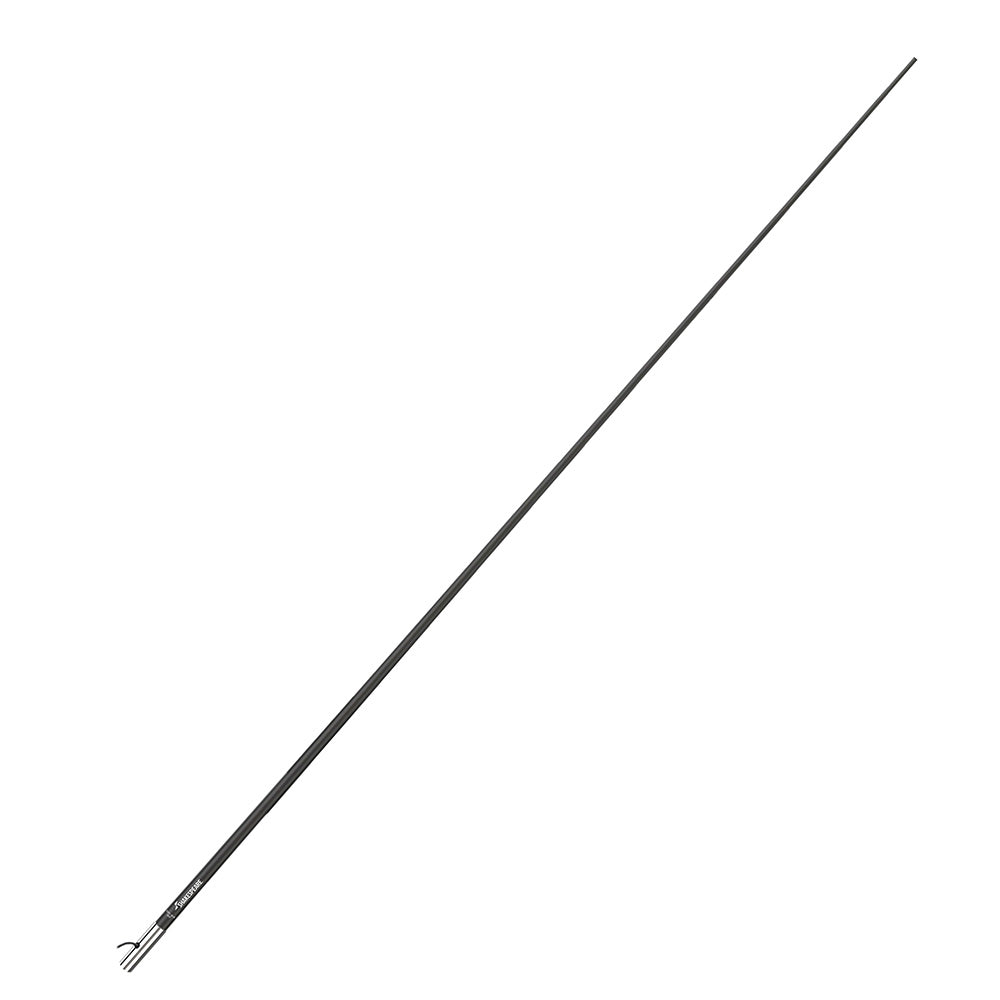

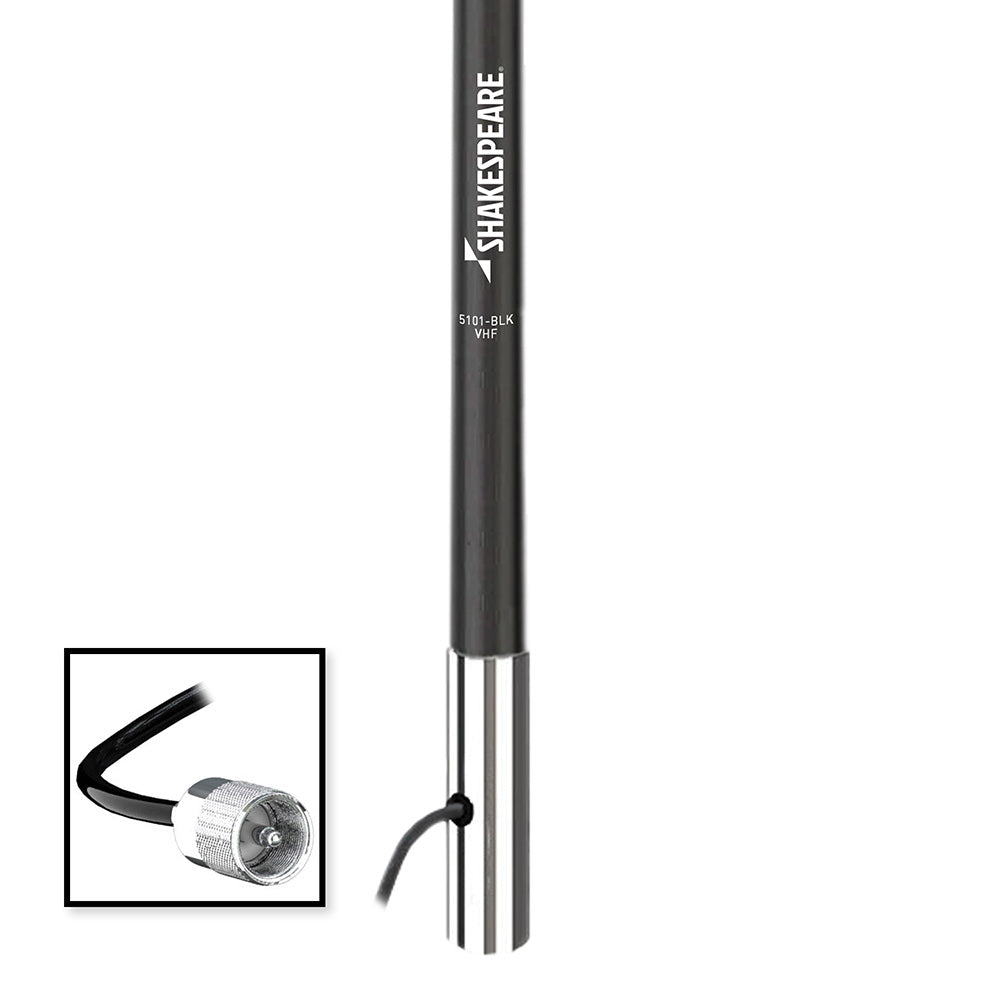

VHF 8' 5101 Black Antenna Classic with 15' RG-58 Cable
A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that won't turn yellow in the sun. This antenna delivers not only performance but superb value.
Features:
- Brass and copper elements
- Chrome-plated brass ferrule with standard 1"-14 thread
- Includes 15' RG-58 cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
- One section
- Shakespeare Limited Warranty: 2 years
Specifications:
- Frequency: VHF Marine Band
- Bandwidth: (within 2.0 1 SWR): 5 MHz
- SWR: 1.5:1 at 156.8 MHz
- Impedance (Ohms): 50
- Gain: 6 dB
- Max. Input (Watts): 50
- DC Ground: YES - however, the antenna will read "open circuit" when tested with ohmeter.
- Termination: 15' RG-58 cable
- Height (feet): 8'
- Polarization: Vertical
- Radiation pattern: Omni - directional
Antenna Band = VHF | Color = Black | Construction = Fiberglass | Ferrule Type = Chrome Plated | Length (Inches) = 96"
Manufacturer Part Number: 5101-BLK
